Target Components

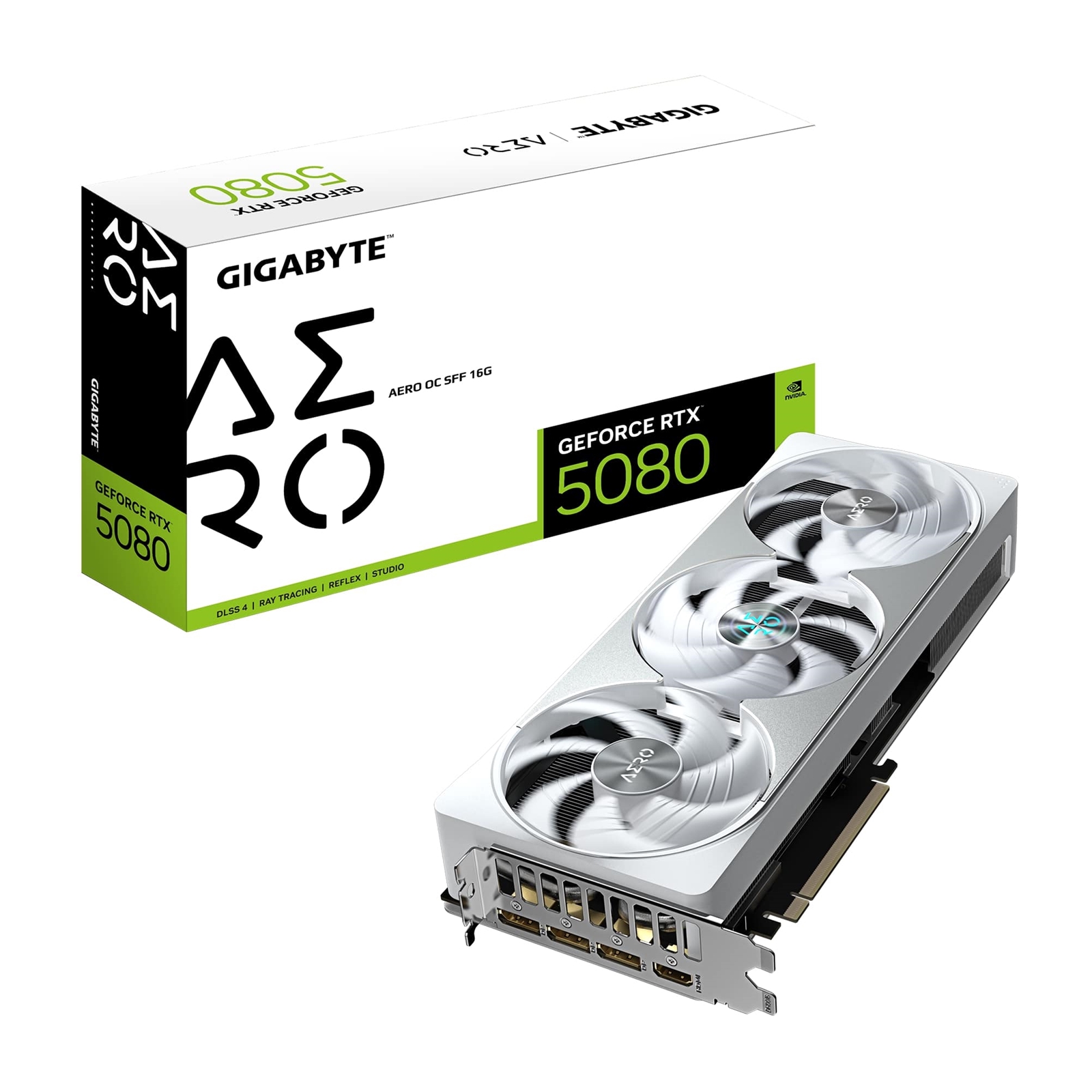

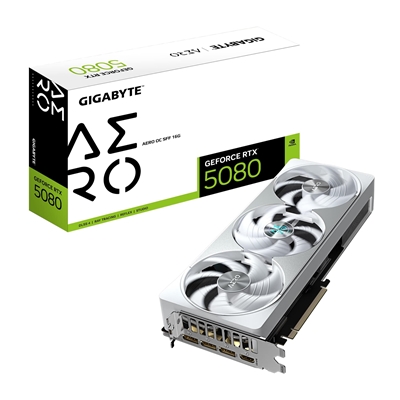

Gigabyte NVIDIA GeForce RTX 5080 AERO OC SFF 16G Graphics Card, 16GB GDDR7, 10752 CUDA Cores, 2730 MHz Core Clock, Triple Fan, White, RGB, 3x DisplayPorts / 1x HDMI Port

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5080
Form Factor2x ATX
Memory16GB
Fans3
RGBYes
/productImages/80/GRGIG-N5080AOC.JPG
/productImages/80/206514.JPG
/productImages/80/206515.JPG
/productImages/80/206516.JPG
/productImages/80/206517.JPG
/productImages/80/206518.JPG
/productImages/80/206519.JPG
/productImages/80/206520.JPG
/productImages/80/206521.JPG
Manufacturer : GIGABYTE
EAN : 4719331355555
Manufacturer Part Code : GV-N5080AERO OC-16GD
Weight : 1.9 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5080
Form Factor2x ATX
Memory16GB
Fans3
RGBYes
Manufacturer :
GIGABYTE

EAN :
4719331355555

Manufacturer Part Code :
GV-N5080AERO OC-16GD

Weight :
1.9 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

GeForce RTX 5080 AERO OC SFF 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5080
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

SPECIFICATION

Graphics Processing
GeForce RTX 5080

Core Clock
2730 MHz (Reference: 2617 MHz)

CUDA Cores
10752

Memory Clock
30 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=304 W=126 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
850W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
Warranty notice
1 x 12V-2x6 to 3 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns
