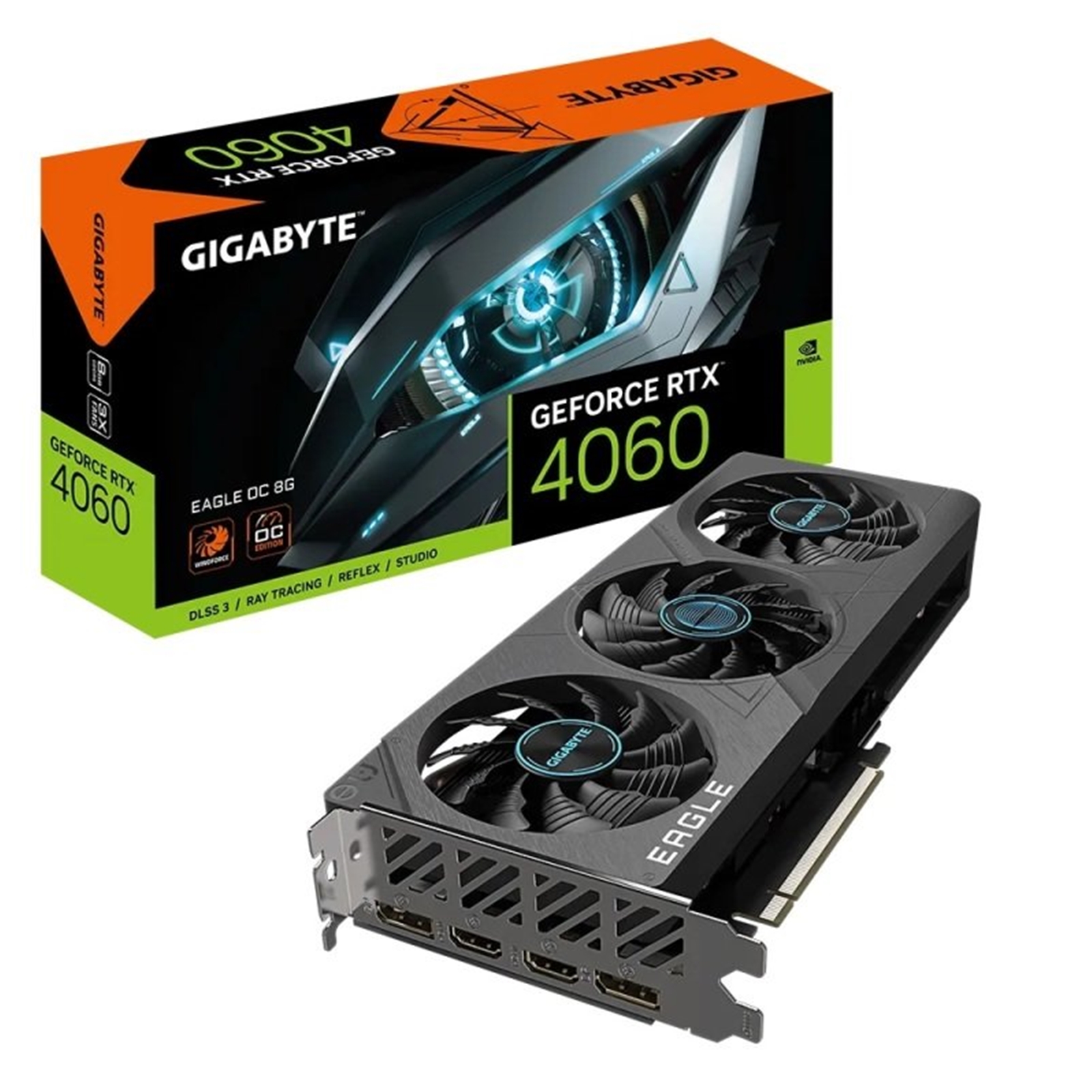

Gigabyte NVIDIA GeForce RTX 4060 EAGLE OC 8G Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2505 MHz Core Clock, Triple Fan, 2x DisplayPorts / 2x HDMI Ports

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX4060
Form Factor2x ATX
Memory8GB
Fans3
RGBNo
/productImages/80/GRGIG-N4060EAOC.JPG
/productImages/80/184711.JPG
/productImages/80/184712.JPG
/productImages/80/184713.JPG
Manufacturer : GIGABYTE
EAN : 4719331313708
Manufacturer Part Code : GV-N4060EAGLE OC-8GD
Weight : 0.95 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX4060
Form Factor2x ATX
Memory8GB
Fans3
RGBNo
Manufacturer :
GIGABYTE

EAN :
4719331313708

Manufacturer Part Code :
GV-N4060EAGLE OC-8GD

Weight :
0.95 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.

THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.

WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE - PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.


Key Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Dual BIOS
Protection back plate

Specifications

Core Clock
2505 MHz (Reference card: 2460 MHz)

CUDA Cores
3072

Memory Clock
17 Gbps

Memory Size
8 GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=272 W=115 H=40 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin x 1

Output
DisplayPort 1.4a x 2
HDMI 2.1a x 2

Accessories
Quick guide
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Full-Height/Full-Length (FH/FL)
Product colour Black
Number of fans 3 fan(s)
Cooling type Active
ENERGY MANAGEMENT
Minimum system power supply 450 W
Supplementary power connectors 1x 8-pin
MEMORY
Graphics card memory type GDDR6
Data transfer rate 17 Gbit/s
Memory bus 128 bit
Discrete graphics card memory 8 GB
PACKAGING CONTENT
Quick installation guide Yes
PACKAGING DATA
Package type Box
PERFORMANCE
TV tuner integrated No
DirectX version 12 Ultimate
OpenGL version 4.6
Dual Link DVI No
HDCP Yes
NVIDIA G-SYNC Yes
AMD FreeSync No
PORTS & INTERFACES
Interface type PCI Express 4.0
HDMI ports quantity 2
HDMI version 2.1a
DisplayPorts quantity 2
DisplayPort version 1.4a
PROCESSOR
Processor frequency 2505 MHz
Graphics processor GeForce RTX 4060
Maximum resolution 7680 x 4320 pixels
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA Yes
CUDA cores 3072
Graphics processor family NVIDIA
Processor boost clock speed 2460 MHz
WEIGHT & DIMENSIONS
Height 115 mm
Width 115 mm
Depth 40 mm
Length 272 mm
