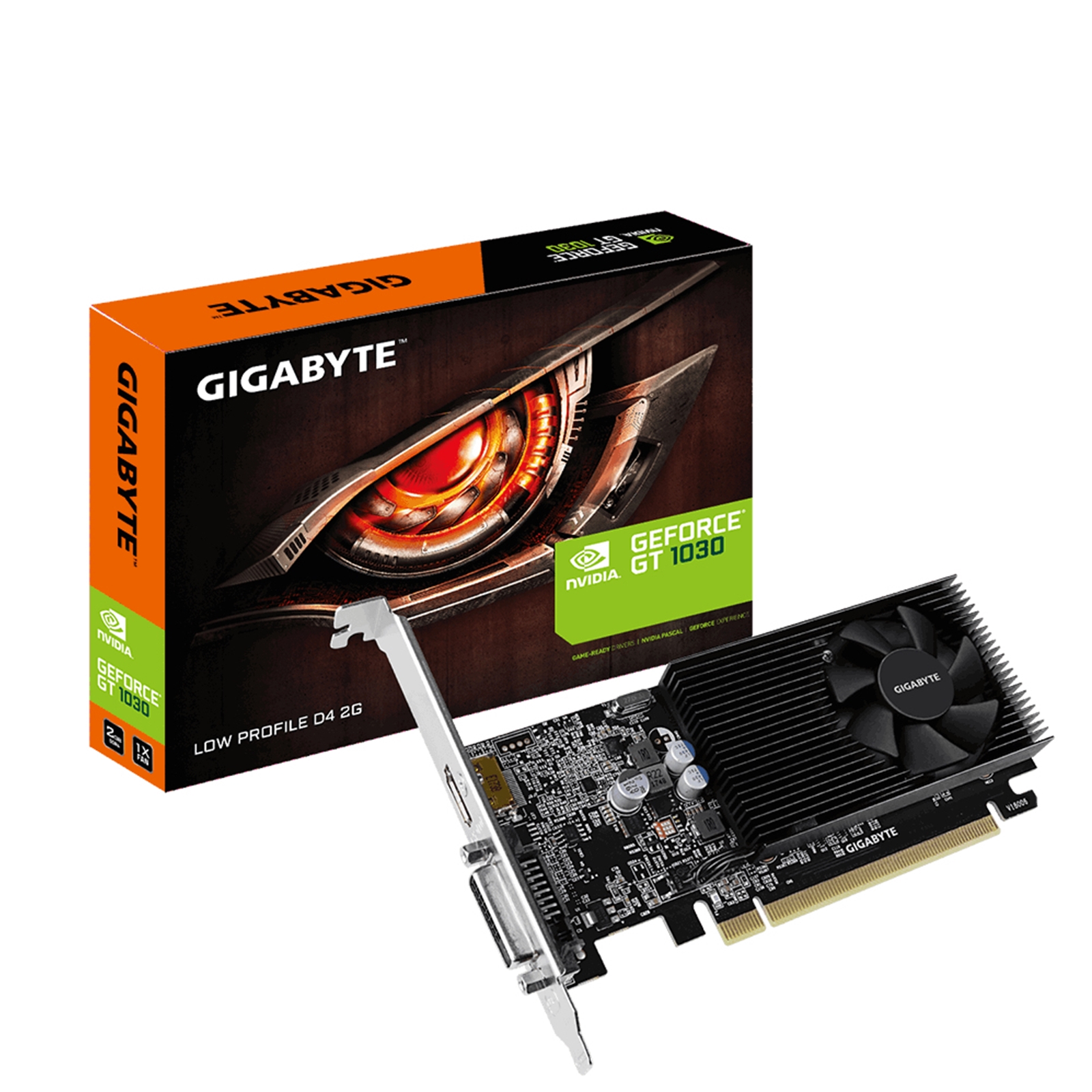

Gigabyte Nvidia GeForce GT 1030 2GB DDR4 Low Profile Single Fan Graphics Card

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesGeForce GT
ChipsetGT1030
Form Factor1x ATX (Low Profile Option)
Memory2GB
Fans1
RGBNo
Manufacturer : GIGABYTE
EAN : 4719331303280
Manufacturer Part Code : GV-N1030D4-2GL
Weight : 0.7 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesGeForce GT
ChipsetGT1030
Form Factor1x ATX (Low Profile Option)
Memory2GB
Fans1
RGBNo
Manufacturer :
GIGABYTE

EAN :
4719331303280

Manufacturer Part Code :
GV-N1030D4-2GL

Weight :
0.7 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

- Powered by GeForce GT 1030
- Integrated with 2GB DDR4 64bit memory
- Low profile design with 150 mm card length
- One-click overclocking via AORUS Graphics Engine

GPU
GeForce GT 1030

Interface
PCI-E 3.0 x 16

Processor Technology
N/A

Graphics Core Clock
Boost: 1417 MHz / Base: 1177 MHz in OC Mode
Boost: 1379 MHz / Base: 1151 MHz in Gaming Mode

Memory Clock
2100 MHz

Memory Amount
2GB

Memory Type
DDR4

Memory Interface
64-bit

Max Resolution
Digital: 4096x2160

SLI/CrossFire Ready
No

I/O Connections
1 x DVI-D
1 x HDMI-2.0b (Max Resolution: 4096x2160 @60Hz)

Cooling System
Single Fan Cooling System

Power Connection
None

Minimum Power Requirements
300W

Dimensions (W x H x D)
68.9 x 14.7 x 149.9 mm

Accessories Included
1 x HDMI + DVI low profile bracket

Additional Features
CUDA Cores: 384
Multi-View: 2
Form Factor: Low Profile
DirectX: 12
OpenGL: 4.5
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Half-Height/Half-Length (HH/HL)
Number of slots 1
Product colour Black
Number of fans 1 fan(s)
Cooling type Active
ENERGY MANAGEMENT
Minimum system power supply 300 W
LOGISTICS DATA
Harmonized System (HS) code 84733020
MEMORY
Graphics card memory type GDDR4
Memory bus 64 bit
Memory clock speed 2100 MHz
Discrete graphics card memory 2 GB
PACKAGING CONTENT
Manual Yes
Drivers included Yes
PACKAGING DATA
Manual Yes
Package type Box
Drivers included Yes
PERFORMANCE
TV tuner integrated No
Full HD Yes
DirectX version 12.0
OpenGL version 4.5
Shader model version 5.1
Dual Link DVI Yes
HDCP Yes
PhysX Yes
PORTS & INTERFACES
Interface type PCI Express x16 3.0
DVI-D ports quantity 1
HDMI ports quantity 1
HDMI version 2.0b
PROCESSOR
Processor frequency 1151 MHz
Graphics processor GeForce GT 1030
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
Maximum displays per videocard 2
CUDA Yes
Graphics processor family NVIDIA
Processor boost clock speed 1379 MHz
FireStream No
Processor frequency (OC mode) 1177 MHz
Processor boost clock speed (OC mode) 1417 MHz
SYSTEM REQUIREMENTS
Windows operating systems supported Yes
Linux operating systems supported Yes
TECHNICAL DETAILS
Harmonized System (HS) code 84733020
WEIGHT & DIMENSIONS
Height 68.9 mm
Width 68.9 mm
Depth 14.7 mm
Length 149.9 mm
