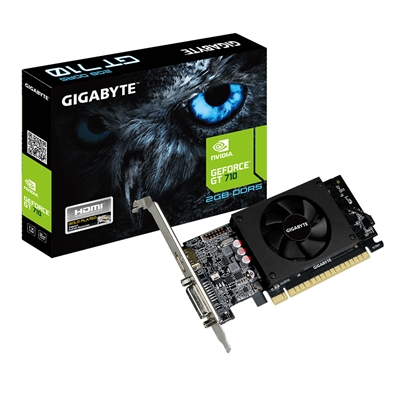

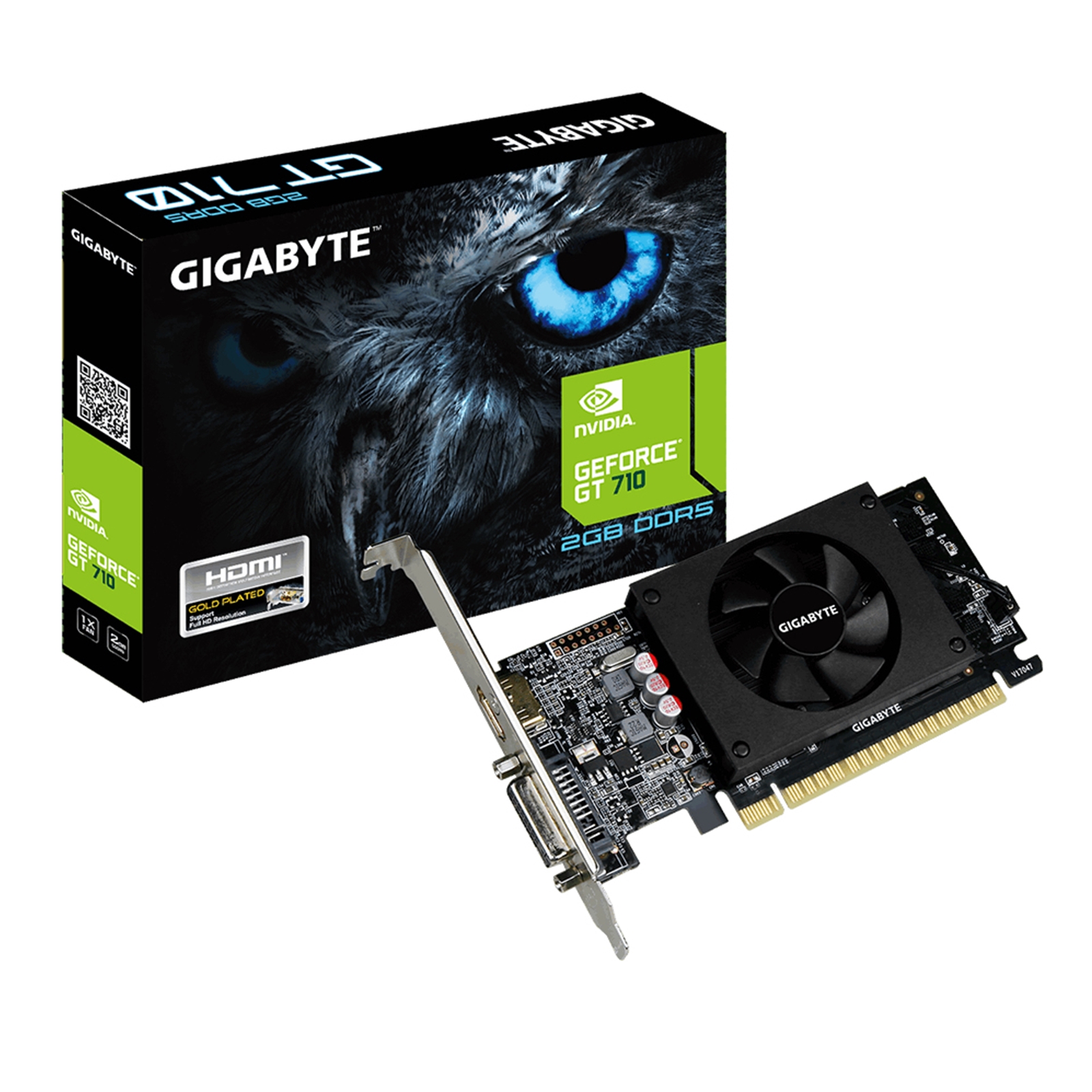

Gigabyte NVIDIA GeForce GT 710 Low Profile 2G Graphics Card, 2GB GDDR5, 954 MHz Core Clock, Single Fan Low Profile, 1x DVI-D / 1x HDMI Port

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesGeForce GT
ChipsetGT710
Form Factor1x ATX (Low Profile Option)
Memory2GB
Fans1
RGBNo
/productImages/80/GRGIG-GVN710D52G.JPG
/productImages/80/112555.JPG
/productImages/80/112556.JPG
/productImages/80/112557.JPG
Manufacturer : GIGABYTE
EAN : 4719331301606
Manufacturer Part Code : GV-N710D5-2GL
Weight : 0.6 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesGeForce GT
ChipsetGT710
Form Factor1x ATX (Low Profile Option)
Memory2GB
Fans1
RGBNo
Manufacturer :
GIGABYTE

EAN :
4719331301606

Manufacturer Part Code :
GV-N710D5-2GL

Weight :
0.6 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.

THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.

WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE - PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.


Features
Powered by NVIDIA GeForce GT 710 GPU
Integrated with 2GB GDDR5 64bit memory interface
Core clock 954MHz
Features Dual-link DVI-I / HDMI
Support PCI Express 2.0 x8 bus interface
Recommended system power supply requirement: 300W

Low profile design allows space-saving installation and easier for building your compact PC system.

Ultra Cooling - Low RDS(on) MOSFET Design
Low Power Loss - Ferrite Core Choke Design
Longer Life - All-Solid Capacitor Design

Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections

Brand-new intuitive user interface helps you easily modify important settings and directly update driver and BIOS. Clock speeds, voltage, fan performance, and OSD setting can be monitored and tuned in real-time according to your own preference.

GPU
GeForce GT 710

Interface
PCI-E 3.0 x 16

Processor Technology
28nm

Graphics Core Clock
954MHz

Memory Clock
5010MHz

Memory Amount
2GB

Memory Type
GDDR5

Memory Interface
64-bit

Max Resolution
4096x2160

SLI/CrossFire Ready
N/A

I/O Connections
1 x DVI-I Dual-Link
1 x HDMI

Cooling System
Single Fan Cooling System

Power Connection
N/A

Minimum Power Requirements
300W

Dimensions (W x H x D)
N/A

Accessories Included
N/A

Additional Features
NVIDIA GEFORCE 3D VISION READY
PhysX by NVIDIA
Adaptive V-Sync
HDMI
Multi-View: 3
Card Size: TBD
PCB Form: Low Profile
DirectX: 12
OpenGL: 4.5
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Half-Height/Half-Length (HH/HL)
Number of slots 1
Product colour Black
Form factor Half-Height/Half-Length (HH/HL)
Number of slots 1
Number of fans 1 fan(s)
Colour of product Black
Cooling type Active
Number of fans 1 fan(s)
Cooling type active
ENERGY MANAGEMENT
Minimum system power supply 300 W
Minimum system power supply 300 W
MEMORY
Graphics card memory type GDDR5
Memory bus 64 bit
Memory clock speed 5010 MHz
Graphics adapter memory type GDDR5
Memory bus 64 bit
Discrete graphics card memory 2 GB
Memory clock speed 5010 MHz
Discrete graphics adapter memory 2 GB
PERFORMANCE
Full HD Yes
DirectX version 12.0
OpenGL version 4.5
Dual Link DVI Yes
PhysX Yes
Full HD Y
DirectX version 12.0
OpenGL version 4.5
Dual Link DVI Y
PhysX Y
PORTS & INTERFACES
Interface type PCI Express x8 2.0
DVI-I ports quantity 1
Interface type PCI Express x8 2.0
HDMI ports quantity 1
DVI-I ports quantity 1
HDMI ports quantity 1
PROCESSOR
Processor frequency 954 MHz
Processor clock speed 954 MHz
Graphics processor GeForce GT 710
Maximum resolution 4096 x 2160 pixels
Graphics processor GeForce GT 710
Maximum resolution 4096 x 2160 pixels
Maximum digital resolution 4096 x 2160 pixels
Maximum displays per videocard 3
Graphics processor family NVIDIA
Maximum digital resolution 4096 x 2160 pixels
Maximum displays per videocard 3
Graphics processor family NVIDIA
SYSTEM REQUIREMENTS
Minimum system power supply 300 W
TECHNICAL DETAILS
Form factor Half-Height/Half-Length (HH/HL)
Colour of product Black
Cooling type active
VIDEO
Full HD Y
DirectX version 12.0
OpenGL version 4.5
Dual Link DVI Y
PhysX Y
WEIGHT & DIMENSIONS
Number of slots 1
