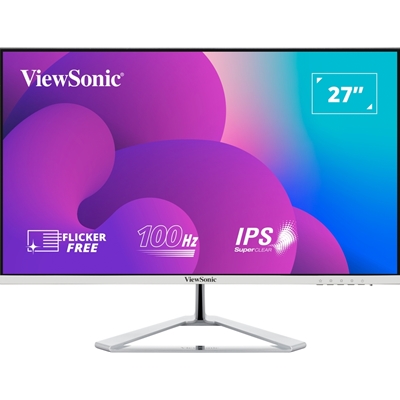

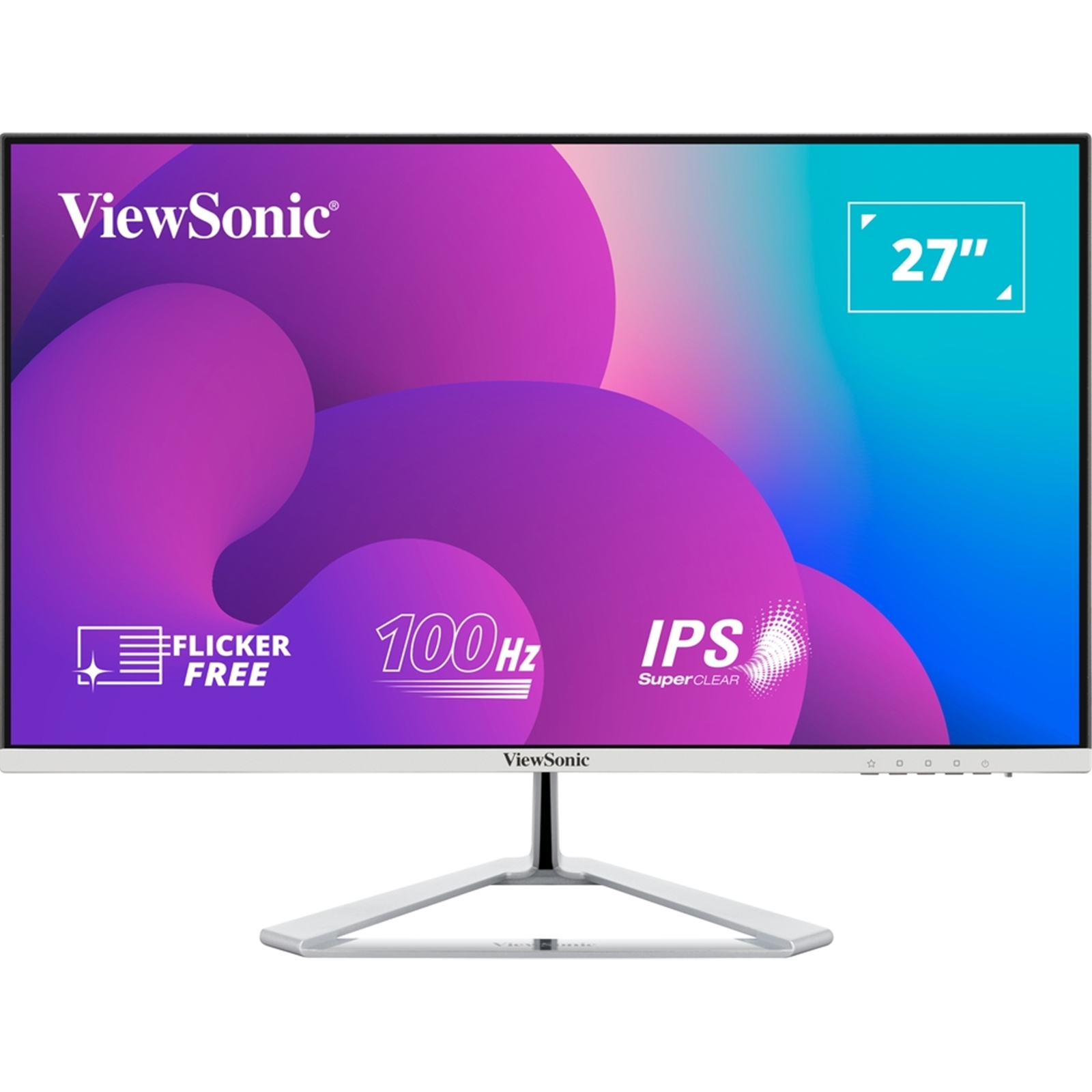

Whether for office use or for enjoying entertainment at home, the ViewSonic® VX2776-SMH is designed to take your viewing experience to another level. With a SuperClear® IPS panel and a sleek frameless design, this monitor provides a near-seamless viewing experience ideal for multi-monitor setups. The Full HD resolution boosts efficiency and image detail needed for work or play. A mega dynamic contrast ratio of 80M:1 delivers enhanced image depth for a better user experience. The Built-in HDMI and VGA inputs deliver flexible connectivity options for a wide range of devices.

Clarity From Any Angle
Enjoy accurate and vivid colors with consistent levels of brightness no matter your vantage point. With SuperClear VA panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

Premium Design
The monitor takes on an architecturally inspired design aesthetic, fused with modern form factors such as a thin profile, modern frameless bezel, and a unique triangular stand.

75Hz Refresh Rate
With 75Hz refresh rate, this monitor delivers great visual fluidity and flawless graphics no matter how quickly the in-game action unfolds.

ViewMode Optimized Settings
ViewSonic's ViewMode includes optimized Game, Movie, Web, Text, Mono, and Mac presets. Each preset offers specialized enhancements to gamma curve, color temperature, contrast, and brightness to deliver the optimal viewing experience for different applications.

Eye Care Technology
Flicker-Free Technology and a Blue Light Filter minimize eyestrain over extended viewing periods.

Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

Low Energy Consumption
ViewSonic's energy efficient Eco-Mode adjusts brightness to the optimal setting to reduce power consumption and eye fatigue while also prolonging the monitor's lifespan.

Specifications

Display

Display Size
27"

Viewable Area
27"

Panel Type
IPS Technology

Resolution
1920 x 1080

Resolution Type
FHD (Full HD)

Static Contrast Ratio
1,300:1 (typ)

Dynamic Contrast Ratio
80M:1

Light Source
LED

Brightness
250 cd/m² (typ)

Colors
16.7M

Color Space Support
8 bit (6 bit + FRC)

Aspect Ratio
16:9

Response Time (MPRT)
4ms

Viewing Angles
178° horizontal, 178° vertical

Backlight Life (Hours)
30000 Hrs (Min)

Curvature
Flat

Refresh Rate (Hz)
100

Low Blue Light
Software solution

Flicker-Free
Yes

Color Gamut
NTSC: 72% size (Typ)
sRGB: 100% size (Typ)

Pixel Size
0.311 mm (H) x 0.311 mm (V)

Surface Treatment
Anti-Glare, Hard Coating (3H)

Compatibility

PC Resolution (max)
1920x1080

Mac Resolution (max)
1920x1080

PC Operating System
Windows 10/11 certified; macOS tested

Mac Resolution (min)
1920x1080

Connector
3.5mm Audio In:
1

3.5mm Audio Out:
1

VGA
1

HDMI 1.4
2

Power in
3-pin Socket (IEC C14 / CEE22)

Audio

Internal Speakers
2Watts x2

Power

Eco Mode (Conserve)
18W

Eco Mode (optimized)
21W

Consumption (typical)
24W

Consumption (max)
25W

Voltage
AC 100-240V

Stand-by
0.5W

Power Supply
Internal Power Adaptor

Additional Hardware

Kensington Lock Slot
1

Controls

Physical Controls
Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)

On Screen Display
Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

Temperature
32°F to 104°F (0°C to 40°C)

Humidity (non-condensing)
20% to 90%

Wall Mount

VESA Compatible
75 x 75 mm

Input Signal

Frequency Horizontal
RGB Analog: 15 ~ 83KHz, HDMI (v1.4): 30 ~ 115KHz

Frequency Vertical
RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz, DisplayPort (v1.2): 48 ~ 100Hz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz

Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog

Ergonomics

Tilt (Forward/Back)
-3° / 15°

Regulations
CE, CE EMC, LVD/CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, BIS

Weight & Dimensions
Packaging (mm): 702 x 462 x 112
Physical (mm): 614 x 443 x 184
Physical Without Stand (mm): 614 x 357 x 49

Net (kg): 4
Net Without Stand (kg): 3.6
Gross (kg): 5.5

Package Contents
VX2776-SMH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1

Manufacturer's Website:

www.viewsoniceurope.com

Warranty:

2 Year Pickup, Repair and Return www.viewsoniceurope.com/uk/support/warranties/united-kingdom/ **RESELLERS**DOA unit - exchange or refund by issuing a ticket via https://www.viewsonic.com/uk/contact/.

DESIGN
Certification	CE, CE EMC, CB, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI
Product colour	Silver
Country of origin	China
Market positioning	Home
Detachable stand	Yes
Feet colour	Silver
Front bezel colour	Silver
Frameless design	Yes
DISPLAY
Pixel pitch	0.311 x 0.311 mm
Contrast ratio (typical)	1000:1
Horizontal scan range	15 - 83 kHz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
Display diagonal	68.6 cm (27")
Contrast ratio (typical)	5 - 90%
Response time	4 ms
Colour depth	8 bit
Display resolution	1920 x 1080 pixels
Display diagonal (metric)	68.58 cm
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Touchscreen	No
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	75 Hz
Display technology	LED
Native aspect ratio	16:9
HD type	Full HD
Panel type	IPS
Screen shape	Flat
Display number of colours	16.78 million colours
Surface hardness	3H
sRGB coverage (typical)	100%
NTSC coverage (typical)	72%
Display brightness (typical)	250 cd/m²
ENERGY MANAGEMENT
Power consumption (typical)	24 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	18 W
Power consumption (standby)	0.5 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	24 kWh
European Product Registry for Energy Labelling (EPREL) code	391334
ERGONOMICS
Cable lock slot	Yes
Height adjustment	No
Tilt angle range	-3 - 21°
On Screen Display (OSD)	Yes
Panel mounting interface	75 x 75 mm
Number of OSD languages	14
Tilt adjustment	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
LOGISTICS DATA
Harmonized System (HS) code	85285210
MULTIMEDIA
RMS rated power	4 W
Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
OTHER FEATURES
Certification	CE, CE EMC, CB, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI
Country of origin	China
Connection to PC	3.5 mm
Touchscreen	No
PACKAGING CONTENT
Cables included	AC, HDMI
Quick start guide	Yes
Stand included	Yes
PACKAGING DATA
Package weight	5.5 kg
Cables included	AC, HDMI
Package depth	112 mm
Package height	462 mm
Package width	702 mm
Quick start guide	Yes
Package type	Box
Stand included	Yes
PERFORMANCE
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes
PORTS & INTERFACES
Audio input	Yes
Headphone outputs	1
DVI port	No
VGA (D-Sub) ports quantity	1
AC (power) in	Yes
HDMI ports quantity	2
Headphone connectivity	3.5 mm
HDMI version	1.4
HDMI	Yes
HDCP	Yes
Headphone out	Yes
Built-in USB hub	No
SUSTAINABILITY
European Product Registry for Energy Labelling (EPREL) code	391334
WEIGHT & DIMENSIONS
Width (with stand)	614 mm
Height (with stand)	443 mm
Depth (with stand)	184 mm
Weight (without stand)	3.6 kg
Height (without stand)	357 mm
Width (without stand)	614 mm
Depth (without stand)	49 mm
Weight (with stand)	4 kg
