Target Components

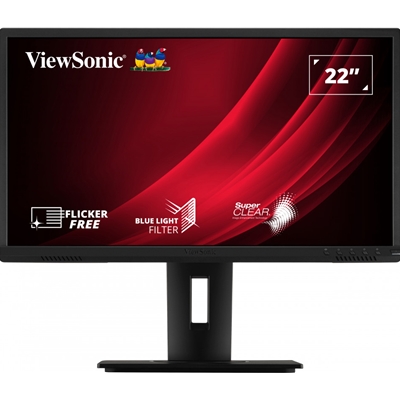

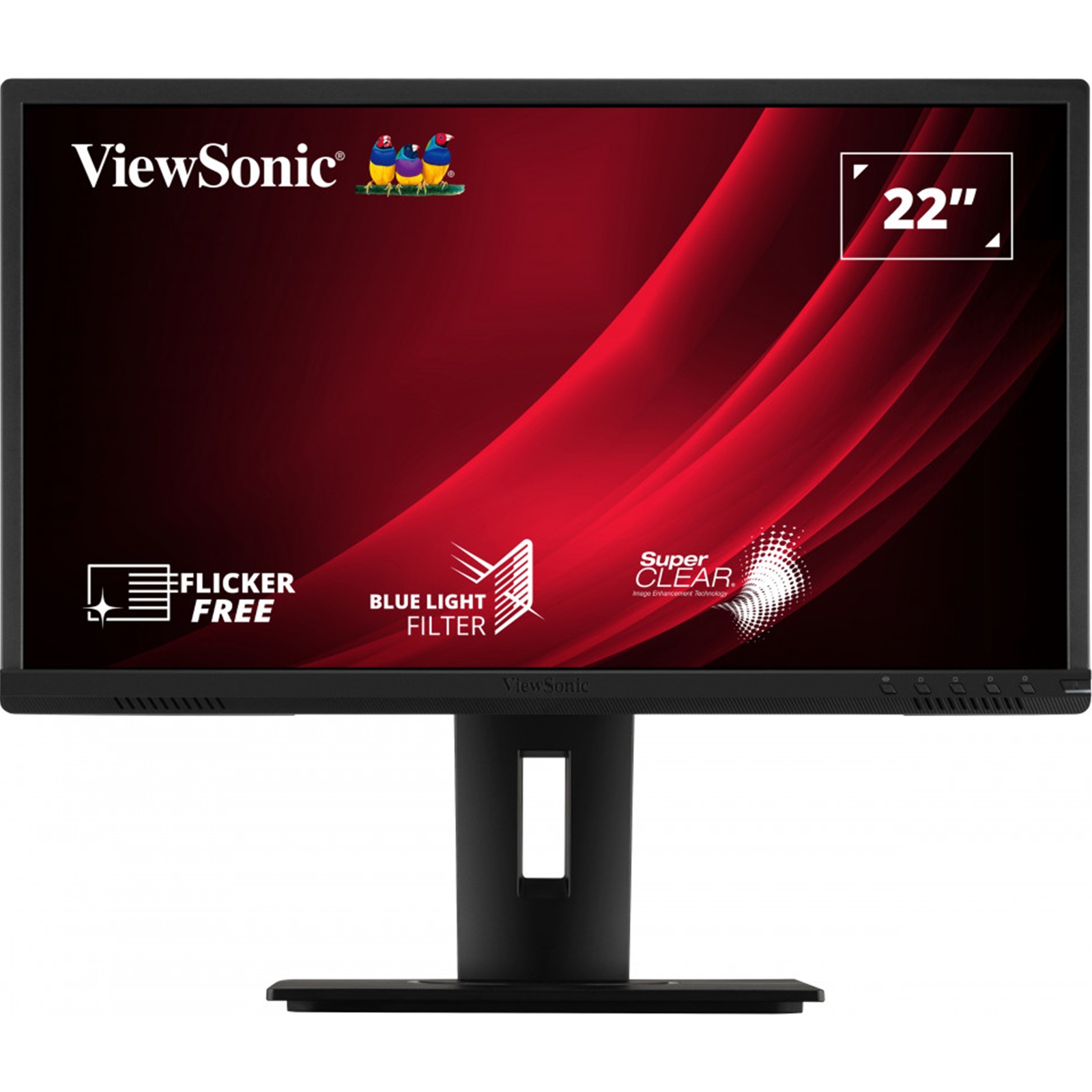

The ViewSonic VG2240 is a 22" Full HD ergonomic business monitor designed to increase productivity and efficiency within the home and office workspace. Providing the full spectrum of ergonomic flexibility, the VG2240 can tilt, swivel, pivot, and height adjustment to adapt to any setup or workflow, while the built-in vDisplay Manager productivity software delivers efficient multi-tasking ability and streamlined display control. Dual front-facing speakers ensure a perfect audio-visual experience to provide teams with quality remote communication and collaboration. The beautifully designed display includes a 3-sided narrow bezel for uninterrupted viewing in multi-monitor display setups as well HDMI. DisplayPort, VGA, and USB3.2 connectivity. Complete with an easy-to-install quick release stand that reduces setup time to only a few minutes, the VG2240 offers a high-performance, purpose-built display solution designed for workspace productivity.

Features
- Ergonomic flexibility with quick release stand
- Display Manager productivity software for maximized multitasking
- Dual front facing speakers for clear audio
- HDMI, DisplayPort, VGA, and USB3.2 ports for extended connectivity
- 3-side narrow bezel for uninterrupted viewing

Ergonomic Workstation
Discover a monitor that has been designed to address the challenges of the modern work setup.

Uninterrupted Viewing
The narrow three-sided bezel gives the monitor a stylish feel and delivers uninterrupted viewing in multi-monitor setups.

Viewing Clarity from Wide Angles
Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.

Clear Audio
Designed with a dual 2W front-firing speaker, the VG2240 delivers a clear sound to provide complete multi-sensory immersion.

Specifications

Display Size (in.)
22

Viewable Area (in.)
21.5

Panel Type
VA Technology

Resolution
1920 x 1080

Resolution Type
FHD (Full HD)

Static Contrast Ratio
3,000:1 (typ)

Dynamic Contrast Ratio
80M:1

Light Source
LED

Brightness
250 cd/m² (typ)

Colors
16.7M

Color Space Support
8 bit true

Aspect Ratio
16:9

Response Time (Typical GTG)
5ms

Response Time (GTG w/OD)
5ms

Viewing Angles
178 horizontal, 178 vertical

Backlight Life (Hours)
30000 Hrs (Min)

Curvature
Flat

Refresh Rate (Hz)
60

Blue Light Filter
Yes

Flicker-Free
Yes

Color Gamut
NTSC: 72% size (Typ)
sRGB: 103% size (Typ)

Pixel Size
0.249 mm (H) x 0.241 mm (V)

Surface Treatment
Anti-Glare, Hard Coating (3H)

Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080

Connector
VGA: 1
USB 3.2 Type A Down Stream: 4
USB 3.2 Type B Up Stream: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2

Power
Eco Mode (Conserve): 12.35W
Eco Mode (optimized): 14.43W
Consumption (typical): 17.18W
Consumption (max): 18.89W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply

Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes

Controls
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)

On Screen Display
Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

Wall Mount
VESA Compatible: 100 x 100 mm

Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz

Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog

Ergonomics
Height Adjust (mm): 130
Swivel: 120
Tilt (Forward/Back): -5 / 40
Pivot (Right/Left): 90 / 90

Weight (imperial)
Net (lbs): 11.5
Net Without Stand (lbs): 6.2
Gross (lbs): 16.8

Weight (metric)
Net (kg): 5.2
Net Without Stand (kg): 2.8
Gross (kg): 7.6

Dimensions (imperial) (wxhxd)
Packaging (in.): 21.9 x 14.9 x 8.3
Physical (in.): 19.7 x 15.23~19.56 x 8.1
Physical Without Stand (in.): 19.7 x 11.6 x 2

Dimensions (metric) (wxhxd)
Packaging (mm): 556 x 379 x 210
Physical (mm): 501 x 386.85~496.96 x 206
Physical Without Stand (mm): 501 x 294 x 51

General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, UKCA
PACKAGE CONTENTS: VG2240 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws
