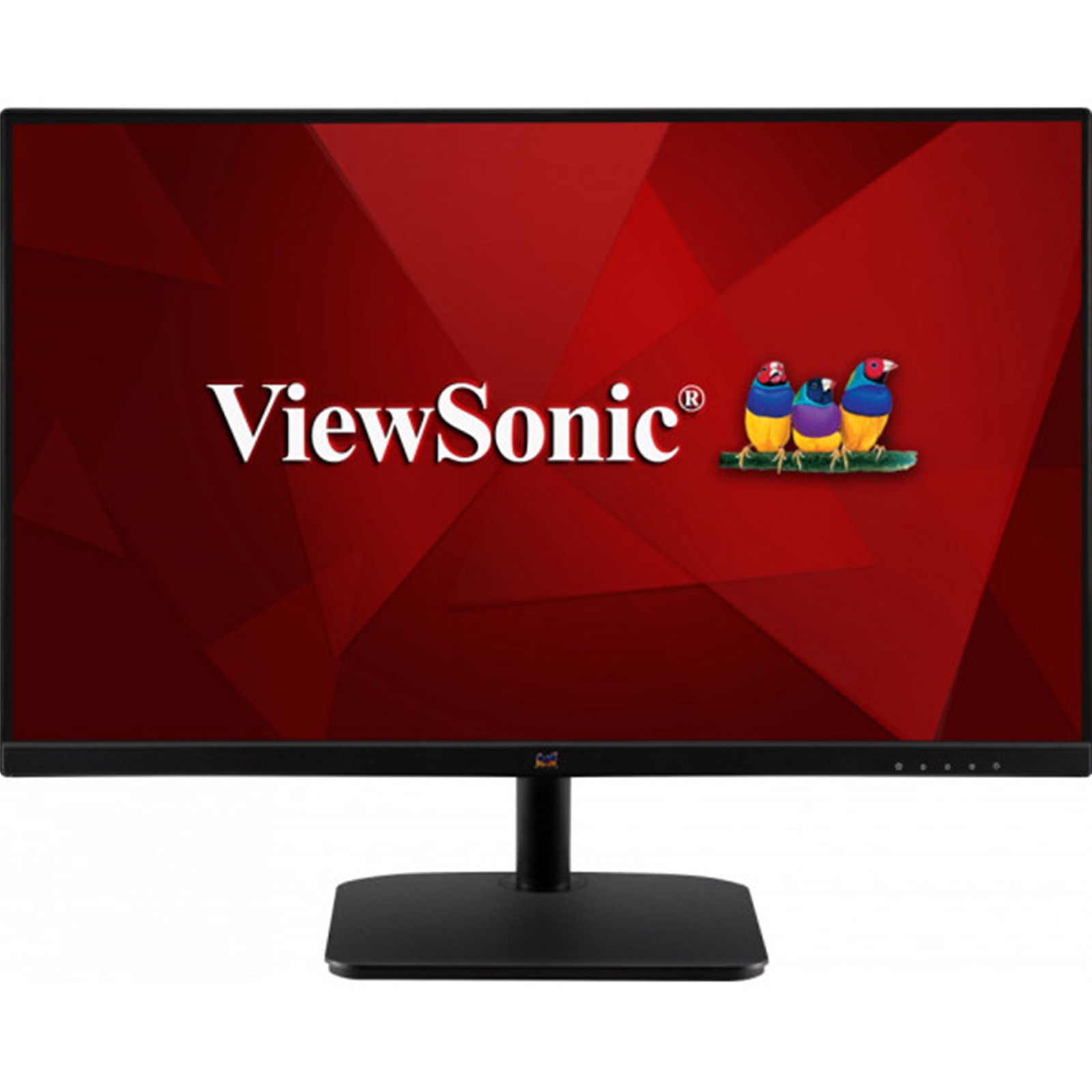

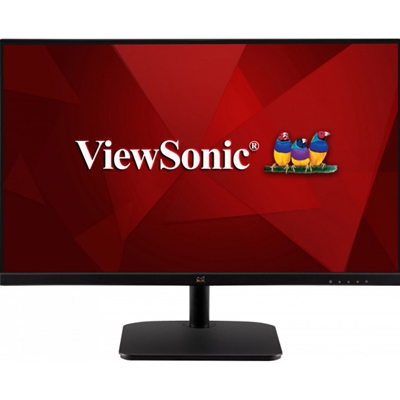

The ViewSonic VA2432-MHD is a 24" (23.8" viewable) Full HD Monitor with IPS technology and flexible connectivity for use in the office or at home. With SuperClear® IPS technology and Full HD resolution, images are clear and detailed from a wide range of viewing angles. Integrated speakers ensure a crisp and clear sound while Display Port, HDMI, and VGA inputs allow for increased setup flexibility when connecting with other devices. The VA2432-MHD's three-sided frameless bezel delivers a seamless viewing experience and comes equipped with Eye Care technology to help eliminate eye strain resulting from extended viewing periods. VESA compatibility guarantees easy adaption to both multi-monitor or wall-mount set ups.
SuperClear IPS
Enjoy rich vivid color and consistent brightness no matter the vantage point. With SuperClear® IPS panel technology, the monitor delivers consistent image quality weather you are looking from above, below, the side, or in front of the display.
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You'll experience amazing clarity and detail whether working, gaming, or enjoying the latest in multimedia entertainment.
75Hz Refresh Rate
With 75Hz refresh rate, this monitor delivers great visual fluidity and flawless graphics no matter how quickly the in-game action unfolds.
No Screen Tearing & Less Stuttering for Moving Objects
To meet a variety of frame rates from videos or games, the Adaptive Sync provides a wide variable refresh rate of 48 to 75 Hertz support to avoid screen tearing.
Three-sided frameless design for seamless viewing
With a three-sided frameless bezel, the monitor delivers clean and seamless multi-monitor setup capabilities.
Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines impressive screen performance with big stereo sound for an immersive multimedia experience.
Flexible Connectivity
Display Port, HDMI and VGA inputs give you the freedom to connect your monitor to a wide range of devices.
ViewMode: Superior Color Rendering & Intuitive Settings
ViewSonic's unique ViewMode feature offers ?Game,? ?Movie,? ?Web,? ?Text,? and ?Mono? presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
Comfortable Viewing
Flicker-Free technology and Blue Light Filter help to eliminate eyestrain from extended viewing periods.
Low Energy Consumption
VA2432-MHD's energy-saving Eco mode takes energy efficiency into consideration while at the same time offering stunning screen performance.
Specifications
Display
Display Size (in.)
24
Viewable Area (in.)
23.8
Panel Type
IPS Technology
Resolution
1920 x 1080
Resolution Type
FHD
Static Contrast Ratio
1,000:1 (typ)
Dynamic Contrast Ratio
50M:1
Light Source
LED
Brightness
250 cd/m² (typ)
Colors
16.7M
Color Space Support
8 bit (6 bit + Hi-FRC)
Aspect Ratio
16:9
Response Time (Typical GTG)
4ms
Viewing Angles
178 horizontal, 178 vertical
Backlight Life (Hours)
30000 Hrs (Min)
Curvature
Flat
Refresh Rate (Hz)
75
Variable Refresh Rate Technology
Yes
Blue Light Filter
Yes
Flicker-Free
Yes
Color Gamut
NTSC: 72% size (Typ), sRGB: 104% size (Typ)
Pixel Size
0.275 mm (H) x 0.275 mm (V)
Surface Treatment
Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max)
1920x1080
Mac Resolution (max)
1920x1080
PC Operating System
Windows 10 certified; macOS tested
Mac Resolution (min)
1920x1080
Connector
VGA
1
3.5mm Audio In
1
HDMI 1.4
1
Display Port
1
Power in
External power adapter
Audio
Internal Speakers
2Watts x2
Power
Eco Mode (Conserve)
15W
Eco Mode (optimized)
18W
Consumption (typical)
22W
Consumption (max)
25W
Voltage
AC 100-240V, 50/60 Hz
Stand-by
0.3W
Power Supply
External
Additional Hardware
Kensington Lock Slot
1
Controls
Physical Controls
Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display
Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)
20% to 90%
Wall Mount
Vesa Compatible
75 x 75 mm
Input Signal
Frequency Horizontal
24 ~ 86KHz
Frequency Vertical
48 ~ 75Hz
Video Input
Digital Sync
TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate
RGB Analog
Ergonomics
Tilt (Forward/Back)
-3º / 20º
Weight and Dimensions
3.7KG
600 mm x 395 mm x 112 mm (W x H x D)
Warranty:
2 Year Pickup, Repair and Return
www.viewsoniceurope.com/uk/support/warranties/united-kingdom/
**RESELLERS**DOA unit - exchange or refund by issuing a ticket via https://www.viewsonic.com/uk/contact/.
|
DESIGN
|
| Certification |
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, KC, e-Standby, BIS |
| Product colour |
Black |
| Country of origin |
China |
| Detachable stand |
Yes |
| Feet colour |
Black |
| Front bezel colour |
Black |
| Frameless design |
Yes |
DISPLAY
|
| Pixel pitch |
0.275 x 0.275 mm |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Viewable size, horizontal |
52.7 cm |
| Viewable size, vertical |
29.6 cm |
| Display diagonal |
60.5 cm (23.8") |
| Response time |
4 ms |
| Colour depth |
8 bit |
| Display resolution |
1920 x 1080 pixels |
| Digital horizontal frequency |
24 - 86 kHz |
| Digital vertical frequency |
48 - 75 Hz |
| Touchscreen |
No |
| Contrast ratio (dynamic) |
50000000:1 |
| Maximum refresh rate |
75 Hz |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Panel type |
IPS |
| Display surface |
Matt |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colours |
| Surface hardness |
3H |
| sRGB coverage (typical) |
104% |
| NTSC coverage (typical) |
72% |
| Display brightness (typical) |
250 cd/m² |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
22 W |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.3 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Energy efficiency class (SDR) |
F |
| Energy consumption (SDR) per 1000 hours |
22 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
350953 |
ERGONOMICS
|
| Cable lock slot |
Yes |
| Height adjustment |
No |
| Tilt angle range |
-3 - 20° |
| Panel mounting interface |
75 x 75 mm |
| Number of OSD languages |
14 |
| Tilt adjustment |
Yes |
| Cable lock slot type |
Kensington |
| VESA mounting |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85285210 |
MULTIMEDIA
|
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
20 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
OTHER FEATURES
|
| Certification |
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, KC, e-Standby, BIS |
| Compatible operating systems |
Windows 10, macOS |
| Country of origin |
China |
| Touchscreen |
No |
PACKAGING CONTENT
|
| Cables included |
AC, VGA |
| Quick start guide |
Yes |
| Stand included |
Yes |
PACKAGING DATA
|
| Package weight |
3.7 kg |
| Cables included |
AC, VGA |
| Package depth |
112 mm |
| Package height |
395 mm |
| Package width |
600 mm |
| Quick start guide |
Yes |
| Stand included |
Yes |
PERFORMANCE
|
| Compatible operating systems |
Windows 10, macOS |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| VESA Adaptive Sync support |
Yes |
PORTS & INTERFACES
|
| Audio input |
Yes |
| DC-in jack |
Yes |
| DVI port |
No |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| HDMI |
Yes |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| Headphone out |
No |
| Built-in USB hub |
No |
SUSTAINABILITY
|
| European Product Registry for Energy Labelling (EPREL) code |
350953 |
WEIGHT & DIMENSIONS
|
| Width (with stand) |
540 mm |
| Height (with stand) |
406 mm |
| Depth (with stand) |
185 mm |
| Weight (without stand) |
2.4 kg |
| Height (without stand) |
322 mm |
| Width (without stand) |
540 mm |
| Depth (without stand) |
36 mm |
| Weight (with stand) |
2.7 kg |
