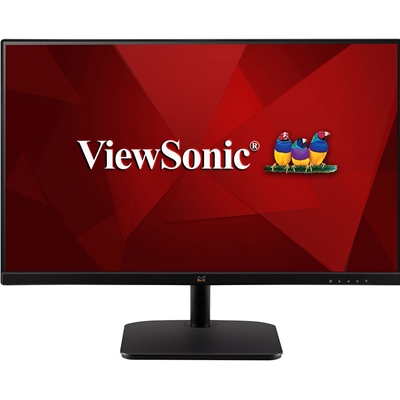

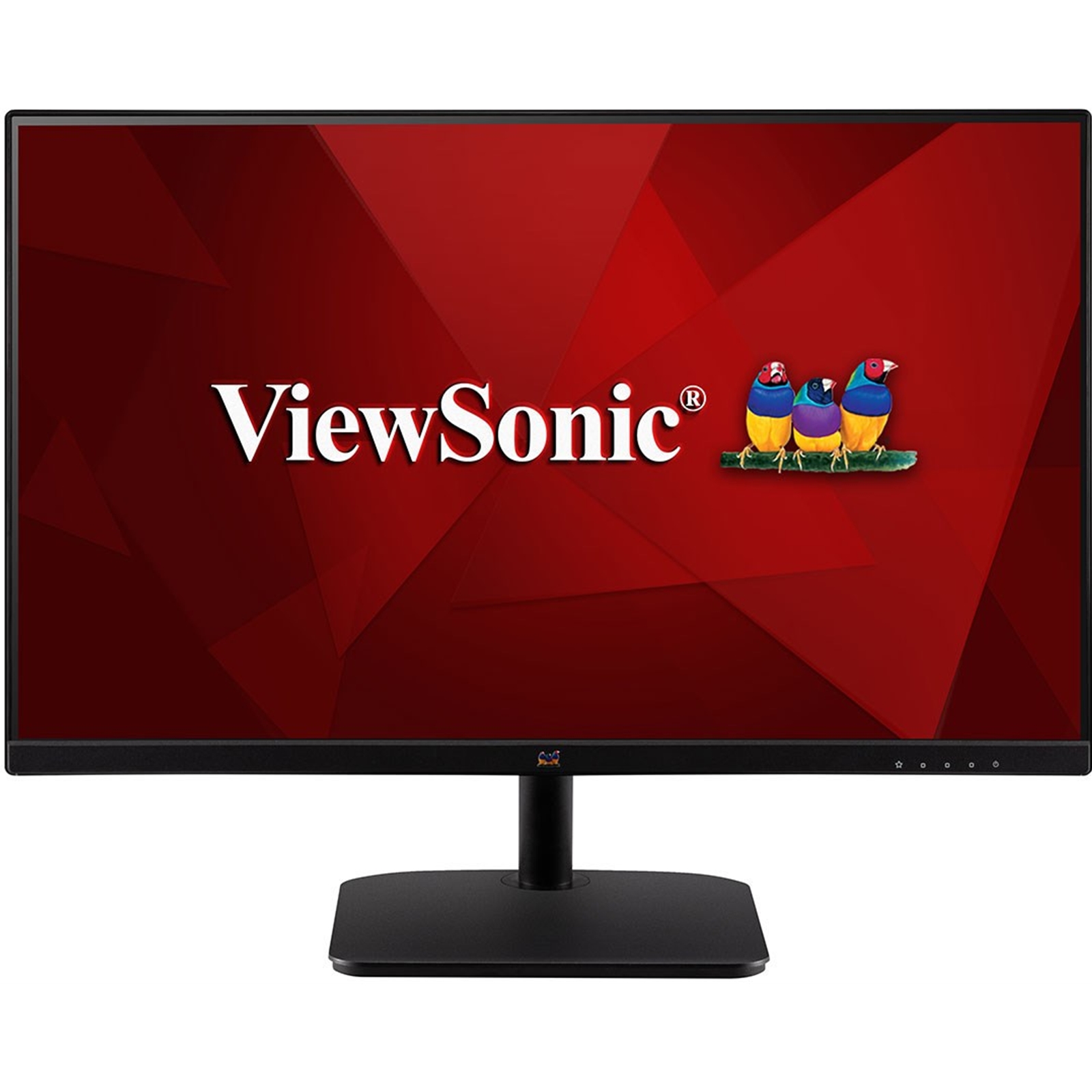

Viewsonic VA2432-H 23.8" Full HD LED Widescreen 75Hz VGA / HDMI IPS Monitor
The ViewSonic VA2432-h is a 24? Full HD IPS monitor with HDMI and VGA input for business or home usage. With SuperClear IPS technology and Full HD resolution, images are clear and detailed from a wide range of viewing angles. The VA2432-h's three-sided frameless bezel design delivers a seamless viewing experience. This monitor provides six ViewMode presets that deliver optimized screen performance in different applications. Eye-Care technology and energy-saving Eco mode help to eliminate eye strain from extended viewing periods. With VESA-compatible mount support, this monitor is easy to setup in any environment.

Frameless Design for Seamless Viewing
With a three-sided frameless bezel design, the monitor delivers clean and seamless multi-monitor setup capabilities.

SuperClear® IPS Technology for Rich Colors at Wide Angles
With SuperClear® IPS technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

75Hz Refresh Rate
With 75Hz refresh rate, this monitor delivers great visual fluidity and flawless graphics no matter how quickly the in-game action unfolds.

Comfortable Viewing
Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.

Low Energy Consumption
The energy-saving Eco-mode takes energy efficiency into consideration while also offering stunning screen performance.

Color Rendering Options
ViewSonic's unique ViewMode feature offers Game, Movie, Web, Text, and Mono presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.

Key Features
1920 x 1080 Full HD Resolution
Fast 4ms Response Time
250cd/m2 Brightness
IPS Panel
75Hz Refresh Rate
Inputs: VGA and HDMI

Model
VA2432-H

Screen Size
23.8"

Panel Type
IPS

Aspect Ratio
16:9

Resolution
1920 x 1080
Full HD

Response Time
4ms

Pixel Pitch
0.275 mm

Refresh Rate
75 Hz

Colour Support
16.7 million

Contrast Ratio
100,000,000:1

Brightness
250 cd/m²

Backlight
LED

Stand
Tiltable -3� / 20�

Vesa
VESA 75 x 75 mm

Ports & Connectors
HDMI
VGA

Power
Electrical Power Consumption 24 W
Electrical Power Consumption Standby 0.3 W
Voltage 100 ~ 240 V
Electrical Frequency 50 ~ 60 Hz
Power Adaptor Type External
Power Supply Yes

Certification
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, KC, e-Standby, BIS

Colours
Black

Dimensions (H x W x D)
Width 540 mm
Depth 185 mm
Height 406 mm
Weight 2.7 kg

Package Contents
VA2432-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x2

Manufacturer's Website:

www.viewsoniceurope.com

Warranty:

2 Year Pickup, Repair and Return www.viewsoniceurope.com/uk/support/warranties/united-kingdom/ **RESELLERS**DOA unit - exchange or refund by issuing a ticket via https://www.viewsonic.com/uk/contact/.

AUDIO
Built-in speakers	N
CAMERA
Built-in camera	N
CERTIFICATES
Certification	WEEE, BSMI, BIS
DESIGN
Certification	WEEE, BSMI, BIS
Product colour	Black
Certification	WEEE, BSMI, BIS
Colour of product	Black
Feet colour	Black
Front bezel colour	Black
Frameless design	Yes
Feet colour	Black
Front bezel colour	Black
Frameless design	Y
DISPLAY
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal	61 cm (24")
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Response time	4 ms
Colour depth	8 bit
Display resolution	1920 x 1080 pixels
Digital horizontal frequency	24 - 86 kHz
Digital vertical frequency	48 - 75 Hz
Display diagonal	61 cm (24")
Response time	4 ms
Colour depth	8 bit
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Display resolution	1920 x 1080 pixels
Touchscreen	No
Contrast ratio (dynamic)	50000000:1
Maximum refresh rate	75 Hz
Display technology	LED
Native aspect ratio	16:9
HD type	Full HD
Panel type	IPS
Display surface	Matt
Screen shape	Flat
Display number of colours	16.78 million colours
Digital horizontal frequency	24 - 86 kHz
Digital vertical frequency	48 - 75 Hz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Contrast ratio (dynamic)	50000000:1
Maximum refresh rate	75 Hz
Display technology	LED
Native aspect ratio	16:9
HD type	Full HD
Panel type	IPS
Display surface	Matt
Screen shape	Flat
Display number of colours	16.78 million colours
Display brightness (typical)	250 cd/m²
ENERGY MANAGEMENT
Power consumption (typical)	22 W
Power consumption (PowerSave)	15 W
Power consumption (standby)	0.3 W
Power consumption (typical)	22 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (PowerSave)	15 W
Power consumption (standby)	0.3 W
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	22 kWh
European Product Registry for Energy Labelling (EPREL) code	350953
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	22 kWh
ERGONOMICS
Cable lock slot	Yes
Height adjustment	No
Tilt angle range	-3 - 20°
Panel mounting interface	75 x 75 mm
Cable lock slot	Y
Height adjustment	N
Tilt adjustment	Yes
Tilt angle	-3 - 20°
Cable lock slot type	Kensington
VESA mounting	Yes
Tiltable	Y
VESA mounting interfaces compatibility	75 x 75 mm
Cable lock slot type	Kensington
VESA mounting	Y
Tiltable	Y
FEATURES
Panel type	IPS
LOGISTICS DATA
Harmonized System (HS) code	85285210
MULTIMEDIA
Built-in speaker(s)	No
Built-in camera	No
Built-in speaker(s)	N
Built-in camera	N
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	1000:1
Operating relative humidity range	20 - 90%
Operating temperature range (T-T)	0 - 40 °C
OTHER FEATURES
Certification	WEEE, BSMI, BIS
Touchscreen	No
Display type	0.3 W
Compliance certificates	RoHS
HDMI	Y
PACKAGING CONTENT
Cables included	AC, HDMI
Cables included	AC, HDMI
Stand included	Yes
Stand included	Y
PACKAGING DATA
Package weight	3.7 kg
Cables included	AC, HDMI
Package weight	3.7 kg
Package depth	112 mm
Package height	395 mm
Package width	600 mm
Cables included	AC, HDMI
Stand included	Yes
Package depth	112 mm
Packaging depth	112 mm
Package height	395 mm
Packaging height	395 mm
Package width	600 mm
Packaging width	600 mm
Stand included	Y
PERFORMANCE
Built-in speaker(s)	N
Flicker-free technology	Yes
Low Blue Light technology	Yes
Built-in camera	N
Flicker free technology	Y
Low Blue Light technology	Y
PORTS & INTERFACES
Audio input	No
DC-in jack	Yes
DVI port	No
HDMI ports quantity	1
HDMI version	1.4
Audio input	N
HDMI	Yes
DC-in jack	Y
DVI port	N
Headphone out	No
Built-in USB hub	No
HDMI ports quantity	1
HDMI version	1.4
HDMI	Y
Headphone out	N
Built-in USB hub	N
SUSTAINABILITY
Sustainability certificates	RoHS
European Product Registry for Energy Labelling (EPREL) code	350953
Sustainability certificates	RoHS
TECHNICAL DETAILS
Cable lock slot	Y
Colour of product	Black
Compliance certificates	RoHS
HDMI	Y
Feet colour	Black
Front bezel colour	Black
Sustainability certificates	RoHS
WEIGHT & DIMENSIONS
Package weight	3.7 kg
Width (with stand)	600 mm
Height (with stand)	395 mm
Depth (with stand)	112 mm
Weight (without stand)	2.4 kg
Height (without stand)	322 mm
Width (without stand)	540 mm
Depth (without stand)	36 mm
Weight (with stand)	2.7 kg
Packaging depth	112 mm
Packaging height	395 mm
Packaging width	600 mm
Width (with stand)	600 mm
Height (with stand)	395 mm
Depth (with stand)	112 mm
Weight (without stand)	2.4 kg
Height (without stand)	32.2 cm
Width (without stand)	54 cm
Depth (without stand)	3.6 cm
Weight (with stand)	2.7 kg
