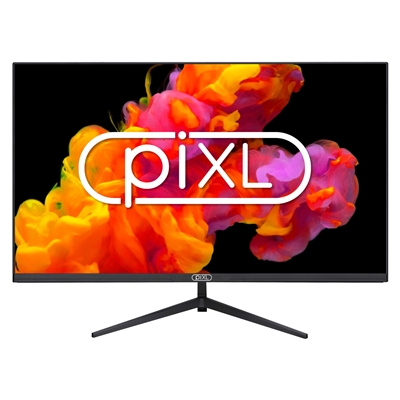

piXL 32" LED IPS Widescreen HDMI / Display Port Frameless 4ms Monitor
Thanks to its full HD IPS panel, the piXL CM32F4 32" monitor provides rich, true-to-life colours, deep blacks and crisp whites at virtually any angle (up to 178 degrees). It features a stylish, zero-frame design and 1920 x 1080 resolution that provides beautiful images, even from a distance.

With the benefits of HDMI, and Display Port connections and a 4ms response time, The piXL CM32F4 is unbelievable value for a true IPS screen with all the benefits of much more expensive IPS monitors at a more affordable price, for work, study, content creators and creatives.

The piXL CM32F4 also has a slim profile, only 2cm deep, and features VESA mount holes so you can remove the stand or connect it to monitor arms and wall brackets, freeing up space and keeping your work area tidy.

IPS Panel
IPS (In Plane Switching) LCD panels work differently to TN panels, essentially by moving the liquid between glass panels. This results in much more true-to-life colours from wide angles, as there is no colour distortion, black look deeper and blacker, while whites are crisp and clear. IPS monitors are the choice of creative professionals who work with video, photographs and graphics as the colour gamut (range of colours) is much wider than traditional TN panels.

Full HD LED monitor
Clearer, sharper images in full high-definition color. piXL monitors offer users a world in 1920 x 1080 HD and provides the finest sharp original quality 100,000,000:1 contrast ratio.

Zero-Frame
The zero-frame design maximises its viewing area and provides more seamless viewing experience for multi-monitor setups.
piXL monitors also conform to the latest environmental standards and come with an impressive 3 year warranty as standard.

Model
CM32F4

Screen Size
32"

Panel Type
IPS

Resolution
1920 x 1080
Full HD

Aspect Ratio
16:9

Response Time
4ms

Refresh Rate
60 Hz

Dot Pitch
036375mm

Colour Support
16.7 million

Contrast Ratio
1200:1

Brightness
280 cd/m

Backlight
LED

Stand
Tiltable - -5~ 15 degree

VESA
Yes - 100x100 mm (4holes)

Ports & Connectors
HDMI
DisplayPort
Earphone
USB

Power
12V/4.0A
Consumption - <28W
Stand-by - <0.5W
External Power

Environmental Certification
MPR II

Colours
Black

Unboxed Dimensions:
L 78 x W 12 x H 49.5cm

Weight
Net - 5.8KG
Gross - 7.0kg

Package Contents
CM32F4 Widescreen LCD Monitor
Power Cord
Display Port Cable

Warranty:

piXL 3-Year Limited Warranty

Warranty Length: 3 years

Warranty Type: Limited

Warranty Coverage: piXL's 3-year warranty covers manufacturing defects and faults. If a monitor becomes faulty within the first 14 days of an end-user purchasing it, we will replace it. If it becomes faulty after the first 14 days we may replace the product or repair it. The end user will need to return it to the reseller they purchased it from originally.

If dead pixels occur on the screen, there are a number of considerations before these will qualify as 'faulty'. piXL`s warranty covers any defects that exceed the defect specifications described below:

Either- A single dead pixel in the central portion of the screen
and/ or: 3 x white pixels or 3 x black pixels or a mixture of 5 x white and black pixels across all other areas or the screen.

Warranty Instructions: RESELLERS - please raise a customer service ticket or Return via Target.

END USERS - in the first instance, please return it to the reseller you originally purchased it. In the event that this is not possible, please use the Warranty Contact below.

Warranty Information: https://www.pixl-technology.co.uk/warranty

Warranty Contact: Contact Us

DESIGN
Certification	MPR II
Product colour	Black
Market positioning	Home
Feet colour	Black
Frameless design	Y
DISPLAY
Pixel pitch	0.36375 x 0.36375 mm
Contrast ratio (typical)	1200:1
Display diagonal	81.3 cm (32")
Response time	4 ms
Display resolution	1920 x 1080 pixels
Display diagonal (metric)	81.3 cm
Touchscreen	N
Backlight type	LED
Maximum refresh rate	60 Hz
Display technology	LCD
Native aspect ratio	16:9
HD type	Full HD
Panel type	IPS
Screen shape	Flat
Display number of colours	16.7 million colours
Display brightness (typical)	280 cd/m²
ENERGY MANAGEMENT
Power consumption (typical)	28 W
Power supply type	External
Power consumption (standby)	0.5 W
ERGONOMICS
Cable lock slot	N
Wall mountable	Y
Height adjustment	N
Tilt angle range	-5 - 15°
Panel mounting interface	100 x 100 mm
Tilt adjustment	Y
VESA mounting	Y
MULTIMEDIA
Built-in camera	N
OTHER FEATURES
Certification	MPR II
Connection to PC	3.5 mm
Touchscreen	N
PACKAGING CONTENT
Cables included	AC, DisplayPort
Stand included	Y
Power adapter included	Y
PACKAGING DATA
Package weight	7 kg
Cables included	AC, DisplayPort
Stand included	Y
Power adapter included	Y
PERFORMANCE
NVIDIA G-SYNC	N
AMD FreeSync	N
PORTS & INTERFACES
Headphone outputs	1
HDMI ports quantity	1
Headphone connectivity	3.5 mm
HDMI	Y
DisplayPorts quantity	1
Headphone out	Y
Built-in USB hub	Y
WEIGHT & DIMENSIONS
Width (with stand)	780 mm
Height (with stand)	495 mm
Depth (with stand)	120 mm
Weight (with stand)	5.8 kg
