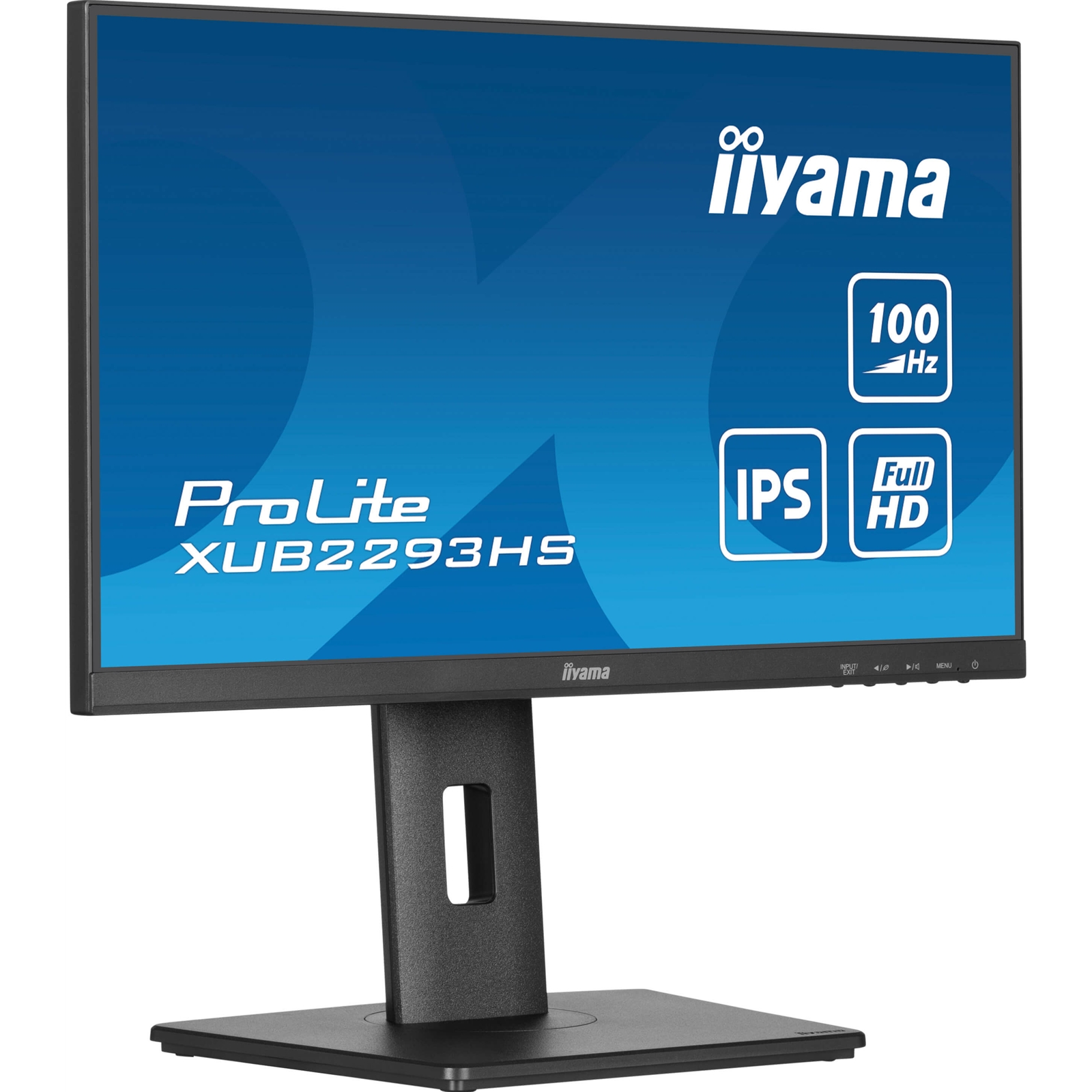

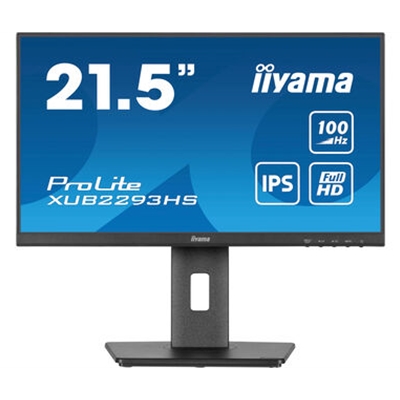

iiyama PROLITE XUB2293HS-B6 22 inch IPS Monitor, Full HD, 1ms, HDMI, DisplayPort, Freesync, 100Hz, Speakers, Black, Internal PSU, Height Adjust, Pivot, ACR, VESA
Key Specifications
| Screen Size (in) | 22 |
| Max Resolution | 1920x1080 |
| Refresh Rate | 100Hz |
| Response Time | 1ms |
| Display Port | Yes |
| Height Adjustable | Yes |
| Curved Screen | No |
Manufacturer : IIYAMA
EAN : 4948570124237
Manufacturer Part Code : XUB2293HS-B6
Weight : 3.8 kg
Login For Pricing
Key Specifications
| Screen Size (in) | 22 |
| Max Resolution | 1920x1080 |
| Refresh Rate | 100Hz |
| Response Time | 1ms |
| Display Port | Yes |
| Height Adjustable | Yes |
| Curved Screen | No |
Manufacturer :
IIYAMA
EAN :
4948570124237
Manufacturer Part Code :
XUB2293HS-B6
Weight :
3.8 kg
Recommended Products
ProLite XUB2293HS-B6
21.5" IPS 3-side borderless monitor with height-adjustable stand for multi-monitor set-ups
The stylish edge-to-edge design of the ProLite XUB2293HS with IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, this 21.5'' ProLite display is a great choice for both multi-monitor configuration and office applications.
HAS (150mm) + Pivot (rotation both sides)
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
Specifications
Display
Diagonal
21.5", 54.5cm
Panel
IPS panel technology LED, matte finish
Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)
Aspect ratio
16:9
Panel brightness
300 cd/m²
Static contrast
1000:1
Advanced contrast
80M:1
Response time (MPRT)
1ms
Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support
16.7mln
Horizontal Sync
30 - 110kHz
Viewable area W x H
478.7 x 260.3mm, 18.8 x 10.3"
Pixel pitch
0.249mm
Colour
matte, black
INTERFACES, CONNECTORS, CONTROLS
Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)
HDCP
yes
Headphone connector
yes
FEATURES
Blue light reducer
yes
Flicker free
yes
Adaptive Sync support
yes
OSD languages
EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL,
Control buttons
Power, Menu, Up / Right / Volume, Down / Left / Eco, Signal/ Exit
User controls
picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-Res technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft, AdaptiveSync), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, language, display information), extra (reset, DDC /CI, signal select, LED, opening logo)
Speakers
2 x 2W
Convenience
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX
MECHANICAL
Display position adjustments
tiltheight, pivot (rotation), swivel, tilt
Height adjustment
150mm
Rotation (PIVOT function
90°
Swivel stand
90°; 45° left; 45° right
Tilt angle
23° up; 5° down
VESA mounting
100 x 100mm
Cable management system
yes
ACCESSORIES INCLUDED
Cables
power, USB, HDMI
Other
quick start guide, safety guide
POWER MANAGEMENT
Power supply unit internal
Power supply
AC 50 - 60V, 100/240Hz
Power usage
17W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)
E
REACH SVHC
above 0.1%: Lead
WEIGHT & DIMENSIONS
Product dimensions W x H x D 492 x 328 (478.5) x 209.5mm
Box dimensions W x H x D 620 x 395 x 126mm
Weight (without box) 3.9kg
Weight (with box) 5.3kg
21.5" IPS 3-side borderless monitor with height-adjustable stand for multi-monitor set-ups
The stylish edge-to-edge design of the ProLite XUB2293HS with IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, this 21.5'' ProLite display is a great choice for both multi-monitor configuration and office applications.
HAS (150mm) + Pivot (rotation both sides)
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
Specifications
Display
Diagonal
21.5", 54.5cm
Panel
IPS panel technology LED, matte finish
Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)
Aspect ratio
16:9
Panel brightness
300 cd/m²
Static contrast
1000:1
Advanced contrast
80M:1
Response time (MPRT)
1ms
Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support
16.7mln
Horizontal Sync
30 - 110kHz
Viewable area W x H
478.7 x 260.3mm, 18.8 x 10.3"
Pixel pitch
0.249mm
Colour
matte, black
INTERFACES, CONNECTORS, CONTROLS
Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)
HDCP
yes
Headphone connector
yes
FEATURES
Blue light reducer
yes
Flicker free
yes
Adaptive Sync support
yes
OSD languages
EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL,
Control buttons
Power, Menu, Up / Right / Volume, Down / Left / Eco, Signal/ Exit
User controls
picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-Res technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft, AdaptiveSync), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, language, display information), extra (reset, DDC /CI, signal select, LED, opening logo)
Speakers
2 x 2W
Convenience
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX
MECHANICAL
Display position adjustments
tiltheight, pivot (rotation), swivel, tilt
Height adjustment
150mm
Rotation (PIVOT function
90°
Swivel stand
90°; 45° left; 45° right
Tilt angle
23° up; 5° down
VESA mounting
100 x 100mm
Cable management system
yes
ACCESSORIES INCLUDED
Cables
power, USB, HDMI
Other
quick start guide, safety guide
POWER MANAGEMENT
Power supply unit internal
Power supply
AC 50 - 60V, 100/240Hz
Power usage
17W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)
E
REACH SVHC
above 0.1%: Lead
WEIGHT & DIMENSIONS
Product dimensions W x H x D 492 x 328 (478.5) x 209.5mm
Box dimensions W x H x D 620 x 395 x 126mm
Weight (without box) 3.9kg
Weight (with box) 5.3kg
Manufacturer's Website:
Warranty:
3 Year Manufacturers On Site Swap Out, Tel: 01926 819 189
| DESIGN | |
|---|---|
| Product colour | Black |
| Market positioning | Business |
| DISPLAY | |
| Pixel pitch | 0.249 x 0.249 mm |
| Contrast ratio (typical) | 1000:1 |
| Horizontal scan range | 30 - 110 kHz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Viewable size, horizontal | 26 cm |
| Viewable size, vertical | 47.9 cm |
| Display diagonal | 54.6 cm (21.5") |
| Response time | 1 ms |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal (metric) | 55 cm |
| Touchscreen | No |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 100 Hz |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Panel type | IPS |
| Display surface | Matt |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| sRGB coverage (typical) | 96% |
| NTSC coverage (typical) | 72% |
| Display brightness (typical) | 300 cd/m² |
| ENERGY MANAGEMENT | |
| Power consumption (typical) | 17 W |
| Power supply type | Internal |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1744664 |
| ERGONOMICS | |
| Cable lock slot | Yes |
| Wall mountable | Yes |
| Height adjustment | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | 15 cm |
| Swivelling | Yes |
| Pivot angle | 0 - 90° |
| Tilt adjustment | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Adjustable height (max) | 15 cm |
| MULTIMEDIA | |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| OTHER FEATURES | |
| Touchscreen | No |
| PACKAGING CONTENT | |
| Cables included | AC, HDMI |
| Quick start guide | Yes |
| PACKAGING DATA | |
| Package weight | 5.3 kg |
| Cables included | AC, HDMI |
| Package depth | 126 mm |
| Package height | 395 mm |
| Package width | 620 mm |
| Quick start guide | Yes |
| Package type | Box |
| PERFORMANCE | |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| VESA Adaptive Sync support | Yes |
| PORTS & INTERFACES | |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone out | Yes |
| SUSTAINABILITY | |
| European Product Registry for Energy Labelling (EPREL) code | 1744664 |
| WEIGHT & DIMENSIONS | |
| Width (with stand) | 492 mm |
| Height (with stand) | 478.5 mm |
| Depth (with stand) | 209.5 mm |
| Height (without stand) | 286.5 mm |
| Width (without stand) | 492 mm |
| Depth (without stand) | 45 mm |
| Weight (with stand) | 3.9 kg |
