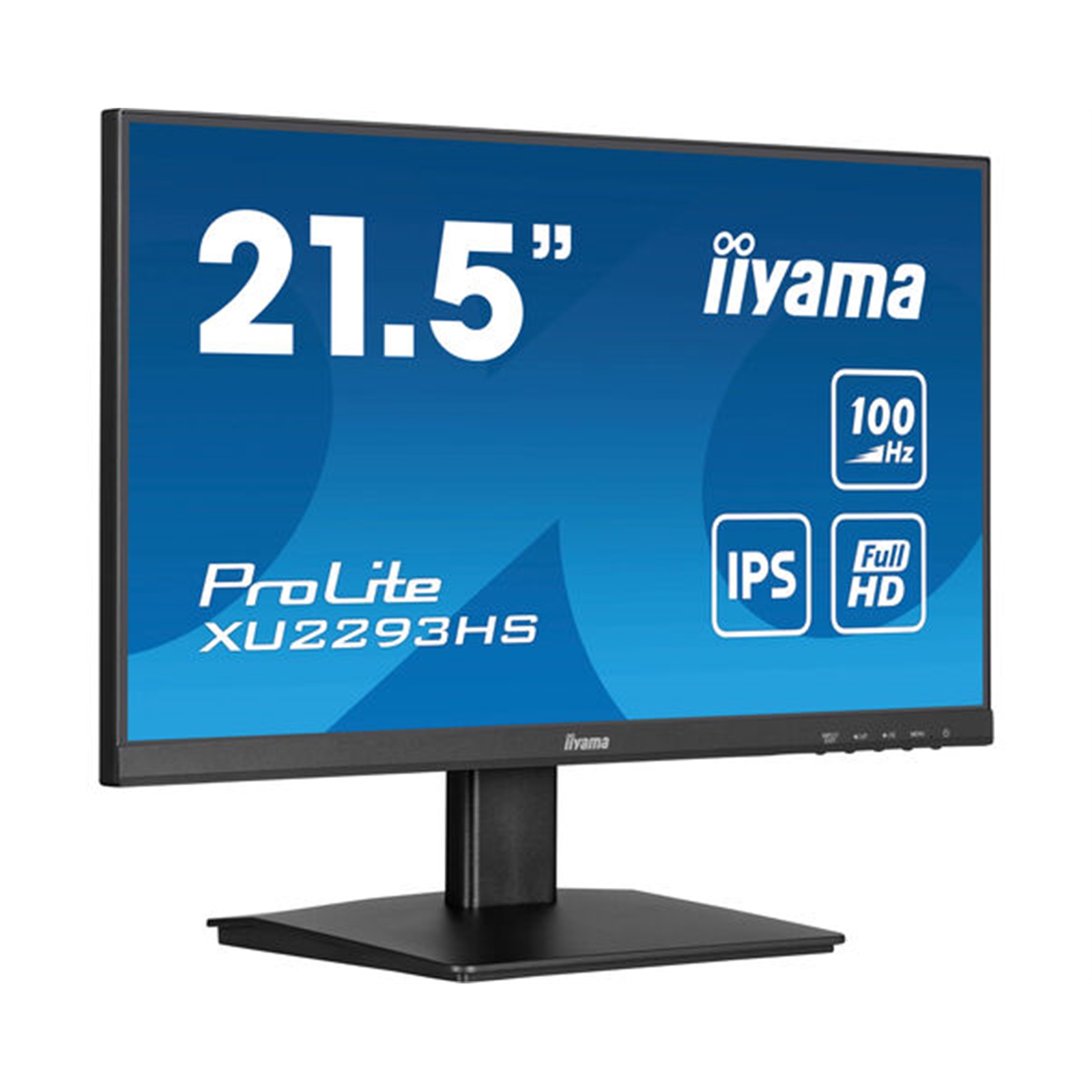

iiyama PROLITE XU2293HS-B6 22 inch IPS Monitor, Full HD, 1ms, HDMI, DisplayPort, Freesync, 100Hz, Speakers, Black, Internal PSU, VESA

Key Specifications
Screen Size (in)22
Max Resolution1920x1080
Refresh Rate100Hz
Response Time1ms
Display PortYes
HDMIYes
Curved ScreenNo
/productImages/80/MOIIY-XU2293HS.JPG
/productImages/80/201042.JPG
/productImages/80/201043.JPG
/productImages/80/201044.JPG
Manufacturer : IIYAMA
EAN : 4948570124244
Manufacturer Part Code : XU2293HS-B6
Weight : 3.8 kg
Login For Pricing

Key Specifications
Screen Size (in)22
Max Resolution1920x1080
Refresh Rate100Hz
Response Time1ms
Display PortYes
HDMIYes
Curved ScreenNo
Manufacturer :
IIYAMA

EAN :
4948570124244

Manufacturer Part Code :
XU2293HS-B6

Weight :
3.8 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

ProLite XU2293HS-B6
21.5 Inch IPS 3-side borderless monitor for multi-monitor set-ups

The stylish edge-to-edge design of the ProLite XU2293HS with IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections and a blue light reducer function to reduce eye fatigue, this 21.5'' ProLite display is a great choice for both multi-monitor configuration and office applications.

1MS
Fast response time is key to ultra-smooth gaming. It reduces ghosting and blurring providing the user with an improved graphic performance.

IPS TECHNOLOGY
Covering 100% of the sRGB colour range, this IPS panel provides outstanding colour accuracy and wider viewing angles guaranteeing high-fidelity, vivid battleground scenes.

Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Specifications

Display

Diagonal
21.5", 54.5cm

Panel
IPS panel technology LED, matte finish

Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
1000:1

Advanced contrast
80M:1

Response time (MPRT)
1ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 110kHz

Viewable area W x H
478.7 x 260.3mm, 18.8 x 10.3"

Pixel pitch
0.249mm

Colour
matte, black

INTERFACES, CONNECTORS, CONTROLS

Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
yes

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit

User controls
picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
tilt

Tilt angle
22° up; 4° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit internal

Power supply
AC 50 - 60V, 100/240Hz

Power usage
17W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D 492 x 359 x 178mm
Box dimensions W x H x D 564 x 380 x 122mm
Weight (without box) 2.6kg
Weight (with box) 3.6kg
Manufacturer's Website:
Warranty:
3 Year Manufacturers On Site Swap Out, Tel: 01438 314416
DESIGN
Product colour Black
Market positioning Gaming
Feet colour Black
DISPLAY
Pixel pitch 0.249 x 0.249 mm
Contrast ratio (typical) 1000:1
Horizontal scan range 30 - 110 kHz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Viewable size, horizontal 26 cm
Viewable size, vertical 47.8 cm
Display diagonal 54.6 cm (21.5")
Response time 1 ms
Display resolution 1920 x 1080 pixels
Display diagonal (metric) 54.5 cm
Touchscreen No
Contrast ratio (dynamic) 80000000:1
Maximum refresh rate 100 Hz
Display technology LED
Native aspect ratio 16:9
HD type Full HD
Panel type IPS
Display surface Matt
Screen shape Flat
DDC/CI Yes
Display number of colours 16.7 million colours
Display brightness (peak) 300 cd/m²
ENERGY MANAGEMENT
Power consumption (typical) 17 W
Power supply type External
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Energy efficiency scale A to G
Energy efficiency class (SDR) D
Energy consumption (SDR) per 1000 hours 12 kWh
European Product Registry for Energy Labelling (EPREL) code 1744603
ERGONOMICS
Cable lock slot Yes
Tilt angle range -4 - 22°
On Screen Display (OSD) Yes
Cable management Yes
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese, Russian, Turkish
Tilt adjustment Yes
Cable lock slot type Kensington
VESA mounting Yes
MULTIMEDIA
RMS rated power 4 W
Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
OTHER FEATURES
Manual Yes
Touchscreen No
Display brightness (peak) 300 cd/m²
Compliance certificates CE, EAC, REACH, RoHS, UKCA, WEEE, cUL
PACKAGING CONTENT
Cables included HDMI, Power
Manual Yes
Quick start guide Yes
Stand included Yes
Power adapter included Yes
PACKAGING DATA
Package weight 3.6 kg
Cables included HDMI, Power
Package depth 122 mm
Package height 380 mm
Package width 564 mm
Manual Yes
Quick start guide Yes
Package type Box
Stand included Yes
Power adapter included Yes
PERFORMANCE
Flicker-free technology Yes
Low Blue Light technology Yes
VESA Adaptive Sync support Yes
PORTS & INTERFACES
Headphone outputs 1
HDMI ports quantity 1
HDMI version 1.4
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
DisplayPort version 1.2
Headphone out Yes
SUSTAINABILITY
Sustainability compliance Yes
Sustainability certificates ErP
European Product Registry for Energy Labelling (EPREL) code 1744603
TECHNICAL DETAILS
Compliance certificates CE, EAC, REACH, RoHS, UKCA, WEEE, cUL
WEIGHT & DIMENSIONS
Width (with stand) 492 mm
Height (with stand) 380 mm
Depth (with stand) 178 mm
Weight (with stand) 2.6 kg
