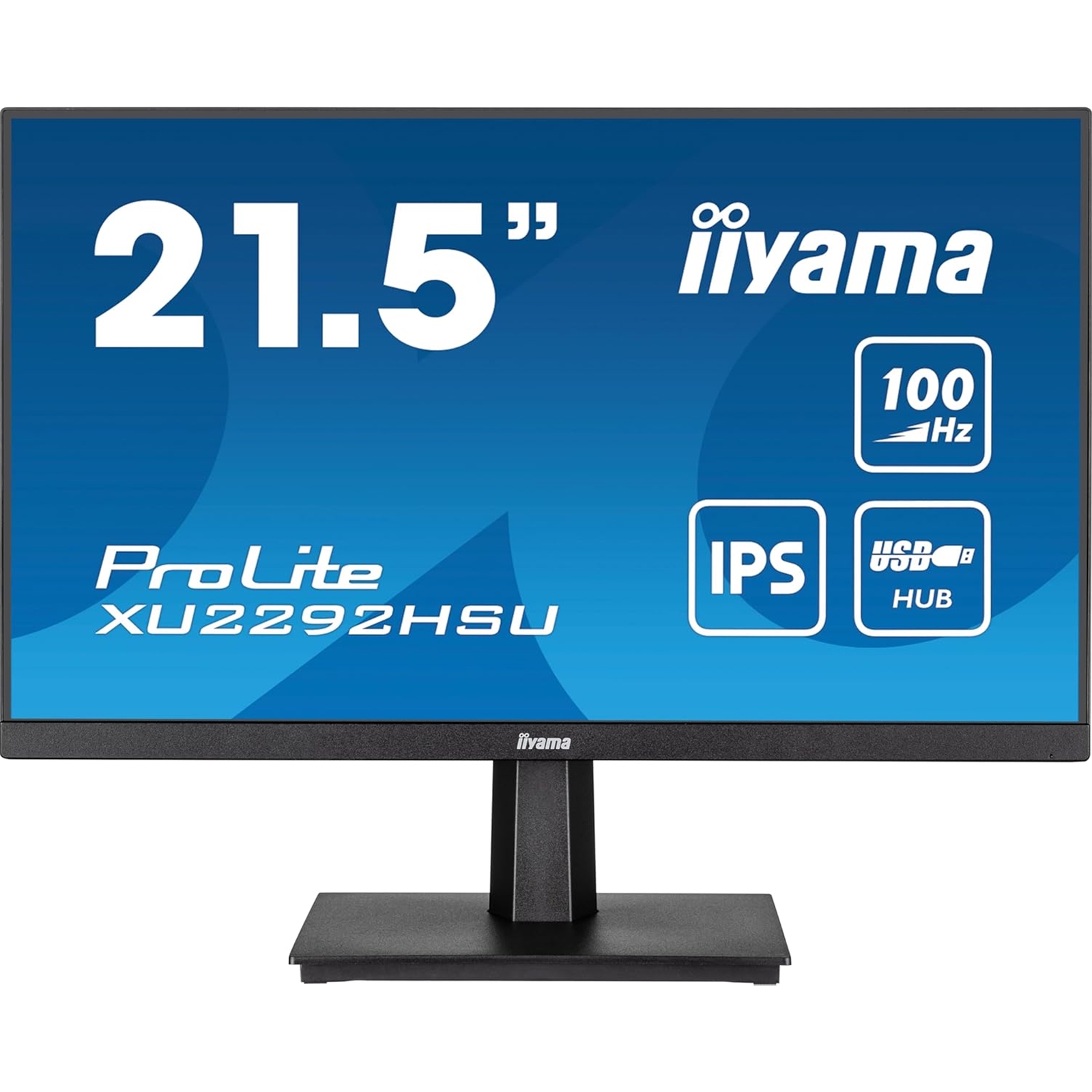

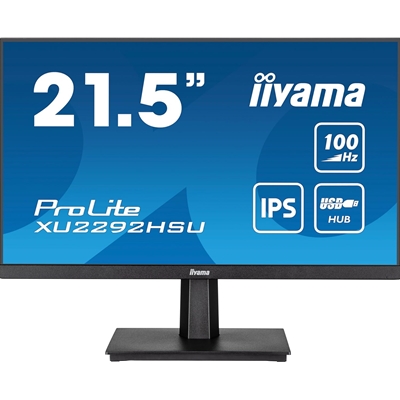

ProLite XU2292HSU-B6 21.5 Inch IPS Technology Panel with 100Hz Refresh Rate
Stylish edge-to-edge design makes the ProLite XU2292HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, 2 port USB 3.2 hub, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue for optimal user comfort, make this monitor a great choice for both multi-monitor configuration and office applications.

100Hz
A 100Hz refresh rate translates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.

IPS Technology
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

Full HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

Slim Line
Slim Line monitors feature a sleek bezel and are therefore particularly suitable for video wall or a multi-monitor set-up.

Speakers and Headphones
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

Specifications

Design
3-side borderless

Diagonal
21.5"

Panel
IPS Panel Technology LED, matte finish

Native Resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect Ratio
16:9

Panel Brightness
250 cd/m²

Static Contrast
1000:1

Advanced Contrast
80M:1

Response Time (MPRT)
0.4ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln (sRGB: 99%; NTSC: 72%)

Horizontal Sync
30 - 115kHz

Viewable Area (W x H)
476.1 x 267.8mm, 18.7 x 10.5"

Pixel Pitch
0.248mm

Colour
matte, black

Interfaces / Connectors / Controls

Signal Input
HDMI x 1

DisplayPort x 1

USB Hub
x 4 (v. 3.2 Gen 1 (5Gbps, DC5V, 900mA))

HDCP
yes

Headphone Connector
yes

Features

Blue Light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
yes

Extra
i-Style colour

OSD Languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control Buttons
Signal Select / Exit, + / Volume, - / Eco +, Menu , Power

User Controls
picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, X-Res technology), image settings (blue light reducer, sharp&soft, video mode adjust), colour settings (gamma, 6-axis, colour temp.), audio settings (volume, mute), OSD settings (OSD H. position, OSD V. position, OSD time, language), extra1 (MBR, AdaptiveSync, USB BC), extra2 (reset, DDC/CI, signal select, HDMI range, opening logo, LED, information)

Speakers
2 x 2W

Convenience
Kensington-Lock prepared, DDC/CI, DDC2B, Mac OSX

Mechanical

Display Position Adjustments
tilt

Tilt Angle
21.5° up; 3.5° down

VESA Mounting
100 x 100mm

Cable Management System
yes

Accessories Included

Cables
power, USB, HDMI

Other
quick start guide, safety guide

Power Management

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
14W typical, 0.5W stand by, 0.3W off mode

Sustainability

Regulations
TCO Certified, CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

REACH SVHC
above 0.1%: Lead

Weight & Dimensions

Product Dimensions (W x H x D)
489.5 x 384 x 199.5mm

Box Dimensions (W x H x D)
581 x 420 x 131mm

Weight (without box)
3.0kg

Weight (with box)
4.5kg
