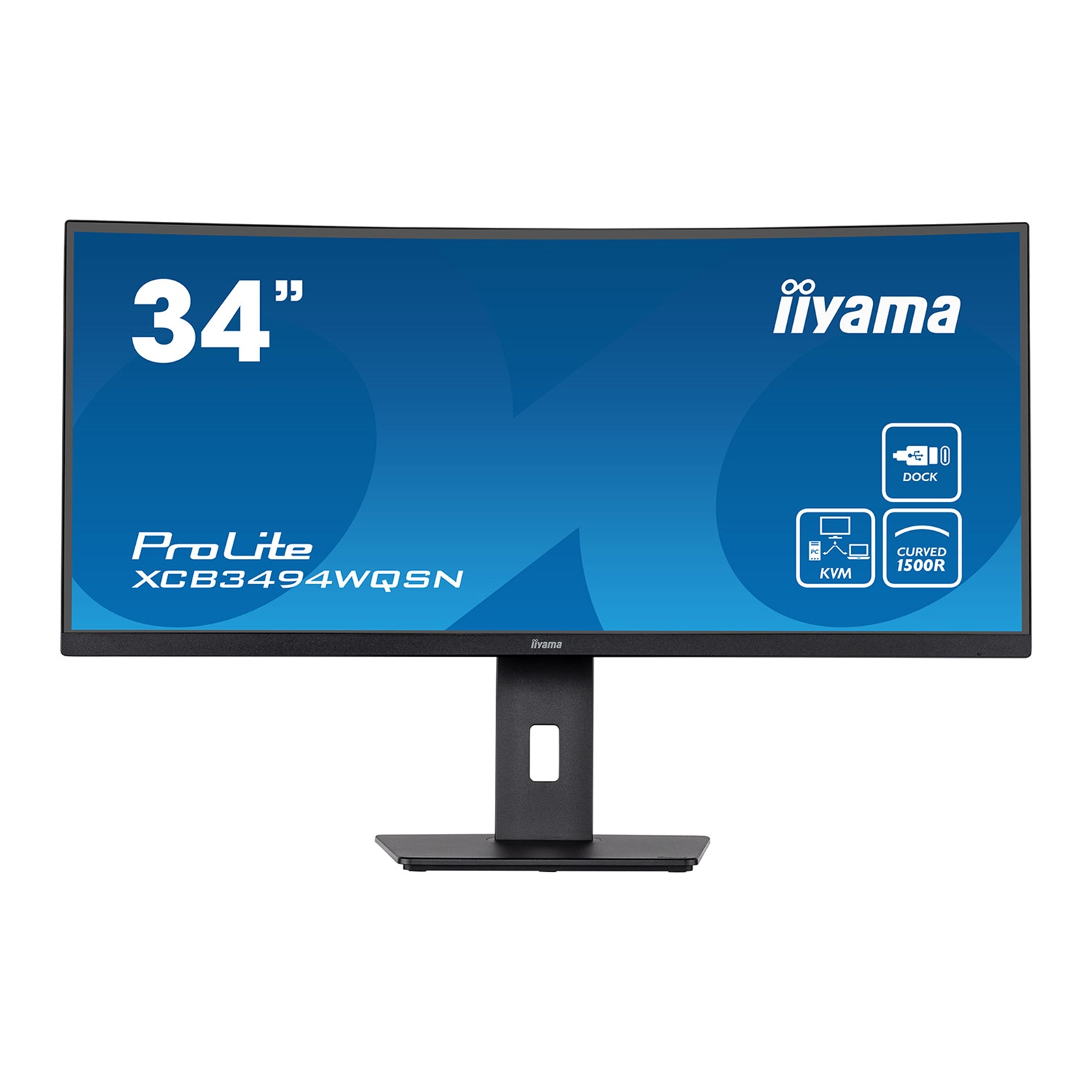

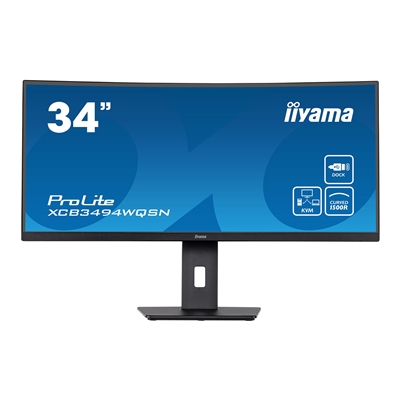

PROLITE XCB3494WQSN-B5
34 Inch UWQHD curved with USB-C dock, KVM switch and 150mm height adjustable stand
Inspired by the curve of the human eye, the 1500R curved VA screen offers superb images along with a comfortable and immersive viewing experience. Equipped with the KVM switch, the XCB3494WQSN enables you to connect multiple computers which can be operated over one console (monitor, keyboard, mouse). The USB-C dock connector allows you to simplify your workspace by using a single cable to both send the signal from your notebook to your monitor while charging the notebook from the monitor. Additionally, if your monitor is connected to the Internet via a LAN cable, your notebook will automatically be connected to the network.
The 150mm height-adjustable stand ensures you can adjust the screen position to your preferences, and the flicker-free panel with blue light reducer function reduces eye fatigue.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.
USB-C DOCK
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
CURVED DESIGN 1500R
The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you'll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.
ULTRA WIDE - UWQHD
UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.
HAS 150MM
A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity.
Specifications
Display Characteristics
Design
Curved
Diagonal
34", 86.4cm
Panel
VA panel, matte finish
Curved
1500R
Native Resolution
3440 x 1440 @120Hz (4.9 megapixel UWQHD, DisplayPort & USB-C)
Aspect Ratio
21:9
Panel Brightness
300 cd/m²
Static Contrast
3000:1
Advanced Contrast
80M:1
Response Time (MPRT)
0.4ms
Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour Support
16.7mln (sRGB: 99%; NTSC: 72%)
Horizontal Sync
30 - 185kHz
Viewable Area W x H
797.2 x 333.7mm, 31.4 x 13.1"
Pixel Pitch
0.232mm
Colour
matte, black
Interfaces / Connectors / Controls
Signal Input
HDMI x1 (v.2.0, 3440? x ?1440?@ 100Hz)
DisplayPort x1 (v.1.2, 3440? x ?1440?@ 120Hz)
USB HUB
x3 (v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))
USB-C
x1 (3440? x ?1440?@ 120Hz, PD 65W)
USB-C DOCK
x1 (Power delivery 65W, LAN, USB v. 3.2 (Gen 1, 5Gbit))
HDCP
yes
Headphone Connector
yes
RJ45 (LAN)
x1
Features
KVM Switch
yes
Blue Light Reducer
yes
Flicker Free
yes
Adaptive Sync Support
HDMI: 3440 x 1440 @48-100Hz, DP / USB-C: 3440 x 1440 @48-120Hz
Extra
i-Style colour
OSD Languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
Control Buttons
joystick controller: Push (Menu), Up, Down, Left (Eco), Right (Blue Light Reducer), Input, Volume +, Volume -, Power
User Controls
picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD, black tuner), image adjust (video mode adjust, sharp and soft, X-Res technology), colour settings (gamma, 6-axis, colour temp., i-Style colour), signal select, audio adjust (volume, mute), setup menu (OSD H. position, OSD V. position, OSD time, language), extra1 (HDR, FreeSync Premium, HDMI range, MBR), Extra2 (reset, DDCCI, opening logo, LED, USB-C, KVM, USB Standby mode, information)
Speakers
2 x 2W
Convenience
Kensington-lock prepared, DDC2B
Mechanical
Display Position Adjustments
height, swivel, tilt, pivot
Height Adjustment
150mm
Swivel Stand
90°; 45 ° left; 45° right
Tilt Angle
23° up; 5° down
VESA Mounting
100 x 100mm
Cable Management System
yes
Accessories Included
Cables
power, USB, HDMI, DP, USB-C
Other
quick start guide, safety guide
Power Management
Power Supply Unit
internal
Power Supply
AC 100 - 240V, 50/60Hz
Power Usage
56W typical, 0.5W stand by, 05W off mode
Sustainability
Regulations
TCO Certified, CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
TCO Certified
XCB3494WQSN-B5 A
Energy Efficiency Class (Regulation (EU) 2017/1369)
EPEAT
EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Bronze certification means the monitor meets all required criteria. EPEAT Bronze is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.
REACH SVHC
above 0.1%: Lead
Weight & Dimensions
Product dimensions W x H x D
809.5 x 431 (581) x 245.5mm
Box dimensions W x H x D
900 x 480 x 236mm
Weight (without box)
9.4kg
Weight (with box)
12.4kg
