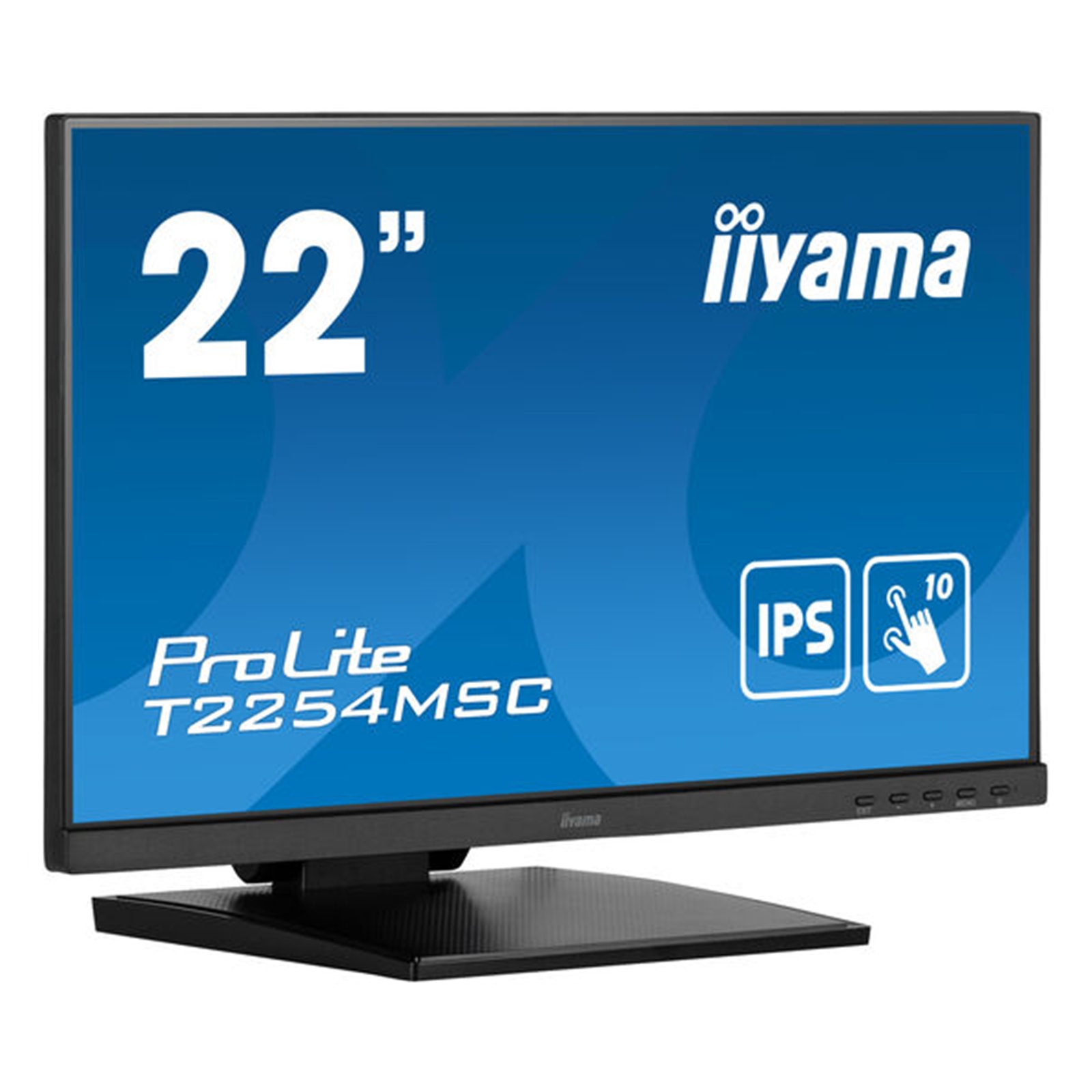

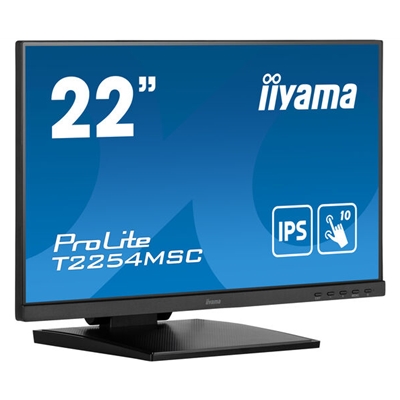

iiyama ProLite T2254MSC-B1AG Touch Screen 22 Inch IPS Monitor, 60hz, 4ms, FreeSync, HDMI, DisplayPort, USB Hub, Int PSU, Speakers, Height Adjust, VESA

Key Specifications
Screen Size (in)22
Max Resolution1920x1080
Refresh Rate60Hz
Response Time4ms
Display PortYes
HDMIYes
Curved ScreenNo
/productImages/80/MOIIY-T2254MSCB1_108209079.JPG
/productImages/80/MOIIY-T2254MSCB1_71076014.jpg
Manufacturer : IIYAMA
EAN : 4948570121212
Manufacturer Part Code : T2254MSC-B1AG
Weight : 0 kg
Login For Pricing

Key Specifications
Screen Size (in)22
Max Resolution1920x1080
Refresh Rate60Hz
Response Time4ms
Display PortYes
HDMIYes
Curved ScreenNo
Manufacturer :
IIYAMA

EAN :
4948570121212

Manufacturer Part Code :
T2254MSC-B1AG

Weight :
0 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2254MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2254MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

SPEAKERS
This LED monitor is equipped with two stereo speakers.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
Manufacturer's Website:
Warranty:
DESIGN
Certification CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA
Product colour Black
Market positioning Business
DISPLAY
Pixel pitch 0.274 x 0.274 mm
Contrast ratio (typical) 1000:1
Horizontal scan range 30 - 83 kHz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display diagonal 54.6 cm (21.5")
Response time 4 ms
Display resolution 1920 x 1080 pixels
Display diagonal (metric) 55 cm
Touchscreen Yes
Contrast ratio (dynamic) 50000000:1
Maximum refresh rate 60 Hz
Touchscreen technology Capacitive
Display technology LED
Number of simultaneous touchpoints 10
Native aspect ratio 16:9
HD type Full HD
Panel type IPS
Screen shape Flat
Display number of colours 16.7 million colours
Display brightness (typical) 250 cd/m²
ENERGY MANAGEMENT
Power consumption (typical) 19 W
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Energy efficiency scale A to G
Energy efficiency class (SDR) E
Energy consumption (SDR) per 1000 hours 16 kWh
European Product Registry for Energy Labelling (EPREL) code 1339100
ERGONOMICS
Cable lock slot Yes
Height adjustment Yes
Tilt angle range 3.5 - 85°
On Screen Display (OSD) Yes
Panel mounting interface 100 x 100 mm
Height adjustment 34.3 cm
Cable lock slot type Kensington
VESA mounting Yes
MULTIMEDIA
RMS rated power 5 W
Built-in speaker(s) Yes
Number of speakers 2
OTHER FEATURES
Certification CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA
Touchscreen Yes
Number of simultaneous touchpoints 10
PACKAGING CONTENT
Cables included HDMI, USB
Quick start guide Yes
Stand included Yes
PACKAGING DATA
Package weight 6.9 kg
Cables included HDMI, USB
Package depth 174 mm
Package height 389 mm
Package width 599 mm
Quick start guide Yes
Stand included Yes
PERFORMANCE
Flicker-free technology Yes
PORTS & INTERFACES
HDMI ports quantity 1
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
Headphone out Yes
Built-in USB hub Yes
Number of upstream ports 2
SUSTAINABILITY
European Product Registry for Energy Labelling (EPREL) code 1339100
WEIGHT & DIMENSIONS
Width (with stand) 488.5 mm
Height (with stand) 343 mm
Depth (with stand) 238.5 mm
Weight (without stand) 2.7 kg
Weight (with stand) 4.9 kg
