Target Components

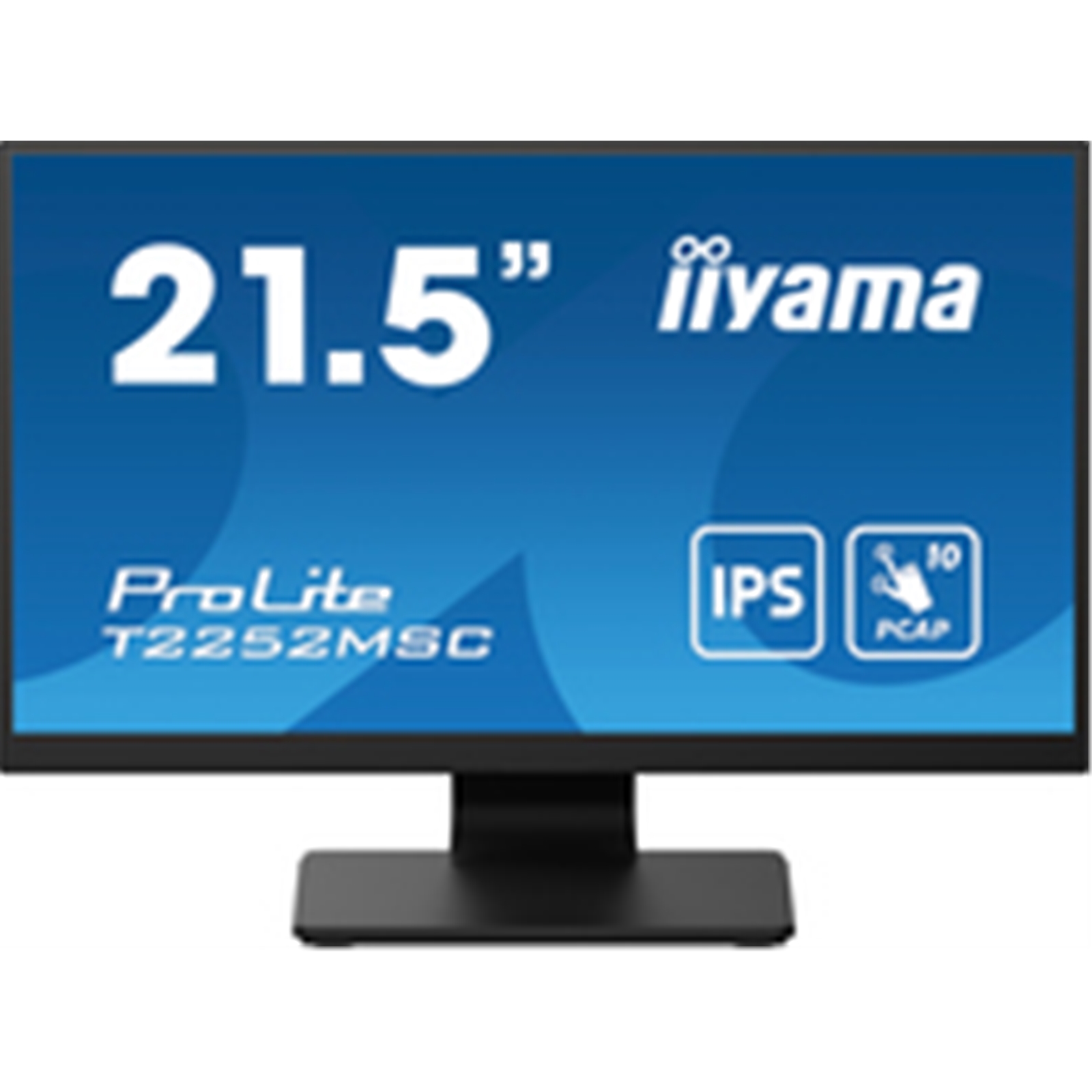

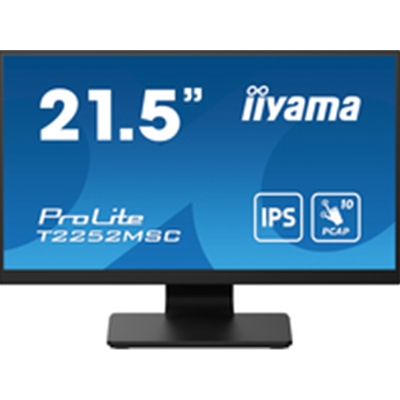

ProLite T2252MSC-B2
21.5" PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2252MSC-B2 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2252MSC-B2 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

Speakers and headphones
This LED monitor is equipped with two stereo speakers.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Specifications

Display

Diagonal
21.5", 54.5cm

Panel
IPS panel technology

Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect ratio
16:9

Panel brightness
250 cd/m²

Brightness
225 cd/m² with touch

Light transmittance
90%

Static contrast
1000:1

Response time (MPRT)
5ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 83kHz

Viewable area W x H
478.6 x 260mm

Pixel pitch
0.249mm

Colour
matte, black

Touch
Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

INTERFACES, CONNECTORS, CONTROLS

Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

HDCP
yes

Audio output
Mini jack x1
Speakers 2 x 1W

USB HUB x2 (USB 3.2 Gen 1 (5Gbps, 5V, 900mA))

FEATURES

Extra
Anti-fingerprint coating, touch support with gloved hand (thickness +2mm)

Glass hardness
7H

OSD key lock
yes

General
OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit

User controls
picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX

MECHANICAL
Tilt angle
22° up; 5° down

VESA mounting
100 x 100mm

ACCESSORIES INCLUDED

Cables
power, USB, HDMI

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit internal

Power supply
AC 50 - 60V, 100/240Hz

Power usage
11W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D 493.5 x 361.5 x 239.5mm
Weight (without box) 4.5kg
EAN code 4948570121809
