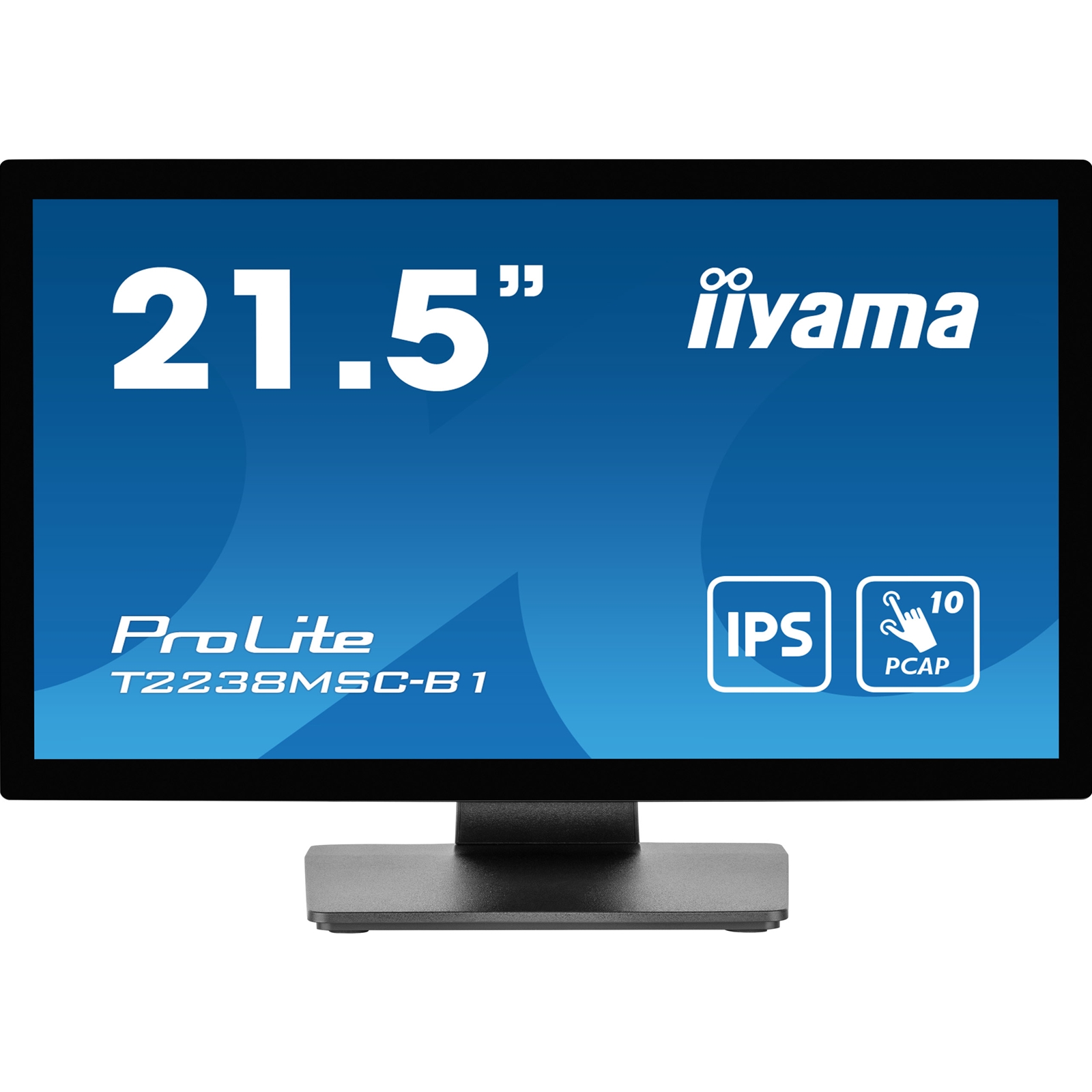

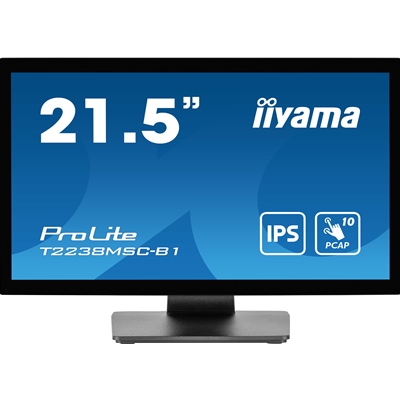

Prolite T2238MSC-B1 21.5? 10pt Optical Bonded PCAP Touchscreen Monitor with IPS Panel Technology, Edge-to-Edge Glass Design, Anti-Fingerprint Coating and Metal Housing
The Full HD (1920x1080) monitor ProLite T2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.

The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.

Optical Bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

IPS Technology
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

Scratch Resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Speakers
This LED monitor is equipped with two stereo speakers.

Display

Design
Edge to edge glass

Diagonal
21.5"

Panel
IPS

Native Resolution
1920 x 1080 (2.1 megapixel Full HD)

Aspect Ratio
16:9

Panel Brightness
600 cd/m²

Brightness
525 cd/m² with touch

Light Transmittance
87%

Static Contrast
1000:1

Response Time (GTG)
5ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln

Horizontal Sync
30 - 83kHz

Viewable Area (W x H)
479 x 260mm, 20.2 x 11.8"

Bezel Width (sides, top, bottom)
17mm, 19.8mm, 19.8mm

Pixel Pitch
0.249mm

Bezel Colour and Finish
black, matte

Touch

Touch Points
10 (HID, only with supported OS)

Touch Method
stylus, finger, glove

Touch Interface
USB

Supported Operating Systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Interfaces / Connectors / Controls

Digital Signal Input
HDMI x 1
DisplayPort x 1

Audio Output
Speakers 2 x 2W

HDCP
yes

USB Hub
x 2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))

Features

Extra
Optical bonding PCAP, metal housing, anti fingerprint coating, water proof touch function

Glass Thickness
3.6mm

Glass Hardness
7H

60950 Ball Drop Test
yes

Water and Dust Protection
IP1X (front)

Housing (bezel)
metal

OSD Key Lock
yes

General

OSD Languages
EN, DE, FR, CN, RU, JP, NL, PL

Control Buttons
Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power

User Controls
Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)

Blue Light Reducer
yes

Plug&Play
DDC2B

Mechanical

Orientation
landscape, portrait, face-up

Fanless Design
yes

VESA Mounting
100 x 100mm

Accessories Included

Cables
power, USB, HDMI

Guides
quick start guide, safety guide

Cable Cover
yes

Power Management

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
17W typical, 1.5W stand by, 0.3W off mode

sustainability

Regulations
CE, TUV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus

Energy Efficiency Class (Regulation (EU) 2017/1369)
D

REACH SVHC
above 0.1%: Lead

Dimensions / Weight

Product Dimensions (W x H x D)
512.5 x 353.5 x 239.5mm

Box Dimensions (W x H x D)
625 x 430 x 150mm

Weight (without box)
6.8kg

Weight (with box)
8.1kg
