Target Components

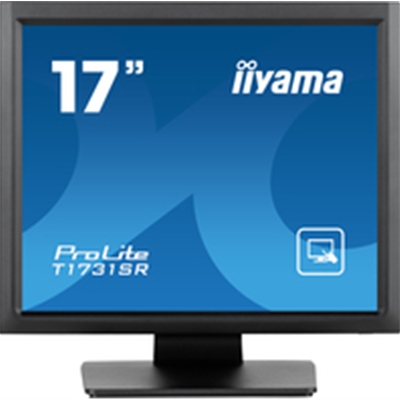

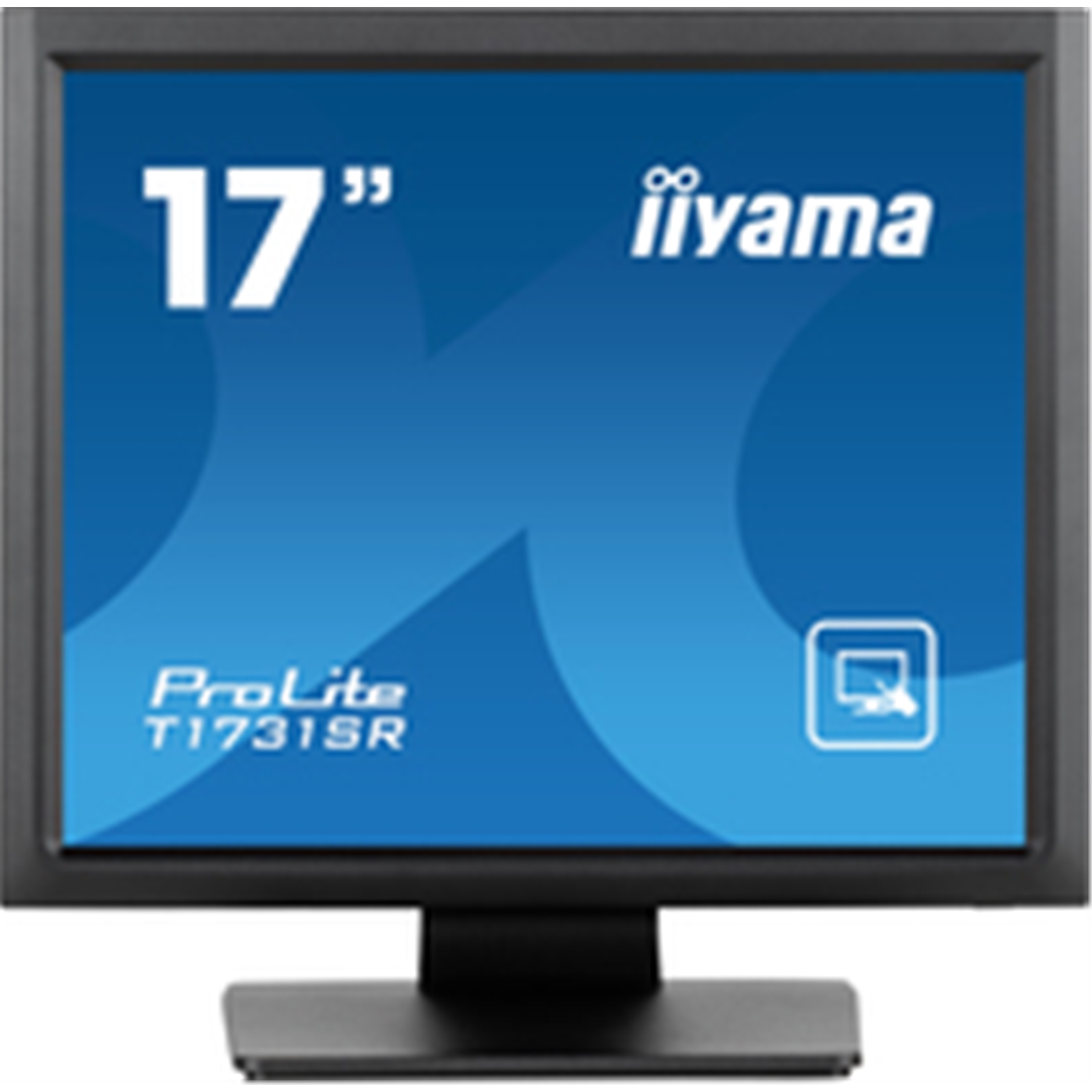

ProLite T1731SR-B1S
17" Touchscreen with 5-wire Resistive Touch Technology
The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

Speakers
This LED monitor is equipped with two high quality stereo speakers.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Touch technology - Resistive
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.

Specifications

Display

Diagonal
17", 43cm

Panel
TN

Native resolution
1280 x 1024 (1.3 megapixel)

Aspect ratio
5:4

Panel brightness
250 cd/m²

Light transmittance
80%

Static contrast
1000:1 with touch

Response time (MPRT)
5ms

Viewing zone
horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°

Colour support
16.7mln

Horizontal Sync
31.5 - 80kHz

Viewable area W x H
338 x 270mm, 13.3 x 10.6"

Pixel pitch
0.264mm

Colour
matte, black

TOUCH
Touch technology
serial resistive

Touch points
1

Touch method
stylus, finger, glove

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES, CONNECTORS, CONTROLS

Analog signal input
VGA x1

Digital signal input
HDMI x1
DisplayPort x1

Audio output
Speakers 2 x 1W

HDCP
yes

FEATURES

Water and dust protection
IP54 (front)

OSD key lock
yes

General
OSD languages
EN, DE, FR, ES, IT, CN, JP

Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power

User controls
contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared

MECHANICAL

Display position adjustments
tilt

Tilt angle
90° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI, Audio, DP

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage20W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D 387 x 378 x 239.5mm
Weight (without box) 5.4kg
