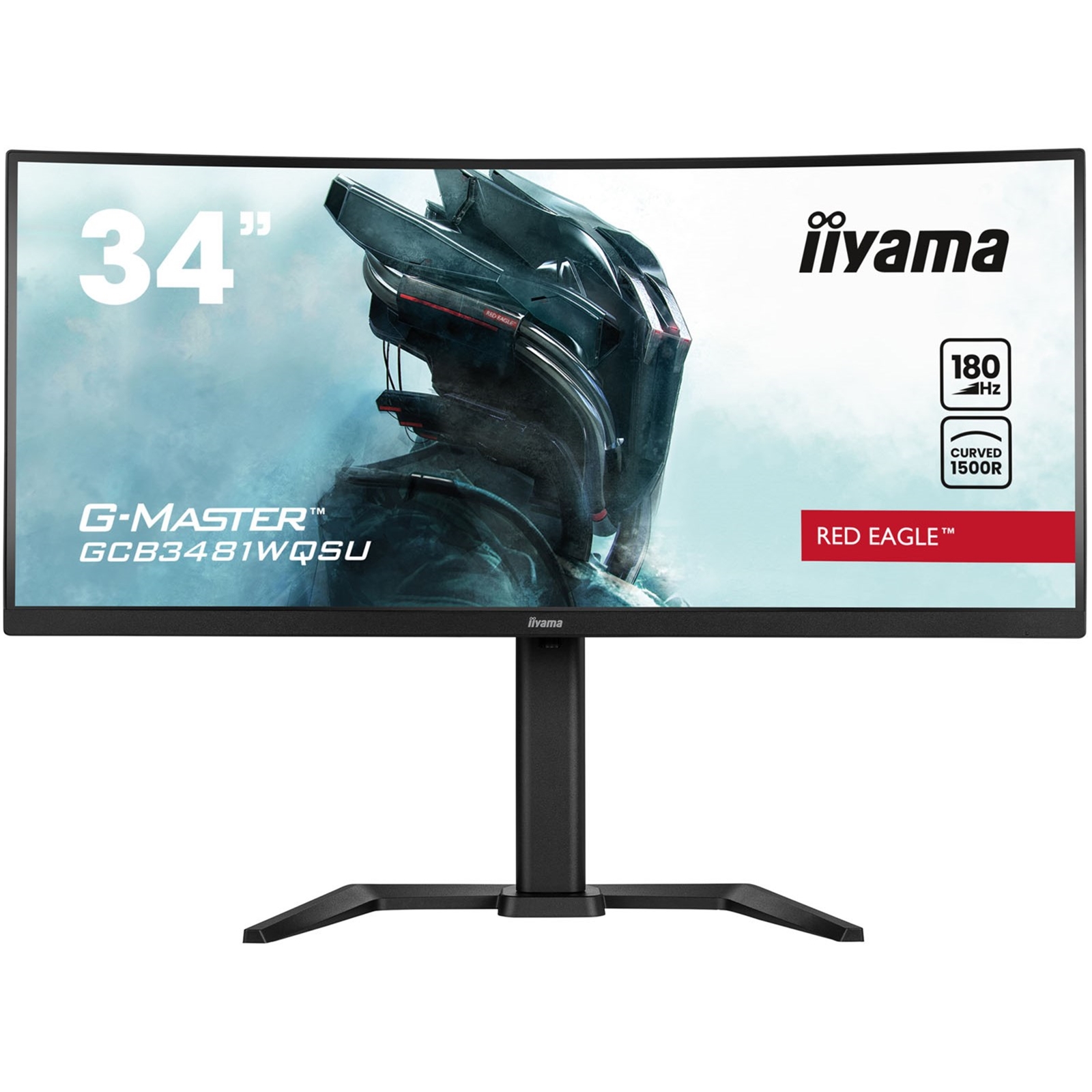

iiyama G-MASTER Red Eagle GCB3481WQSU-B1 34 inch Ultra-Wide Curved Monitor, 3440 x 1440, 0.3ms, HDMI, DisplayPort, USB Hub, Freesync, 180Hz, Speakers, Black, Internal PSU, Height Adjustable, VESA
The 1500R curved VA panel with 180Hz refresh rate, 0.3ms MPRT and 3440x1440 resolution, guarantees superb image quality and a comfortable and very realistic viewing experience.The height adjustable stand ensures total flexibility for your perfect screen position. The Black Tuner function gives you total control over the dark scenes and ensures details are always clearly visible.

Curved Design 1500R
The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.

FreeSync™ Technology
This monitor guarantees low input latency and low framerate compensation putting an end to any tearing or stuttering issues at virtually any framerate.

Black Tuner
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.


Specifications

Display

Diagonal
34"

Panel
VA - CURVED

Native resolution
3440 x 1440 @ 180Hz

Aspect ratio
21:9

Panel brightness
500 cd/m²

Static contrast
4000:1

Advanced contrast
80M:1

Response time (MPRT)
0.3ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
48 - 180kHz

Viewable area W x H
797.22 x 333.72mm, 31.4 x 13.1"

Pixel pitch
0.232mm

Colour
matte, black

INTERFACES, CONNECTORS, CONTROLS

Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

USB HUB
x4 (v.3.2 (Gen 1, 5Gbit; DC5V, 900mA))

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
Yes

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit

User controls
picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
tilt

Tilt angle
22° up; 5° down

Height Adjustable
150mm

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power (1.8m), USB (1.8m), HDMI (1.8m), DP

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit internal

Power supply
AC 50 - 60V, 100/240Hz

Power usage
22W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS

Product dimensions W x H x D 809.5 x 435 (585) x 290mm
Box dimensions W x H x D 900 x 480 x 236mm
Weight (without box) 9.4kg
Weight (without stand) 6.7kg
Weight (with box) 12.4kg
EAN code 4948570124251
