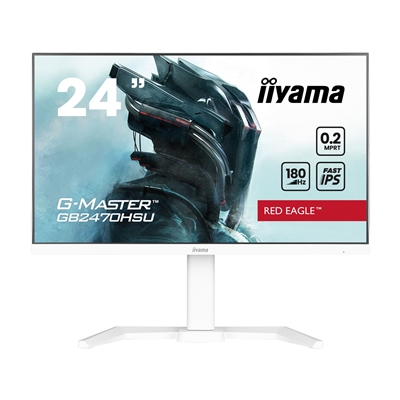

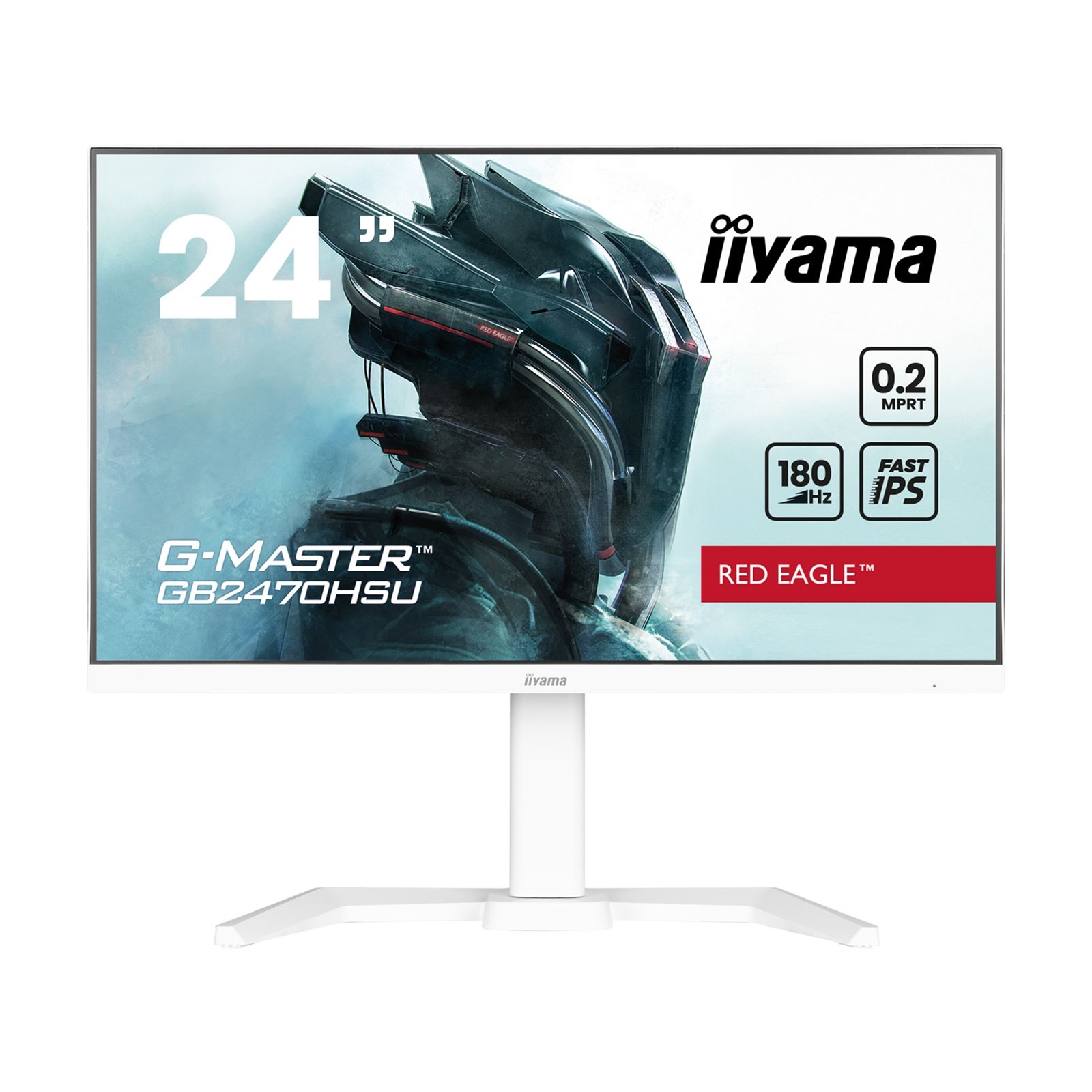

RED EAGLE ™ G-MASTER GB2470HSU-W6

Unleash your full gaming potential with the Fast IPS GB2470HSU Red Eagle
Gain the competitive edge you need to unlock your full gaming potential with the 24'' GB2470HSU monitor. Featuring an ultra-fast 0.2ms MPRT and a 180Hz refresh rate, this monitor ensures smooth gameplay. Armed with Adaptive Sync you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Additionally, the monitor is equipped with an ergonomic 150mm height adjustable stand, allowing you to customize the monitor to your preferences.

Fast IPS
vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.2ms Moving Picture Response Time (MPRT).

180Hz & 0.2ms MPRT
With 180Hz refresh rate and 0.2ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

Black Tuner
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

Speakers and Headphones
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!

Specifications

Display Characteristics:
Diagonal
23.8", 60.5cm

Panel
Fast IPS

Native resolution
1920 x 1080 @180Hz (2.1 megapixel Full HD, DisplayPort)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
1000:1

Advanced contrast
80M:1

Response time (MPRT)
0.2ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln 8bit

Horizontal Sync
30 - 225kHz

Viewable area W x H
527 x 296.5mm, 20.7 x 11.7"

Pixel pitch
0.275mm

Colour
matte, white

Interfaces / Connectors / Controls

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
HDMI: 1920 x 1080 @48-180Hz, DP: 1920 x 1080 @48-180Hz

Extra
i-Style Colour

OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control buttons
Signal select/ Exit, + / Volume, - / i-Style Colour, Menu, Power

User controls
picture adjust (contrast, brightness, OD, ACR, ECO, Black Tuner, MBR, gamma), input select (input source), audio adjust (volume, mute), store user settings (user modes), colour settings (colour temperature, 6-Axis, user preset), image adjust (i-Style colour, X-Res Technology, sharp & soft, HDMI range, direct drive mode, video mode adjust), language, setup menu (OSD H. position, OSD V. position, OSD time, opening logo, OSD rotate, Adaptive Sync, LED, DDC/CI, USB BC), display information, reset

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared, DDC2B, Mac OSX

Mechanical
Display position adjustments
swivel, tilt, pivot (rotation both sides)

Height adjustment
150mm

Rotation (PIVOT function)
90°

Swivel stand
90°; 45° left; 45° right

Tilt angle
23° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

Accessories
Cables
power, USB, HDMI, DP

Other
quick start guide, safety guide

Power Management
Power supply unit
internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
18W typical, 0.5W stand by, 0.3W off mode

Dimensions / Weight
Product dimensions W x H x D
539.5 x 505 x 171mm

Box dimensions W x H x D
610 x 398 x 157mm

Weight (without box)
4.5kg

Weight (with box)
6.3kg

EAN code
4948570123933
