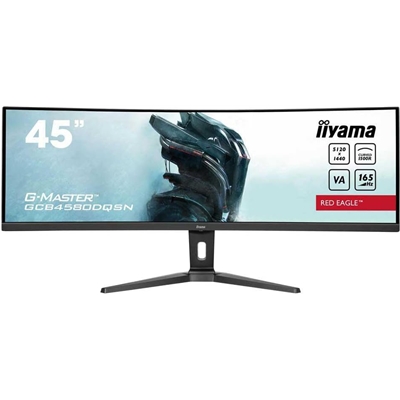

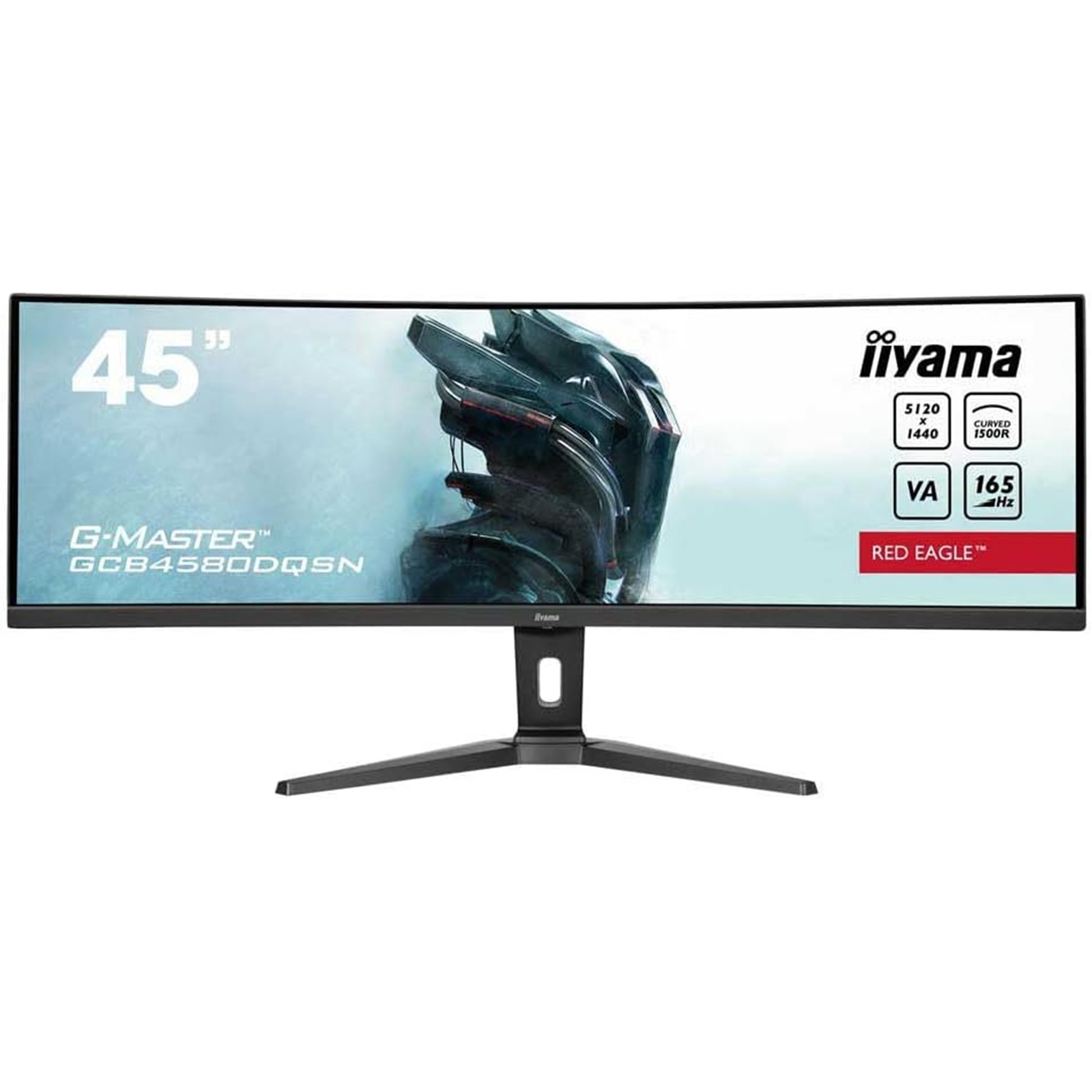

iiyama G-Master Red Eagle curved gaming monitor GCB4580DQSN-B1 45 Inch Height adjustable, Dual QHD, 165Hz, 0.8ms, USB-C Dock, HDMI, Display Port, USB Hub

Immerse yourself in the game with the curved 45'' Dual QHD Red Eagle Gaming Display
Unleash a panoramic visual experience and immerse yourself into your gaming world with this ultra-wide DQHD 5120 x 1440 resolution 32:9 display. With 1500R curved VA panel with a 165Hz refresh rate featuring 0.8ms MPRT, delivering a high framerate and smooth yet sharp rendered images with beautiful colour, that brings your games to life.

DQHD
Ultra-wide 32:9 monitors boasting DQHD 5120 x 1440 resolution, also recognized as Dual QHD, guarantee razor-sharp images that bring your games to life. These monitors empower you to organize your gaming setup for an unparalleled gaming experience. You won't miss a single detail!

165HZ & 0.8MS MPRT
With 165Hz refresh rate and 0.8ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

CURVED DESIGN 1500R
The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.

VA PANEL TECHNOLOGY
Guaranteeing excellent contrast ratio making all the nuances between the light and dark colours clearly visible.

BLACK TUNER
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

Specifications

DISPLAY CHARACTERISTICS

Design
3-side borderless

Diagonal
44.5 cm

Panel
VA, matte finish

Curved
1500R

Native Resolution
5120 x 1440 @165Hz (7.4 megapixel DQHD)

Aspect Ratio
32:9

Panel Brightness
450 cd/m²

Static Contrast
3000:1

Advanced Contrast
80M:1

Response Time (MPRT)
0.8ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln 8bit (sRGB: 100%, NTSC: 80%)

Horizontal Sync
30 - 260kHz

Viewable Area (W x H)
1087.5 x 305.9 mm

Pixel Pitch
0.212mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal Input
HDMI x2 (v. 2.1)
DisplayPort x1 (v. 1.4)

USB HUB
x3 (v.3.2 (Gen 1, 5Gbit; DC5V, 900mA))

USB-C DOCK
x1 (Power delivery 90W, LAN, USB v. 3.2 (Gen 1, 5Gbit))

HDCP
yes

Headphone Connector
yes

RJ45 (LAN)
x1

FEATURES

KVM Switch
yes

Blue Light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
yes

Extra
i-Style Colour

HDR
400

OSD Languages
EN, DE, FR, IT, RU, JP, CZ, NL, PL

Control Buttons
navigation button: Menu/Execution, Down (i-Style Colour), Up (Input Select), Right (Volume), Left (Night Mode), Power

User Controls
picture (brightness, contrast, Black Tuner, Sharpness, OD, Adv. Contrast, Night Mode, X-Res Technology), colour (warm, normal, cool, user colour, blue light reducer, gamma), input select, PBP (PBP mode, sub win input, PBP Swap, audio input), audio (volume, mute), i-Style Mode, language, OSD settings (OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu (memory recall, MST, DSC, HDMI, KVM, USB-C, USB BC, video adjust mode, HDMI RGB range, direct drive, Adaptive Sync, MBR, HDR, opening logo, LED)

Speakers
2 x 3W

Convenience
Kensington-lock prepared, DDC/CI, DDC2B, Mac OSX

MECHANICAL

Display Position Adjustment
height, tilt

Height Adjustment
130 mm

Tilt Angle
20° up; 3° down

VESA Mounting
200 x 100 mm

Cable Management System
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI, DP

Other
quick start guide, safety guide

POWER MANAGEMENT

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
37W default, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA

Energy Efficiency Class (Regulation (EU) 2017/1369)
F

REACH SVHC
above 0.1%: Lead

Other
EACH SVHC above 0.1%: Lead

Weight & Dimensions
Product dimensions W x H x D 1090 x 409(539) x 275 mm
Weight (without box) 11.2kg
