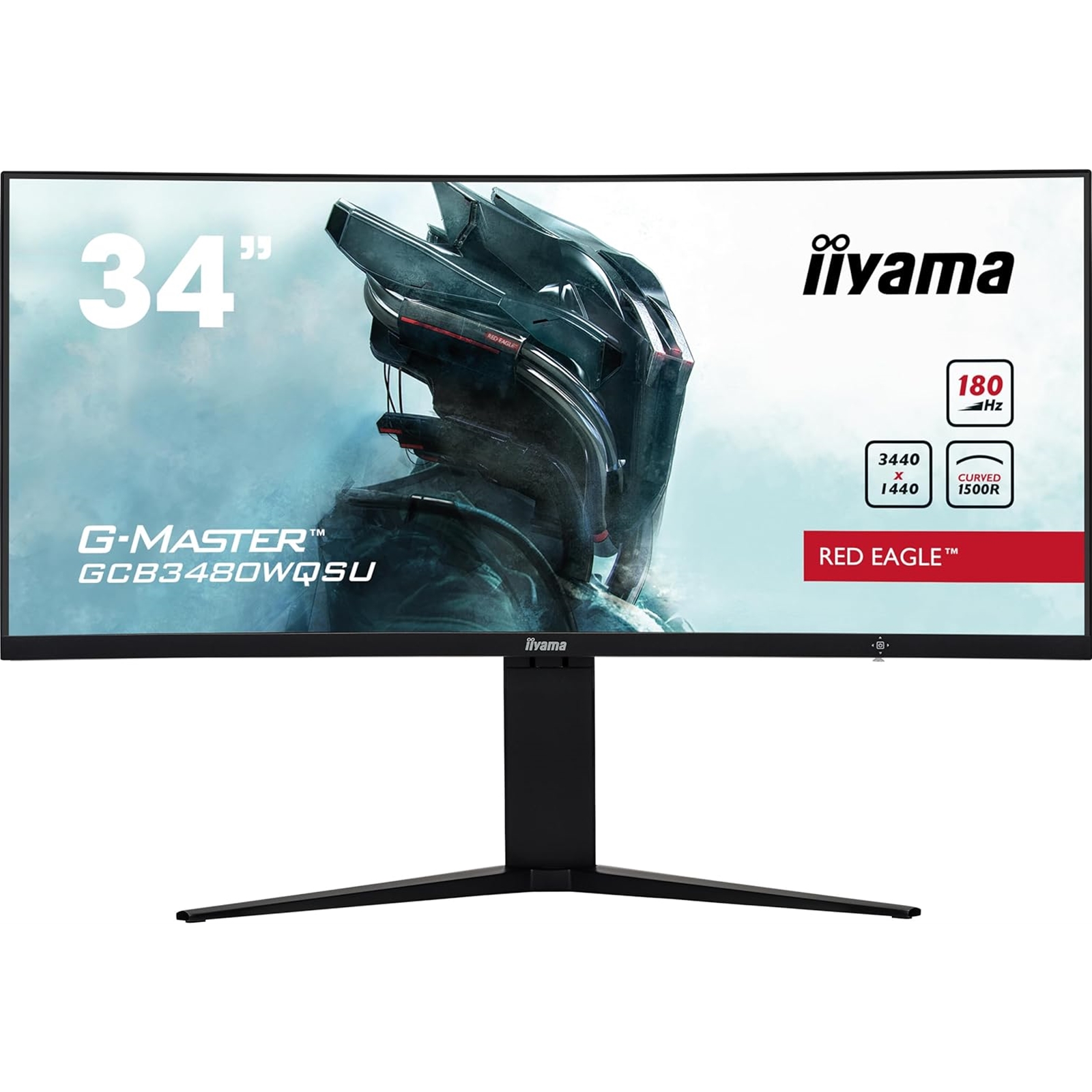

iiyama G-Master GCB3480WQSU-B1 34 Inch Red Eagle Ultra Wide Curved Gaming Monitor, Black, 3440x1440, 0.4ms, 180hz, FreeSync, HDMI, Display Port, USB Hub, Speakers, Int PSU, Height Adjustable, VESA

G-MASTER GCB3480WQSU-B1
Immerse yourself in the game with the curved GCB3480WQSU Red Eagle featuring a game changing 180Hz refresh rate.

The 1500R curved VA panel with 180Hz refresh rate, 0.4ms MPRT and 3440x1440 resolution gives you an immersive viewing experience and guarantees superb image quality. The height adjustable stand ensures you can easily adjust the screen position and intuitive customizable screen settings (predefined or custom) along with the Black Tuner function gives you control over the dark scenes to make sure details are always clearly visible. The HDMI, DisplayPort, USB hub and a headphone connector ensure compatibility across various devices and media platforms and the PbP (picture-by-picture) function allows for simultaneous display of content from up to four different signal inputs.

CURVED DESIGN 1500R
The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.

FREESYNC PREMIUM PRO TECHNOLOGY
This monitor supports HDR content with meticulous colour and luminance. Low input latency and low framerate compensation put an end to any tearing or stuttering issues at virtually any framerate.

ULTRA WIDE - UWQHD
UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.

PBP (PICTURE-BY-PICTURE)
The PbP (picture-by-picture) feature of gaming monitors enables you to display content from up to two distinct signal inputs simultaneously. This screen provides an expansive workspace equivalent to having displays seamlessly merged, eliminating any distracting bezels and the inconvenience of dealing with additional cables. This functionality is ideal for a wide variety of applications, including immersive gaming experiences, and multitasking in style.

PREDEFINED AND CUSTOM GAMING MODES
Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memorize your own settings.

Specifications

DISPLAY CHARACTERISTICS

Diagonal
34"

Panel
VA LED, matte finish

Curved
1500R

Native Resolution
3440 x 1440 @180Hz (4.9 megapixel UWQHD, DisplayPort)

Aspect Ratio
21:9

Panel Brightness
420 cd/m²

Static Contrast
4000:1

Response Time (MPRT)
0.4ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Horizontal Sync
48 - 180kHz

Viewable Area (W x H)
797.2 x 333.7mm, 31.4 x 13.1"

Pixel Pitch
0.232mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal Input
HDMI x2 (max. 3440 x 1440 @100Hz)
DisplayPort x2 (max. 3440 x 1440 @180Hz)

USB HUB
x2 (v.3.2 (Gen 1, 5Gbit; DC5V, 900mA))

HDCP
yes

Headphone Connector
yes

FEATURES

Blue light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
FreeSync Premium Pro - HDMI: 3440 x 1440 @48-100Hz, DP: 3440 x 1440 @48-180Hz

HDR
HDR400

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control Buttons
Navigation Button: Power Switch/Menu/Power Indicator, Scroll Up/Input Select, Scroll Down, Left/Eco Mode, Right/Volume

User Controls
picture adjust (brightness, contrast, ECO, blue light reducer, ACR, OD, MBR, black tuner, colour saturation, gamma), colour setting (colour temp., user preset, i-Style colour), image adjust ( sharp and soft, HDMI range, direct drive mode, video mode adjust, HDR, FreeSync, overclock), OSD (OSD H. position, OSD V. position, OSD time), language, miscellaneous (opening logo, LED, display information, PiP/PbP, PiP position, PiP size), input select (input source, sub source, DP mode), audio setting (volume, mute, audio input), store user setting (user modes), recall

Speakers
2 x 3W

Convenience
Kensington-lock prepared, DDC2B, Mac OSX

MECHANICAL

Display Position Adjustments
height, tilt

Height Adjustment
110 mm

Tilt Angle
20° up; 5° down

VESA Mounting
100 x 100 mm

ACCESSORIES INCLUDED

Cables
power, USB, HDMI, DP

Other
quick start guide, safety guide

POWER MANAGEMENT

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
51W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Energy Efficiency Class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

Weight & Dimensions
Product dimensions W x H x D 808 x 441.5 (551.5) x 256 mm
Weight (without box) 7.6kg
