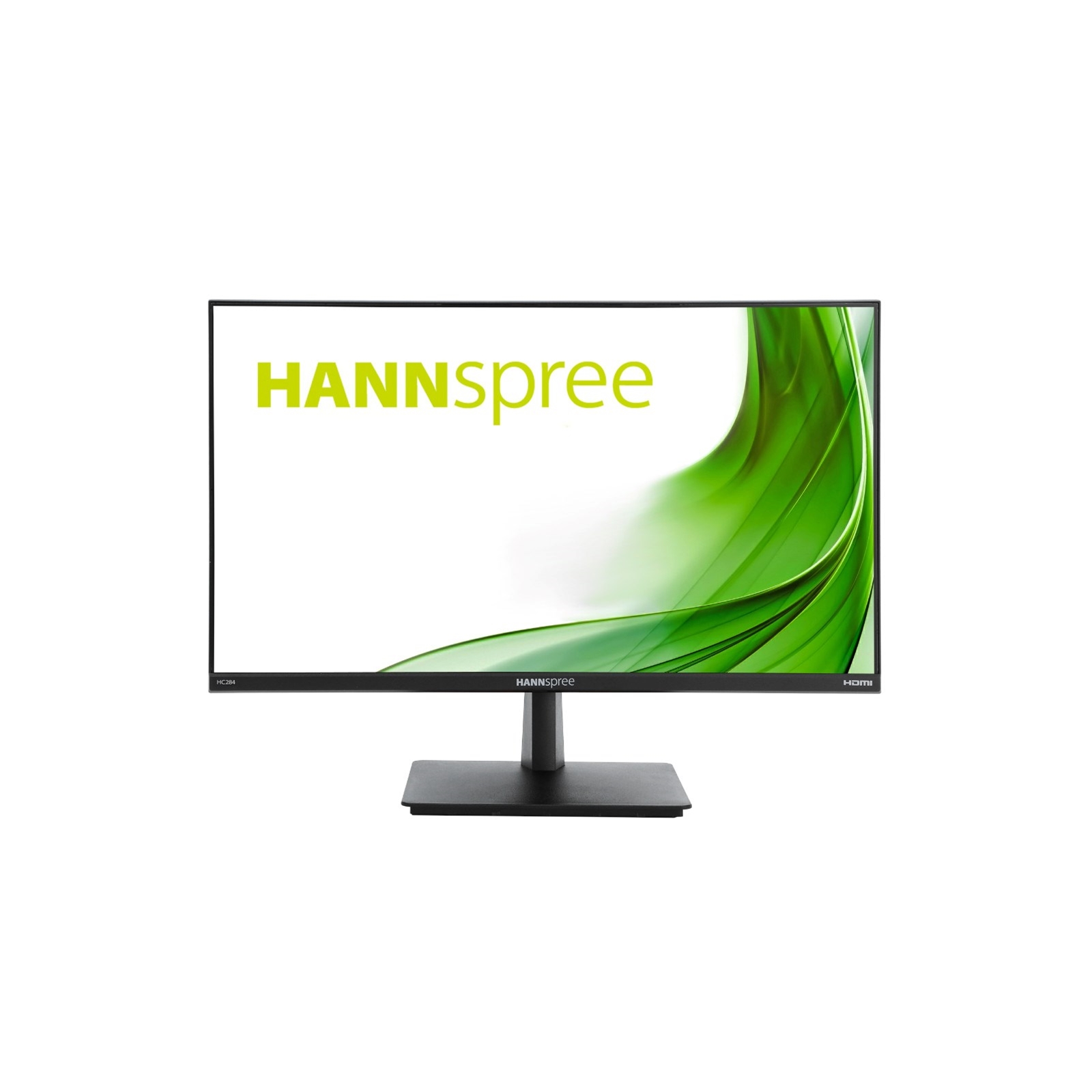

Hannspree HC284PUB 28 Inch 4K IPS Monitor, 5ms, 60Hz, HDMI, Display Port, Speakers, VESA, Tilt, Frameless
28? Big Screen & Stunning 4K UHD Resolution
The HC284PUB with a 3840 x 2160 Ultra-HD (4K) resolution, offers superior picture quality and sharp images with 4x more pixels than 1920 x1080 Full HD resolution monitors, this Ultra HD monitor displays more content to maximize productivity. With 157 pixels per inch (ppi), the panel of the HC284PUB not only delivers you more image detail, you can also enjoy over 300% more workspace compared to conventional FHD monitors.
USB 3.0 HUB for Easy Connections
USB HUB allows user to conveniently connect their plug&play multimedia devices such as USB web cameras, storage devices, peripherals and many other accessories which have USB connection available.
NOTE that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB HUB can provide.
Lifelike Visuals with 178° Ultra-Wide Viewing Angle
The Professional monitor HANNspree HC284PUB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimises colour shift on both horizontal and vertical planes to ensure quality visuals from almost any direction by delivering improved colour accuracy plus increased energy efficiency. The HC284PUB uses a 178°(H) / 178°(V) ultra-wide viewing angle Ultra-HD panel that eliminates colour shift from almost any direction and in nearly every angle.
Speakers & Headphones
The HC284PUB has twin built-in stereo speakers that provide quality, convenient audio.
Enjoy movies, music, games and video calls without the hassle of connecting external speakers. Don't want to disturb anybody? Plug your headset to the headphone socket and turn the volume up.
VESA wall mount
The HC284PUB complies with the VESA standard 100x100mm.
Anti-Glare Coating
The HC284PUB features an anti-glare coating which reduces the reflective light from the panel that otherwise makes the screen difficult to view and causes eye fatigue.
Extensive Connectivity
The HANNspree HC284PUB features a comprehensive hardware interface with plentiful advanced connections to maximize your productivity.
Whether you're working or streaming videos, the HC284PUB gives you smooth 4K UHD content playback, thanks to a 60Hz refresh rate and native 4K UHD support via Display Ports (v 1.2) and 1 x HDMI (v 2.0) port.
PIP & PBP Dual Screen Functions
The HC284PUB offers a PIP (Picture In Picture) function which allows you to watch images from two different sources at the same time. One source device is displayed on the main screen, while a second source device is displayed in a smaller inset window.
You can also display picture from two separate sources equally with PBP (Picture By Picture) function, which divides the screen in half. The output from two different source devices can run simultaneously, side by side.
Key Features:
3840 x 2160 Resolution
Fast 5ms Response Time
300cd/m2 Brightness
IPS Panel
60Hz Refresh Rate
Inputs: HDMI and Display Port
Model
HC284PUB
Monitor Size
28"
Screen Format
16:9
Panel Type
IPS
Brightness
300cd/m2
Contrast Ratio Dynamic
10,000,000:1
Contrast Ratio Typical
1,000:1
Viewing Angle
View Angle (Horizontal - Max) 178 °
View Angle (Vertical - Max) 178 °
Response Time
5ms
Scanning Frequency
Horizontal Frequency 30 ~ 135 kHz
Vertical Frequency 56 ~ 75 Hz
Refresh Rate
60HZ
Maximum Resolution
3840 x 2160
Recommend Resolution
3840 x 2160
Colours
16.7 Million
Connectors
USB Ports 1 x USB-B 3.0 upstream
2 x USB 3.0 downstream
Headphone Ports 1 x 3.5mm Jack
DC Power 1 x DC in
HDMI Ports 1 x HDMI 2.0
DisplayPort In 1 x DisplayPort 1.2
Power Source
Electrical Power Consumption 27 W
Electrical Power Consumption Standby 0.3 W
Power Adaptor Type External
Power Adaptor Output Voltage 12 V
Power Supply Yes
Energy Rating F
Other Features
Wall Mountable Yes
Wall Mount VESA 100 x 100 mm
Tilt (Forward/Backward) Yes
Tilt Range -5 ~ +15 °
Anti-Glare / Anti-Static Anti-Glare, Haze-level 25%, Hard Coating 3H
Speaker
Yes 2 X 2W
Regulations
TUV-GS
CE
FCC
EAC
ISO 9241-307 class I
Rohs compliant
Reach compliant
Wallmount
VESA 100 X 100
Height Adjustment
None
Pivot
No
Swivel
Tilt -5/+15
Cables Included
1 X Display Port cable 1.5m
Power Cable
Power Adaptor
Dimensions (WxHxD)
Width 638.7 mm
Depth 190 mm
Height 462.5 mm
Weight 4.55 kg
Warranty
3 Years
Warranty:
3 Year Manufacturers on Site Warranty, Tel: +44 (0)871 855 24 25 Email: hannsg@repairtech.co.uk (Covers Hannstar & INC)
|
DESIGN
|
| Product colour |
Black |
| Market positioning |
Business |
DISPLAY
|
| Pixel pitch |
0.16 x 0.16 mm |
| Contrast ratio (typical) |
1000:1 |
| Horizontal scan range |
30 - 135 kHz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Vertical scan range |
56 - 75 Hz |
| Display diagonal |
71.1 cm (28") |
| Response time |
5 ms |
| Display resolution |
3840 x 2160 pixels |
| Display diagonal (metric) |
71.1 cm |
| Touchscreen |
No |
| Contrast ratio (dynamic) |
10000000:1 |
| Backlight type |
LED |
| Maximum refresh rate |
60 Hz |
| Display technology |
LED |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| HD type |
4K Ultra HD |
| Panel type |
VA |
| Screen shape |
Flat |
| Display number of colours |
1.073 billion colours |
| Surface hardness |
3H |
| Haze rate |
25% |
| Display brightness (typical) |
300 cd/m² |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
27 W |
| Power supply type |
External |
| AC adapter output voltage |
12 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
F |
| Energy consumption (SDR) per 1000 hours |
27 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
1107417 |
ERGONOMICS
|
| Cable lock slot |
Yes |
| Height adjustment |
No |
| Tilt angle range |
-5 - 15° |
| Picture-in-Picture |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Tilt adjustment |
Yes |
| Cable lock slot type |
Kensington |
| VESA mounting |
Yes |
MULTIMEDIA
|
| RMS rated power |
2 W |
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
OTHER FEATURES
|
| Connection to PC |
3.5 mm |
| Touchscreen |
No |
| Picture-by-Picture (PbP) |
Yes |
PACKAGING CONTENT
|
| Cables included |
DisplayPort |
| Quick start guide |
Yes |
| Stand included |
Yes |
| Power adapter included |
Yes |
| DisplayPort cable length |
1.5 m |
PACKAGING DATA
|
| Package weight |
6.1 kg |
| Cables included |
DisplayPort |
| Package depth |
135 mm |
| Package height |
437 mm |
| Package width |
720 mm |
| Quick start guide |
Yes |
| Warranty card |
Yes |
| Stand included |
Yes |
| Power adapter included |
Yes |
| DisplayPort cable length |
1.5 m |
PERFORMANCE
|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
PORTS & INTERFACES
|
| Audio input |
Yes |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| HDMI ports quantity |
1 |
| Headphone connectivity |
3.5 mm |
| HDMI version |
2.0 |
| HDMI |
Yes |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| Headphone out |
Yes |
| Built-in USB hub |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports |
1 |
| USB Type-A downstream ports quantity |
2 |
SUSTAINABILITY
|
| European Product Registry for Energy Labelling (EPREL) code |
1107417 |
WEIGHT & DIMENSIONS
|
| Width (with stand) |
638.7 mm |
| Height (with stand) |
462.5 mm |
| Depth (with stand) |
190 mm |
| Height (without stand) |
369.2 mm |
| Width (without stand) |
638.7 mm |
| Depth (without stand) |
42.7 mm |
| Weight (with stand) |
4.55 kg |
