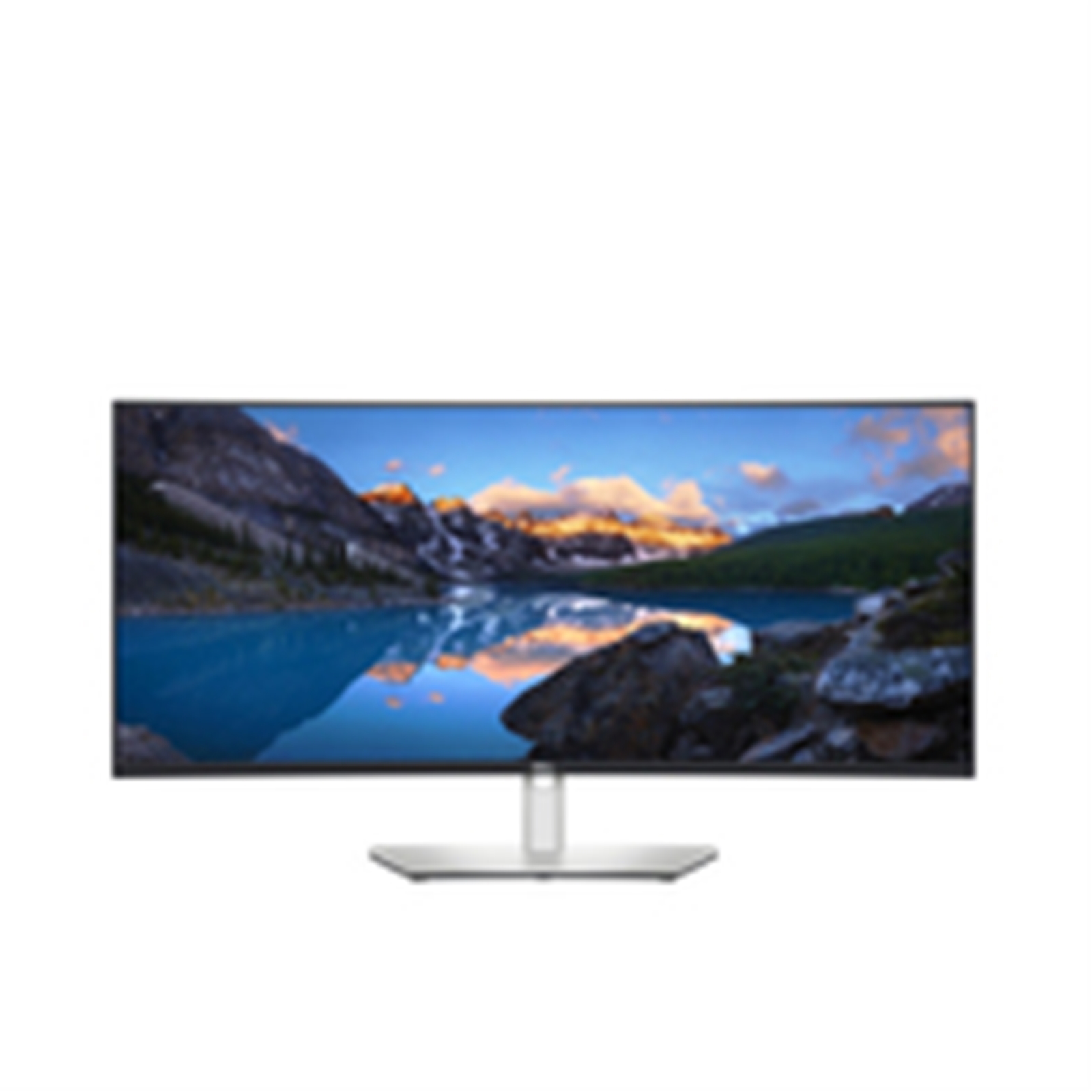

Dell UltraSharp U3824DW - LED monitor - curved - 38 (37.52 viewable) - 3840 x 1600 WQHD+ @ 60 Hz - IPS Black - 300 cd/m - 2000:1 - 5 ms - 2xHDMI DisplayPort USB-C - speakers - with 3 years Basic Hardware Service with Advanced Exchange

Key Specifications
Screen Size (in)38
Max Resolution3840x1600
Refresh Rate60Hz
Response Time5ms
Display PortYes
HDMIYes
Curved ScreenYes
/productImages/80/MODEL-U3824DW_112954036.JPG
/productImages/80/MODEL-U3824DW_77698677.jpg
/productImages/80/MODEL-U3824DW_77698678.jpg
/productImages/80/MODEL-U3824DW_77698679.jpg
/productImages/80/MODEL-U3824DW_77698680.jpg
/productImages/80/MODEL-U3824DW_77698681.jpg
/productImages/80/MODEL-U3824DW_77698682.jpg
/productImages/80/MODEL-U3824DW_77698683.jpg
/productImages/80/MODEL-U3824DW_77698684.jpg
/productImages/80/MODEL-U3824DW_77698685.jpg
/productImages/80/MODEL-U3824DW_77698686.jpg
/productImages/80/MODEL-U3824DW_77698687.jpg
/productImages/80/MODEL-U3824DW_77698688.jpg
/productImages/80/MODEL-U3824DW_77698689.jpg
/productImages/80/MODEL-U3824DW_77698690.jpg
/productImages/80/MODEL-U3824DW_77698691.jpg
/productImages/80/MODEL-U3824DW_77698692.jpg
/productImages/80/MODEL-U3824DW_77698693.jpg
/productImages/80/194520.JPG
Manufacturer : DELL
EAN : 5397184657126
Manufacturer Part Code : DELL-U3824DW
Weight : 0 kg
Login For Pricing

Key Specifications
Screen Size (in)38
Max Resolution3840x1600
Refresh Rate60Hz
Response Time5ms
Display PortYes
HDMIYes
Curved ScreenYes
Manufacturer :
DELL

EAN :
5397184657126

Manufacturer Part Code :
DELL-U3824DW

Weight :
0 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

A different world of productivity
Productivity has never been so vibrant. Introducing the 37.5? WQHD+ monitor with IPS Black panel technology. The curved screen improves field of view while reducing reflection and eye fatigue to give you a comfortable, immersive experience.

Invigorating color
Admire the extraordinary world of your work through vibrant colors and deep blacks with this monitor that offers IPS Black panel technology with 2000:1 contrast ratio and 100% sRGB, 100% REC.709, 98% DCI P3 and 98% Display P3 color coverage. Experience enhanced eye comfort with ComfortView Plus, an always-on, built-in low blue light screen that reduces potentially harmful blue light emissions without compromising color.

Extensive connectivity
Streamline your workflow with a single cable USB-C that transmits data and video signals while delivering up to 90W of power. Connect to a wide variety of devices with super speed USB-A and USB-C ports and expand connectivity with DP 1.4, HDMI 2.1 ports. Get a fast and stable connection with up to 2.5GbE provided by RJ45 with PXE boot, Mac Address pass-thru and Wake on Lan features. RJ45 lock feature gives you the flexibility to lock the wired Ethernet to a chosen PC while continuing to work from dual PC inputs. Conveniently-located USB-C (up to 15W power) and USB-A quick access ports make it easy to plug in external devices, and built-in dual 9W speakers save you the hassle altogether. Dive right into your project with the built-in Dell power button sync that wakes up and powers on your laptop.

Multitask seamlessly
Connect to two PC sources and Auto KVM (keyboard, video, mouse) will seamlessly switch control to the second connected PC. Use the KVM feature to control both PCs with a single keyboard and mouse. The KVM wizard makes setup a breeze.

Built for comfort
Work comfortably all day long by tilting, swiveling and adjusting your monitor height to however best fits you.

Easy management, next-level productivity
Improved multitasking:Organize your screen with Easy Arrange and save profiles with Easy Arrange Memory.

Easy navigation
Share a single keyboard, mouse and monitor between multiple PCs with USB KVM wizard. Quickly switch between PCs with the quick-access menu or hot keys.

Smooth deployment
Manage your fleet of monitors with features that are automatic, comprehensive and compatible with several tools.

Convenient customization
Quickly access your favorite features and functions with the menu launcher and hot keys.

Energy conservation
Save energy with PowerNap, a feature that dims or puts your monitor to sleep when it's not in use.

Specifications

Product Description
Dell UltraSharp U3824DW - LED monitor - curved - 38"

Device Type
LED-backlit LCD monitor - 38"

Energy Class
Class F

Power Consumption (On mode)
34.8 W

Curved Screen
Yes

Features
USB-C hub, KVM ports, USB PD 90 Watt

Panel Type
IPS Black

Aspect Ratio
21:9

Native Resolution
WQHD+ 3840 x 1600 at 60 Hz

Pixel Pitch
0.22908 mm

Brightness
300 cd/m²

Contrast Ratio
2000:1 / 2000:1 (dynamic)

Response Time
5 ms (fast), 8 ms (normal)

Colour Support
1.07 billion colours

Colour Gamut
100% Rec 709, 100% sRGB, 98% DCI-P3, 98% P3

Input Connectors
2xHDMI, DisplayPort, USB-C

Built-in Ethernet
Yes

Display Position Adjustments
Height, swivel, tilt

Screen Coating
Anti-glare 3H hardness

Voltage
AC 100-240 V (50/60 Hz)

Dimensions (WxDxH) - with stand (lowest position)
89.426 cm x 25.121 cm x 44.376 cm

Weight
13.27 kg

Environmental Standards
ENERGY STAR Qualified

Carbon Footprint
906 kg carbon emissions

Compliant Standards
RoHS, BFR-free, PVC-free, TCO Certified Edge

Manufacturer Warranty
3-year warranty
Manufacturer's Website:
Warranty:
BRAND-SPECIFIC FEATURES
Dell Display Manager (DDM) compatibility Yes
DESIGN
Product colour Black, Silver
Heavy metals free Hg (mercury)
Market positioning Office
Feet colour Silver
Front bezel colour Black
DISPLAY
Pixel pitch 0.22908 x 0.22908 mm
Contrast ratio (typical) 2000:1
Horizontal scan range 30 - 100 kHz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Vertical scan range 56 - 76 Hz
Viewable size, horizontal 88 cm
Viewable size, vertical 36.7 cm
Display diagonal 95.2 cm (37.5")
Contrast ratio (typical) 5 - 90%
Response time 8 ms
Display resolution 3840 x 1600 pixels
Display diagonal (metric) 95.25 cm
Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 1200, 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 1600
Supported video modes 480p, 576p, 720p, 1080i, 1080p
Touchscreen No
Backlight type W-LED
Maximum refresh rate 60 Hz
Display technology LCD
Anti-glare screen Yes
Native aspect ratio 21:9
HD type Wide Quad HD+
Pixel density 110.87 ppi
Colour gamut 98%
Panel type IPS
Screen shape Curved
Display number of colours 1.07 billion colours
Surface hardness 3H
sRGB coverage (typical) 100%
Response time (fast) 5 ms
Display brightness (typical) 300 cd/m²
Heat dissipation (typical) 118.74 BTU/h
RGB colour space DCI-P3
Screen curvature rating 2300R
Colour gamut standard DCI-P3
ENERGY MANAGEMENT
Power consumption (typical) 34.8 W
Power supply type Internal
Power consumption (off) 0.3 W
Power consumption (standby) 0.4 W
Input current 3.2 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 245 W
Energy efficiency scale A to G
Energy efficiency class (SDR) F
Energy efficiency class (HDR) Not available
Energy consumption (SDR) per 1000 hours 35 kWh
European Product Registry for Energy Labelling (EPREL) code 1361189
ERGONOMICS
Cable lock slot Yes
LED indicators Yes
Height adjustment Yes
Swivel angle range -30 - 30°
Tilt angle range -5 - 21°
Pivot No
On Screen Display (OSD) Yes
Cable management Yes
Panel mounting interface 100 x 100 mm
Height adjustment 12 cm
Swivelling Yes
Tilt adjustment Yes
Cable lock slot type Kensington
VESA mounting Yes
MULTIMEDIA
RMS rated power 18 W
Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
NETWORK
Wi-Fi No
OPERATIONAL CONDITIONS
Operating altitude 0 - 5000 m
Operating relative humidity (H-H) 10 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Non-operating altitude 0 - 12192 m
OTHER FEATURES
Maximum resolution 3840 x 1600 pixels
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Heavy metals free Hg (mercury)
Touchscreen No
USB Power Delivery Yes
Picture-by-Picture (PbP) Yes
Compliance certificates RoHS
PACKAGING CONTENT
Remote control included No
Cables included AC, DisplayPort, HDMI, USB Type-C, USB Type-C to USB Type-A
Quick start guide Yes
Stylus included No
Stand included Yes
Power adapter included Yes
HDMI cable length 1.8 m
DisplayPort cable length 1.8 m
PACKAGING DATA
Package weight 19 kg
Remote control included No
Cables included AC, DisplayPort, HDMI, USB Type-C, USB Type-C to USB Type-A
Quick start guide Yes
Stylus included No
Stand included Yes
Power adapter included Yes
HDMI cable length 1.8 m
DisplayPort cable length 1.8 m
PERFORMANCE
NVIDIA G-SYNC No
AMD FreeSync No
Flicker-free technology Yes
Low Blue Light technology Yes
PORTS & INTERFACES
Audio output Yes
Microphone in No
PC Audio in No
HDMI ports quantity 2
HDMI version 2.1
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
Built-in KVM switch Yes
HDCP version 1.4
DisplayPort version 1.4
Headphone out No
Built-in USB hub Yes
USB hub version 3.2 Gen 2 (3.1 Gen 2)
USB upstream port type USB Type-C
USB Type-A downstream ports quantity 5
USB Type-C downstream ports quantity 2
USB Type-C DisplayPort Alternate Mode Yes
USB Power Delivery Yes
USB Power Delivery up to 90 W
Number of USB Type-C upstream ports quantity 2
SUSTAINABILITY
Sustainability compliance Yes
Sustainability certificates ENERGY STAR, TCO
Doesn't contain Arsenic, PVC/BFR
European Product Registry for Energy Labelling (EPREL) code 1361189
TECHNICAL DETAILS
Compliance certificates RoHS
WEIGHT & DIMENSIONS
Width (with stand) 894.3 mm
Height (with stand) 443.8 mm
Depth (with stand) 251.2 mm
Bezel width (side) 9.97 mm
Bezel width (top) 1.05 cm
Bezel width (bottom) 1.53 cm
Weight (without stand) 8.79 kg
Height (without stand) 392.3 mm
Width (without stand) 894.3 mm
Depth (without stand) 102.3 mm
Weight (with stand) 12.8 kg
