Home    Graphics, Displays & Software    Displays    Monitors    MOAOC-Q27B3MA

Target Components

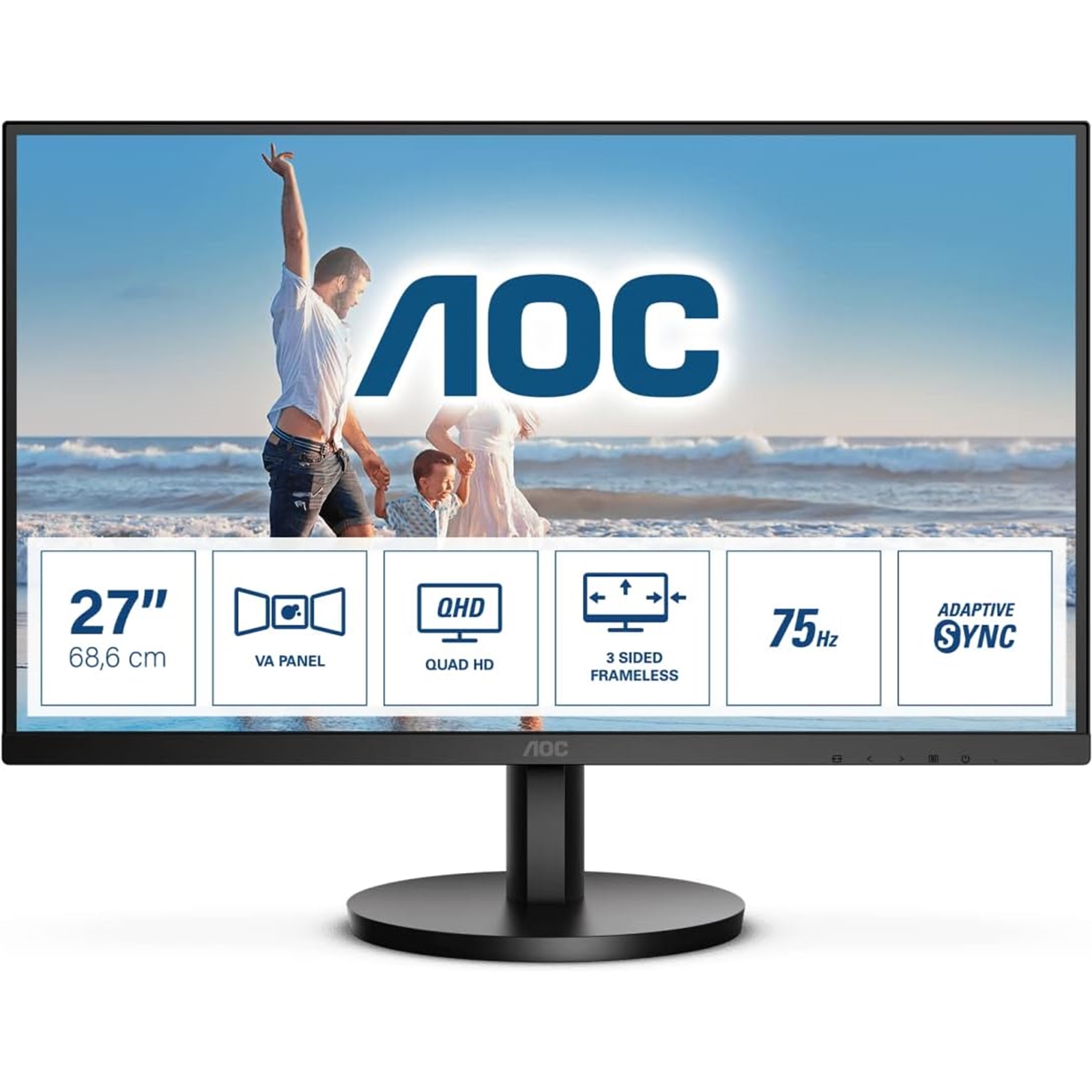

AOC Q27B3MA 27 Inch QHD LED Monitor 75Hz Aspect Ratio 16:9 HDMI/Displayport DP Response Time 4 ms 2560x1440

Key Specifications
Screen Size (in)27
Max Resolution2560x1440
Refresh Rate75Hz
Response Time4ms
Display PortYes
Height AdjustableYes
Curved ScreenNo
/productImages/80/MOAOC-Q27B3MA.JPG
/productImages/80/190600.JPG
/productImages/80/190601.JPG
/productImages/80/190602.JPG
/productImages/80/190603.JPG
/productImages/80/190604.JPG
/productImages/80/190605.JPG
Manufacturer : AOC
EAN : 4038986180429
Manufacturer Part Code : Q27B3MA
Weight : 6.45 kg
Login For Pricing

Key Specifications
Screen Size (in)27
Max Resolution2560x1440
Refresh Rate75Hz
Response Time4ms
Display PortYes
Height AdjustableYes
Curved ScreenNo
Manufacturer :
AOC

EAN :
4038986180429

Manufacturer Part Code :
Q27B3MA

Weight :
6.45 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

QHD Resolution
With 2560 x 1440 resolution, Quad HD (QHD) offers superior picture quality and sharp imagery that reveals the finest details. The widescreen 16:9 aspect ratio provides plenty of space to spread out and work, plus allows you to enjoy games or movies in their original size.

VA Panel
VA Panels (Vertical Alignment) display deeper blacks and a high contrast for extra vivid and bright images.

75Hz Refresh Rate
Get the upper edge! With a 75 Hz refresh rate, the display panel draws 75 frames each second. 75 Hz refresh rate is 25% faster than what is offered on most entry level displays at 60 Hz, while still being affordable and delivering those extra frames gamers need to beat their opponents.

HDMI
HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).

Display Port
DisplayPort offers ultra-fast digital audio and video transmission without quality loss or input lag. Quickly and easily connect a range of devices to your screen, including your computer, laptop, media player, game console and more. It's perfect for professionals as well as the most demanding home users.

Speakers
Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you'll enjoy quality audio without the hassle of connecting external speakers.

Frameless design
Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.

Flicker Free
AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!

Low Blue Light
AOC Lowblue Light protects you from harmful blue light which, during long sessions, has been shown to cause eye strain, headaches, and sleeping disorders. Our Lowblue Light feature reduces the harmful wavelengths emitted without sacrificing color composition, setting the experience free from the worry of eye damage.

Vesa Mount
AOC's Ergo Base stands bring versatility, sturdiness and ease of use in one package. But do you still want to use your wall mount or multi-monitor setup using desk mounts? VESA mounts bring you the uppermost flexibility. Upside-down, in pivot mode, on top of each other, attach your monitor wherever you want using 3rd party mounts and stands thanks to the VESA mount option.

Kensington Lock
Kensington Lock is an anti-theft system, comprising a metal-reinforced hole in the body of the respective device, to use with a metal cable secured with a key/lock system. Kensington locks enable you to secure your AOC monitor during a LAN event, an organisation, or wherever you carry it.

Three-Year Warranty
AOC stands behind the quality of each and every monitor with a generous three-year warranty starting from the original date of purchase. Within the warranty period, any AOC displays with manufacturing defects or faulty components will be repaired or replaced at no additional charge.

Specifications

Display Type
LED-backlit LCD monitor / TFT active matrix

Diagonal Size
27"

Panel Type
VA

Aspect Ratio
16:9

Native Resolution
QHD 2560 x 1440 at 75 Hz

Pixel Pitch
0.2331 mm

Pixel Per Inch
108.8

Brightness
250 cd/m²

Contrast Ratio
4000:1 / 20000000:1 (dynamic)

Colour Support
16.7 million colours

Colour Gamut
102% sRGB (CIE 1931), 72% NTSC (CIE 1931), 82% Adobe RGB (CIE 1976), 83% NTSC (CIE 1976), 96% NTSC (CIE 1976), 76% Adobe RGB (CIE 1931), 75% DCI-P3 (CIE 1931), 76% DCI-P3 (CIE 1976)

Response Time
4 ms (grey-to-grey)

Horizontal Viewing Angle
178

Vertical Viewing Angle
178

Screen Coating
Anti-glare, 6H Hard Coating

Backlight Technology
WLED

Features
Low Blue Light Mode, FreeSync Technology, Adaptive-Sync technology, 3-sided frameless, AOC Flicker-Free Technology

Colour
Black

Dimensions (W x D x H)
61.4 cm x 22.98 cm x 46 cm - with stand

Weight
3.9 kg

Type
Speakers - stereo

Output Power / Channel
2 Watt

Interfaces
HDMI
DisplayPort 1.2
Headphones

Display Position Adjustments
Tilt

Tilt Angle
-3.5/+21.5

VESA Mounting Interface
100 x 100 mm

Features
Security lock slot (cable lock sold separately)

Cables Included
1 x HDMI cable - 1.5 m

MTBF
50,000 hour(s)

Security Slot Type
Kensington security slot

Input Voltage
AC 100-240 V (50/60 Hz)

Power Consumption (Typical)
25 Watt

Power Consumption Stand by
0.5 Watt

Power Consumption (Off Mode)
0.3 Watt

Manufacturer Warranty
Service & Support Limited warranty - 3 years
Manufacturer's Website:
Warranty:
3 Years On Site Swap Out Warranty, . tel 03308284830
DESIGN
Certification True
Product colour Black
Market positioning Home
Detachable stand Yes
Feet colour Black
Front bezel colour Black
Frameless design Yes
DISPLAY
Pixel pitch 0.2331 x 0.2331 mm
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display diagonal 68.6 cm (27")
Response time 4 ms
Display resolution 2560 x 1440 pixels
Display diagonal (metric) 68.6 cm
Touchscreen No
Contrast ratio (dynamic) 20000000:1
Backlight type W-LED
Maximum refresh rate 75 Hz
Display technology LED
Anti-glare screen Yes
Native aspect ratio 16:9
HD type Quad HD
Pixel density 108.8 ppi
Panel type VA
Screen shape Flat
Display number of colours 16.7 million colours
Surface hardness 6H
sRGB coverage (typical) 110%
Adobe RGB coverage 95%
NTSC coverage (typical) 96%
Display brightness (typical) 250 cd/m²
DCI-P3 coverage 88%
ENERGY MANAGEMENT
Power consumption (typical) 25 W
Power supply type Internal
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Socket connector type C5
Energy efficiency scale A to G
Energy efficiency class (SDR) F
Energy efficiency class (HDR) G
Energy consumption (SDR) per 1000 hours 26 kWh
Energy consumption (HDR) per 1000 hours 30 kWh
ERGONOMICS
Cable lock slot Yes
LED indicators Yes
Wall mountable Yes
Tilt angle range -3.5 - 21.5°
Pivot Yes
On Screen Display (OSD) Yes
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages 19
Tilt adjustment Yes
Cable lock slot type Kensington
VESA mounting Yes
MULTIMEDIA
Built-in microphone No
RMS rated power 4 W
Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
OTHER FEATURES
Certification True
Mean time between failures (MTBF) 50000 h
Connection to PC 3.5 mm
Touchscreen No
Light effects No
Exterior finish type Matt
DCI-P3 coverage 88%
Dial point No
PACKAGING CONTENT
Cables included AC
Stand included Yes
Power adapter included Yes
HDMI cable length 1.5 m
PACKAGING DATA
Package weight 6.39 kg
Cables included AC
Package depth 142 mm
Package height 453 mm
Package width 690 mm
Package type Box
Stand included Yes
Power adapter included Yes
HDMI cable length 1.5 m
PERFORMANCE
Fast charging No
Brand-specific features False
NVIDIA G-SYNC No
Flicker-free technology Yes
Low Blue Light technology Yes
VESA Adaptive Sync support Yes
Dial point No
PORTS & INTERFACES
Headphone outputs 1
DVI port No
AC (power) in Yes
HDMI ports quantity 2
Headphone connectivity 3.5 mm
HDMI version 1.4
HDMI Yes
HDCP Yes
DisplayPorts quantity 2
HDCP version 1.4
DisplayPort version 1.2
Headphone out Yes
Mobile High-Definition Link (MHL) No
Built-in USB hub No
WEIGHT & DIMENSIONS
Width (with stand) 614 mm
Height (with stand) 460 mm
Depth (with stand) 229.8 mm
Height (without stand) 363.8 mm
Width (without stand) 614 mm
Depth (without stand) 44.7 mm
Weight (with stand) 3.9 kg
