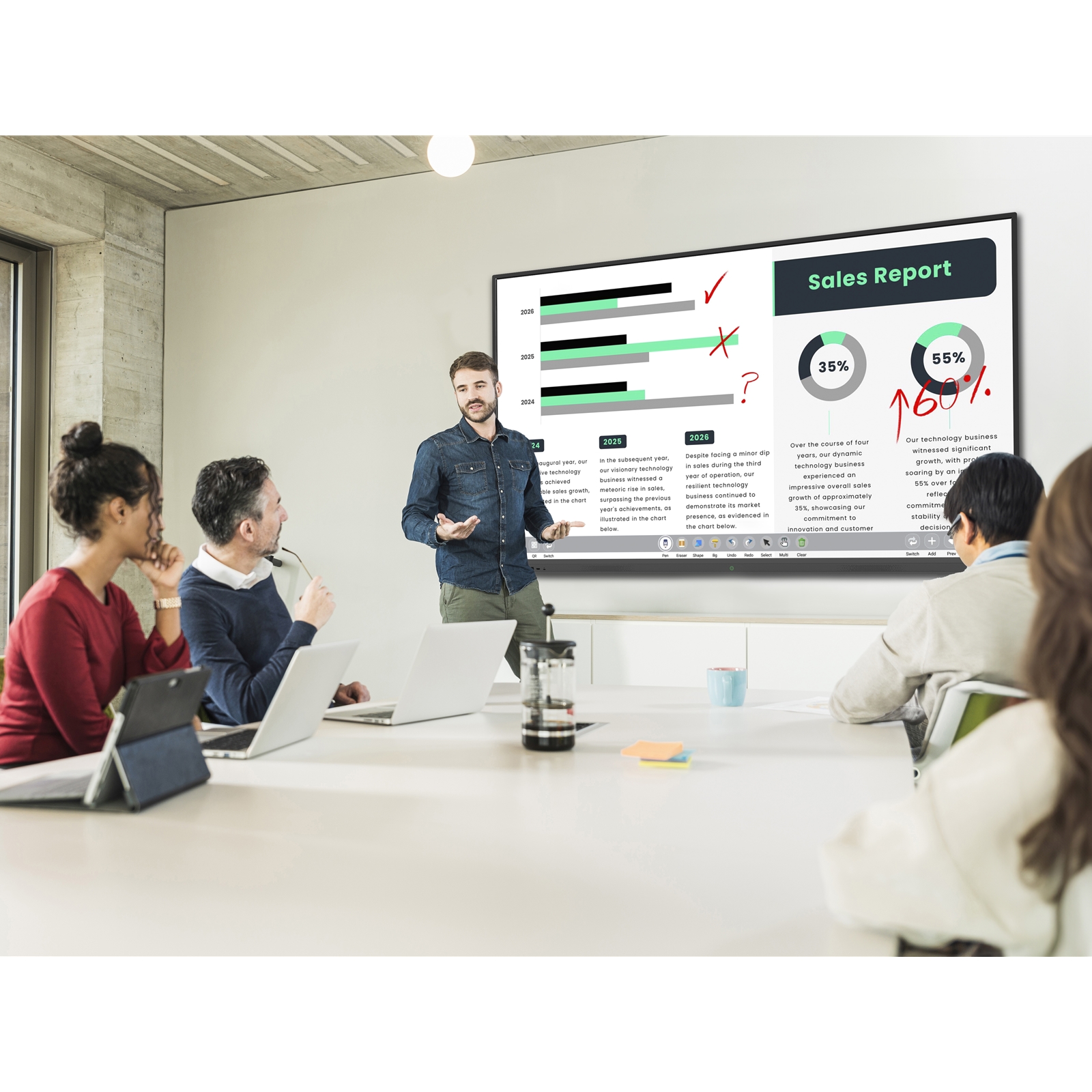

Modern Interactive Whiteboard
The stylish enclosure design really makes this touch screen stand out from the crowd. The bezels are so thin that the display area occupies more than 91% of the overall screen size. Designed with aluminium bezels and a moulded polymer rear, the screen is so lightweight it can even be mounted on a stud wall.

4K Display
The 4K Ultra HD display delivers incredible image quality with four times resolution higher than Full HD. Optimised for viewing distances both near and far the display allows your content to take center stage for all your visual communication.

Introducing MEETINGPAD: The Ultimate Collaboration Tool
State of the art ?MeetingPad' Software brings the 4K Slim Bezel Interactive Touch Display to life. Annotate over office documents, PDFs, images and videos using the internal Android system, you can even annotate on the display of an external input such as a laptop. Wirelessly mirror and file share between your devices and the screen with no additional hardware required. The wireless features are all compatible with Android, Apple and Windows devices and even allow you to annotate and control the screen from your device. There are no subscription or licence charges for this remarkable software.

Multi-Device Wireless Mirroring
Wirelessly project the displays of up to four smartphones, tablets, laptops, PCs or Macs. Using mobile devices you can mirror the display in both directions, and even take control of the touch screen. Mirroring via 5GHz allows for fast response, all without the need of external wires or transmitters.

Easy File Sharing
Once your device is connected you can quickly and easily share documents, videos, images and audio files stored on your smartphone, tablet, laptop or PC directly to the touch screen. You can also share files from the touch screen to your device via email or by scanning a QR code with your mobile or tablet.

Smart Pen Stylus
There are two stylish interactive ?Smart Pens' included. These special styluses allows you to control the display wirelessly from anywhere in the room. You can change the pen tool colour, save annotated documents, navigate through a PowerPoint presentation or website and go back to the ?MeetingPad' home screen.

Slim Bezel
The screens feature an extremely sleek and narrow bezel meaning that the enclosure to display area ratio is very low. Thefront is crafted from segmented aluminium to achieve ultimate precession while the polymer rear keeps the display super slim and lightweight.

Optional Windows OPS PC
We offer two versions of the slot-in OPS Windows PC; one high performance and one more budget friendly. By using a slot-in OPS PC you can have both Android and Windows built in without needing to connect any external devices.

20 Touch Points
Ideal for large group collaboration, up to twenty users can interact with the screen simultaneously when working on group projects.

Easy Access Ports and Controls
As well as having a power and standby button there are also two front facing USB ports. These are ideal for quickly and conveniently connecting USB sticks containing files that you need to access from MeetingPad or the optional OPS PC.

Etched Glass
Improves tactility for smoother touch gestures, especially useful when there is more than one user touching the screen. The anti-glare nano coating also diffuses external light so that images and videos are much clearer.

Integrated Speakers
The screens have two integrated super slim 20W speakers for presentations that include an audio element.

Connectivity
As well as using the built in Android system these displays can also be used as a touch screen monitor by connecting a PC or laptop via HDMI and USB.

Specifications

75 Inch - PT75J
Display Area- 1646x925.5
Unit Size - 1708.2x1026.5x89.1
Package Size - TBC
VESA Holes - 600x400
Net Weight - 54kg
Gross Weight - 69kg
Power Consumption (w) - 250W

Panel
Resolution - 3840x2160
Aspect Ratio - 16:9
Brightness (cd/m²) - 500
Colour - 1.07G
Viewing Angle - 178°
Contrast Ratio - 4,000:1
Lifespan - 80,000 Hours

Touch
Touch Technology - Infrared
Touch Points - 20 (10 Touch Points in MeetingPad Software)
Glass Thickness - 4mm
Response Time - =8ms
Touch Point Accuracy - ±2mm

AV Ports
Front Inputs - USB x3, HDMI-In, Touch USB, USB Type-C
Rear Inputs - HDMI-In x2, USB(2.0) x1, USB(3.0) x1, Touch USB, VGA, VGA Audio In, AV In, AV Out, YPbPr, RS232, RJ45, Earphone, SPDIF

Audio
Speaker Type - 2 x 20W

Environmental
Operating Temperature - -10°C to 50 °C
Storage Temperature - -20°C to 60°C
Operating Humidity - 10% to 90%
Storage Humidity - 10% to 90%

Computer
CPU - Quad-core ARM Cortex-A55
RAM - 4GB
Graphic Engine - Mali-G52 MP2(2EE)
Hard Drive/Internal Memory (eMMC) - 32GB
USB - USB 2.0 x2
LAN - 10/100 Ethernet
Wi-Fi - 2.4G/5G built-in Wifi
OS - Android 11

Accessories
Included
User Manual (CD), Remote Control, Power Cable, 3m LAN Cable, 3m USB A Male to USB B Male Cable, 3m HDMI Cable, Wi-Fi Aerial (x3), Pointer, Magnetic Whiteboard Pen (x 2), Smart Pen (x1), Batteries x2
Optional
Floor Stand/Trolley, Ceiling Mount, PushShare Dongle

>Built-in System

Operating System
Android 11

CPU
Quad-core A73 + Quad-core A53

RAM
4 GB (optional 8 GB)

ROM
32 GB (optional 64 GB)

LCD Panel

Panel Dimensions
75 inch

Backlight
D-LED

Aspect Ratio
16:09

Brightness
400 cd/m²(typ.)

Contrast
1200

Resolution
3840 x 2160

Viewing Angle
178°(H) / 178°(V)

Lifespan
50,000 hours

Display Color
1.07B/10bit (8bit+FRC)

Response Time
8 ms(typ.)

Refresh Rate
60 Hz

Device Ports

Light Sensor
Yes

Front Button
8 buttons (power, home, menu, signal source, tact lock, curtain, volume, and annotation)

Front Ports
Type C x 1 (4K@60 Hz, Touch)
HDMI In x 1 (4K@60 Hz)
USB 3.0 Type-B x 1 (Touch)
USB 3.0 Type A x 2
Mic In x 1 (3.5 mm port)

Rear Port
Type C x 1 (4K@60 Hz, Touch)
HDMI In x 2 (4K@60 Hz)
VGA In x 1 (1080p@60 Hz)
USB 3.0 Type-B x 3 (Touch)
HDMI Out x 1
USB 3.0 Type A x 2
Micro USB x 1
RS-232 x 1
RJ45 In x 1
RJ45 Out x 1
Audio In x 1 (3.5 mm port, used to play sound with VGA)
Audio Out x 1 (3.5 mm port)
SPDIF Out x 1 (Optical port)
OPS slot x 1

Function

IR Receiver
Yes

Bluetooth
Bluetooth 5.2

Wi-Fi
WIFI 5, 2.4 GHz/5 GHz; Integrated WiFi 802.11 b/g/n/ac, supports PEAP/EAP-GTC authentication protocol within 802.lX

Wireless Access Point
WIFI 5, 2.4 GHz/5 GHz; Supports enabling Hotspot and Wi-Fi at the same time

Touchscreen

Touch Technology Type
Infrared touch technology

Attachment Method
Zero Air Gap

Response Time
=10 ms

Touch Points
Andriod: 32, Windows: 40

Touch Accuracy
± 1 mm (over 90% Area)

Valid Touch
2 mm

Touch Height
3 mm

Writing Mode
Finger + Pen

Communication Mode
USB

Anti-light Interference
Anti-dazzle tempered glass

Surface Hardness
8H

Touch Resolution
32767 x 32767

Speaker

Built-in Speaker
2

Power
2.0 sound channel, Front facing: 2 x 15 W

General

Power Supply
100–240 VAC, 50/60 Hz

Power Consumption
75-inch: 150 W(typ.); 300 W(max.)

Standby Power Consumption
=0.5 W

Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature
–10 °C to +50 °C (+14 °F to +122 °F)

Operating Humidity
10%–90% (RH)

Storage Humidity
10%–90% (RH)

Product Material
Metal

Glass
4 mm Anti-dazzle tempered glass

Casing Color (Frame/Rear)
Bottom/top: Silver; left/right: black; back: black

Product Dimensions
75-inch: 1,707.5 mm x 93.0 mm x 1,050.0 mm (67.22" x 3.66" x 41.34")

Packaging Dimensions
75-inch: 1,800.0 mm x 200.0 mm x 1,165.0 mm (70.87" x 7.87" x 45.87")

Net Weight
75-inch: 52 kg (114.64 lb)

Gross Weight
75-inch: 65 kg (143.30 lb)

Holes Distance
75-inch: 600 mm x 400 mm (23.62" x 15.75")

Installation
Wall mount; mobile bracket

Packing List
Smart interactive whiteboard x 1
Power cord x 1
Passive stylus pen x 2
HDMI cable x 1
Quick start guide x 1
Wall mount bracket (already installed on the whiteboard) x 1
Accessory package x 1
Remote control x 1
Legal and Regulatory Information x 1

Certification

Certifications
CE, Engery Star, ROHS, REACH, WEEE
