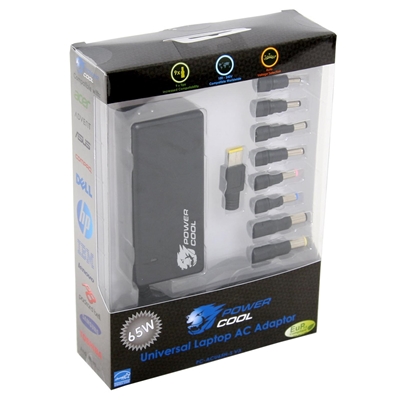

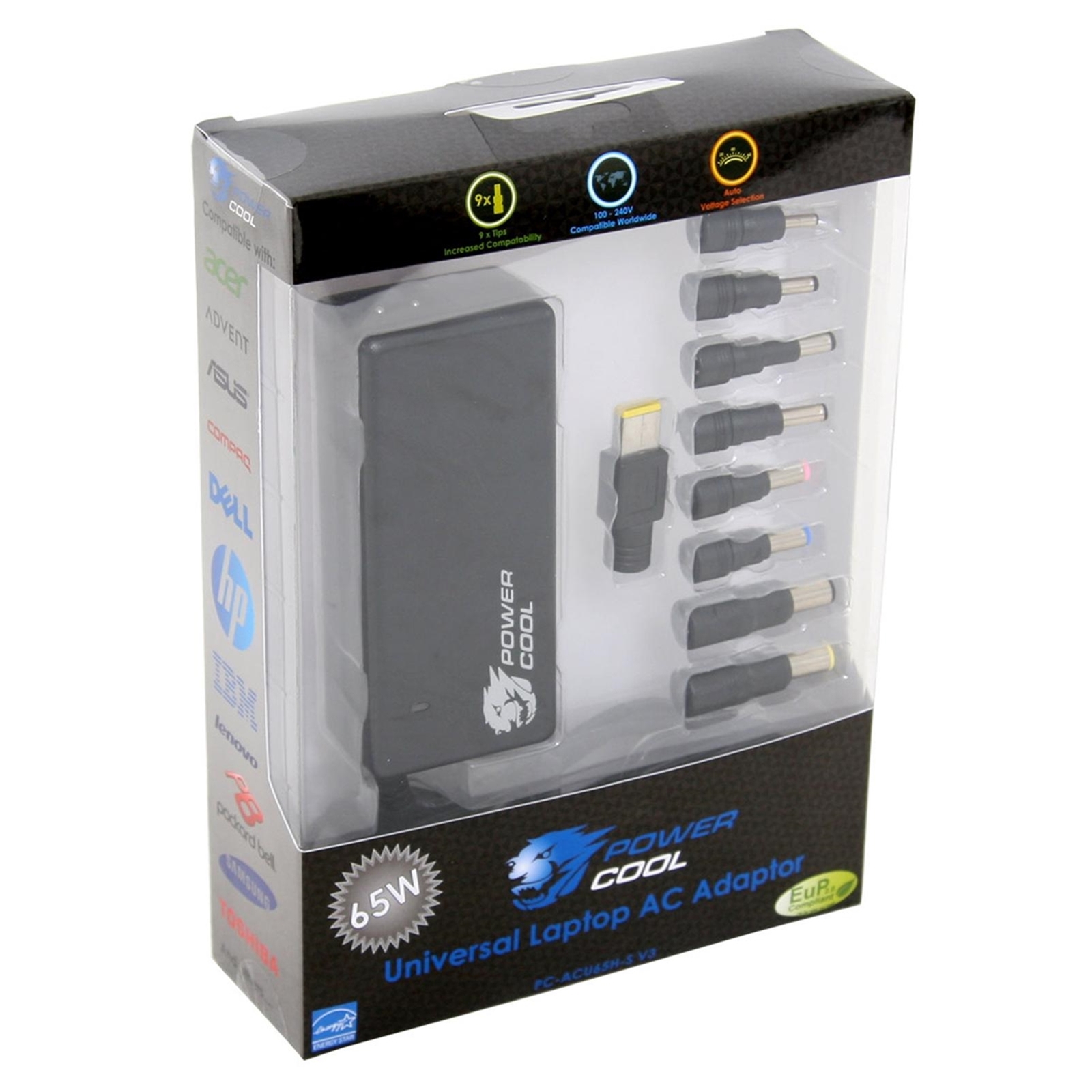

Powercool 65w Universal Laptop power supply with 8 interchangable tips and worldwide Autoswitching voltage
Key Features
Input: 100~240V AC 50-60Hz.
Output: DC voltages: 18-20V.
Output power: up to 65 W.
Unit Dimensions: 50mm x 114mm x 32mm (W x H x D)
Net Weight: appr.260 g
Electrical
Dielectric Strength: 3300V AC Primary to Secondary
Insulation Resistance: 500V DC, >100M OHM Input to output
Efficiency: > 87% at full load
MTBF: 50,000hrs / full load at 25�C
EMI Conduction & Radiation: Complied with EN55022 Class B
Harmonic Current: Complied with EN61000-3-2, 3
EMS Immunity: Complied with EN61000-4-2,3,4,5,6,8,11
Ripple & Noise: 300mV
Meets CEC, Energy Star Level V & ERP stage 2 regulations
No load Power Consumption Less Than 0.5W
More Information
This adapter is intended for use on a 100~240Volt AC 50-60Hz mains supply.
Designed to meet the standards of original manufacturer's specifications.
Energy Saving chip and technology applied.
Over voltage, over current, over temperature, over power and short circuit protection functions.
LED light indicating when the power supply is connected to the supply.
Interchangeable power plug automatically sets output voltage.
Supplied with Seven Automatic interchangeable power plugs for maximum compatibility.
Automatic Power Switching.
DC Plug Compatibility Information (18-20V)
Plug No.
A - Asus - Netbook/Mini Laptop
J - ASUS, HP, COMPAQ, Gateway, LG, eMachines - Laptops
J - HP Folio 13 - Ultrabook
B - Acer, Packard Bell, eMachines, Gateway - Laptops
B - Acer - Ultrabooks
B - Acer, Dell, Packard Bell - Netbook / Mini Laptop
L - HP, Compaq, Asus, Toshiba, IBM, Lenovo, LG, Clevo, Fujitsu, Dell, Gateway, Advent, Packard Bell, MSI, Benq, Medion - Laptops
L - Toshiba, Fujistu, MSI, Lenovo - Ultrabook
L - Toshiba, Lenovo ,MSI, Medion, Advent, Benq, LG - Netbook / Mini Laptop
D - Samsung - Laptops
D - Samsung - Netbook / Mini Laptop
F - DELL, HP, COMPAQ - Laptop
F - HP - Netbook / Mini Laptop
G - Lenovo, IBM - Laptop
What's In The Box: 65W Laptop Adapter
2PIN UK AC power cord
8pcs DC tips
Manual
