RGB White Gaming Build - AMD 5600X 6 Core 12 Thread, 3.70GHz (4.60GHz Boost), 16GB RAM, 500GB NVMe, RTX4060 White Graphics, Windows 11 Home - Custom PC
Processor
AMD Ryzen 5 5600X 3.7GHz 6 Core AM4 Processor, 12 Threads, 4.6GHz Boost
Processor Cores
6
Processor Threads
12
Core Clock Speed
3.70GHz
Core Boost Speed
4.60GHz
CPU Cooler
AMD Wrath Cooler
Memory
Kingston FURY Beast 16GB (2 x 8GB) 3200MHz DDR4 DIMM System Memory Black Heatsink
Memory Configuration
2 x 8GB
4 Lanes (2 occupied)
SSD Drive
Samsung 970 EVO PLUS (MZ-V7S500BW) 500GB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 3000MB/s, Write 3200MB/s
Format
NVMe
Max Read/Write Speeds
Up to 3000MB/s
Up to 3200MB/s
Hard Drive
N/A
Optical Drive
N/A
Graphics
Gigabyte NVIDIA GeForce RTX 4060 AERO OC 8G Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2550 MHz Core Clock, Triple Fan, White, RGB, 2x DisplayPorts / 2x HDMI Ports
Core Clock
2550 MHz (Reference card: 2460 MHz)
CUDA Cores
3072
Memory Clock
17 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Graphics Card I/O
2 x DisplayPort 1.4a
2 x HDMI 2.1
Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software
Card Reader
N/A
Networking
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication Module
Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Power Supply
GAMEMAX GX-850W Pro Modular 80 Plus Gold ATX3.0 PCIe 5.0 White PSU With 135mm FDB Fan
1 x 20+4 Pin Main
2 x 4+4 Pin 12V
6 x SATA
3 x 4-Pin Molex
4 x 6+2 Pin PCI-e
1x 12+4 Pin 12VHPWR
Motherboard
Gigabyte B550 AORUS ELITE AX V2 AMD AM4 Socket Motherboard, ATX, 4x DDR4 Slots, 2x M.2 Sockets, 1x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E
Expansion Slot
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Rear I/O
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Chassis

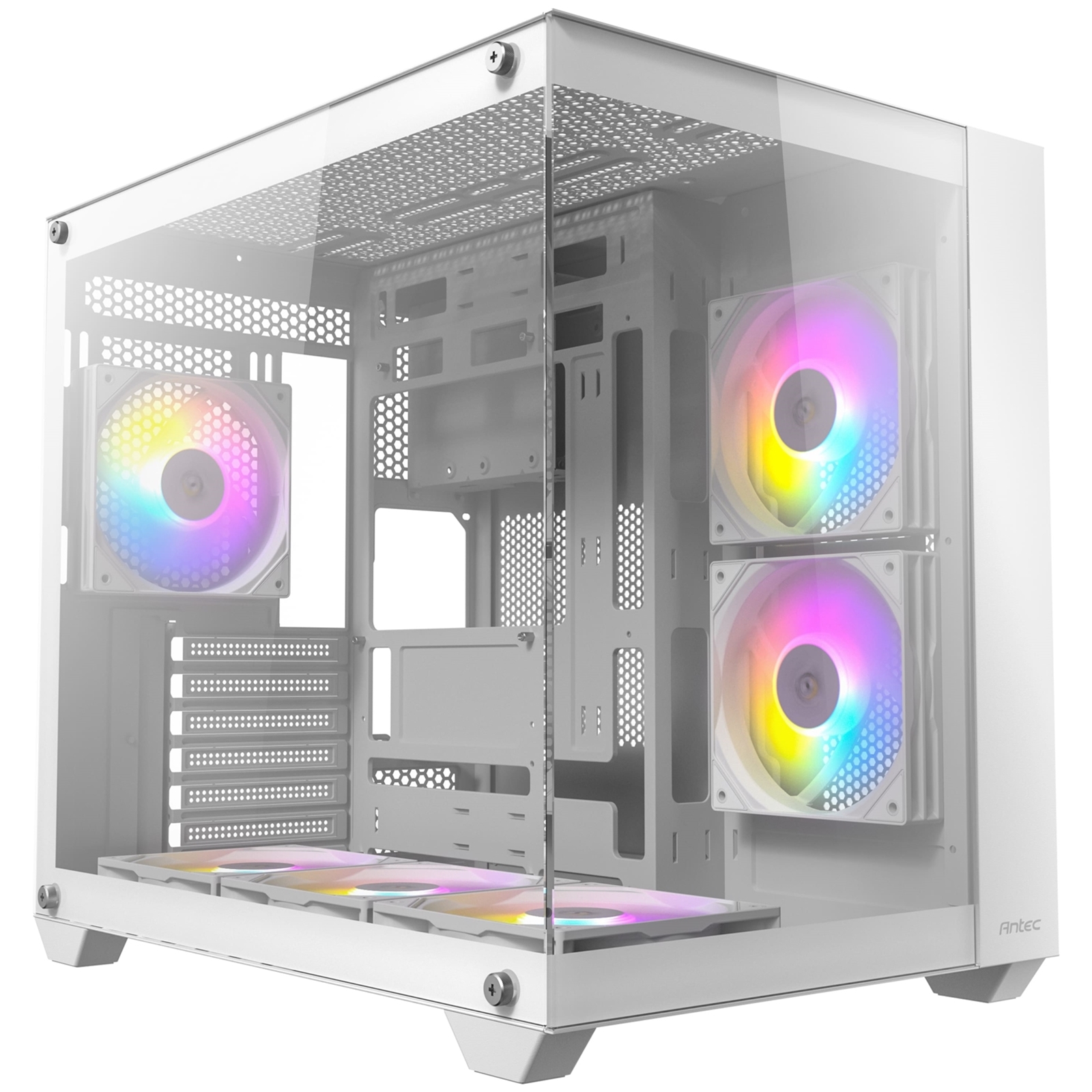

ANTEC CX800 Mid Tower Gaming Case, White, 270 Full-view tempered glass, 6x 120mm RGB fans, 1x USB 2.0 / 1x USB 3.0
Drive Bays
3.5" x 2
2.5" x 2
IO Ports
Power,
LED On/Off
USB 2.0 x 1
USB 3.0 x 1
Headphone/Mic Combo Jack
Cooling
Top
3 x 120 / 2 x 140 mm
Side
2 x 120 mm
Bottom
3 x 120 / 2 x 140 mm
Rear
1 x 120 / 1 x 140 mm
Included Fan(s)
3 x 120 mm fixed mode RGB reverse fans on bottom +
2 x 120 mm fixed mode RGB reverse fans on right side +
1 x 120 mm fixed mode RGB fan in rear
Dimensions
336 x 302 x 389 mm(D x W x H)
Package Weight
11 kg
Warranty
3 Years; 1st year parts including collect and return (UK mainland only)
