RGB Gaming Build - Intel i5, 14 Core 20 Thread, 3.50GHz (5.10GHz Boost), 64GB RAM, 1TB SSD, RTX 4060 Graphics, Liquid Cooled, WiFi 6, Windows 11 Home - Gaming PC
Specification:
Processor
Intel Core i5 13600KF 14 Core Processor 20 Threads, 3.5GHz up to 5.1GHz Turbo Raptor Lake Socket LGA 1700 24MB Cache, 125W, Maximum Turbo Power 181W, Unlocked Overclockable
Processor Cores
14
Processor Threads
20
Core Clock Speed
3.50GHz
Core Boost Speed
5.10GHz
CPU Cooler
CIT PRO Glacier 360mm ARGB AIO Water Cooler Liquid Cooling System
Memory
Adata XPG Lancer AX5U5600C3632G-DCLABK 64GB U-DIMM System Memory DDR5, 5600MHz, 2 x 32GB
Memory Configuration
2 x 32GB
4 Lanes (2 occupied)
SSD Drive
Samsung 980 (MZ-V8V1T0BW) 1TB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 350MB/s, Write 3000MB/s
Format
NVMe
Max Read/Write Speeds
Up to 3500MB/s
Up to 3000MB/s
Hard Drive
N/A
Optical Drive
N/A
Graphics
Inno3D NVIDIA GeForce RTX 4060 TWIN X2 Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2490 MHz Boot Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Port
CUDA Cores
3072
Boost Clock (MHz)
2460
Base Clock(MHz)
1830
Memory Clock
17Gbps
Standard Memory Config
8GB
Memory Interface
GDDR6
Memory Interface Width
128-bit
Memory Bandwidth (GB/sec)
272
Graphics Card I/O
3 x DisplayPort 1.4a
1 x HDMI 2.1
Operating System
Not Supplied
Card Reader
N/A
Networking
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Power Supply
be quiet! System Power 10 750W PSU 80 PLUS Bronze Power Supply with Temperature Controlled Fan & 12V Rail
1 x 4+4-pin ATX 12V
1 x 4-pin Molex
4 x 6+2-pin PCIe
1 x 8-pin ATX 12V
6 x SATA
Motherboard
Gigabyte Z790 GAMING X AX Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Rear I/O
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x DisplayPort
1 x HDMI 2.0 port
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Chassis

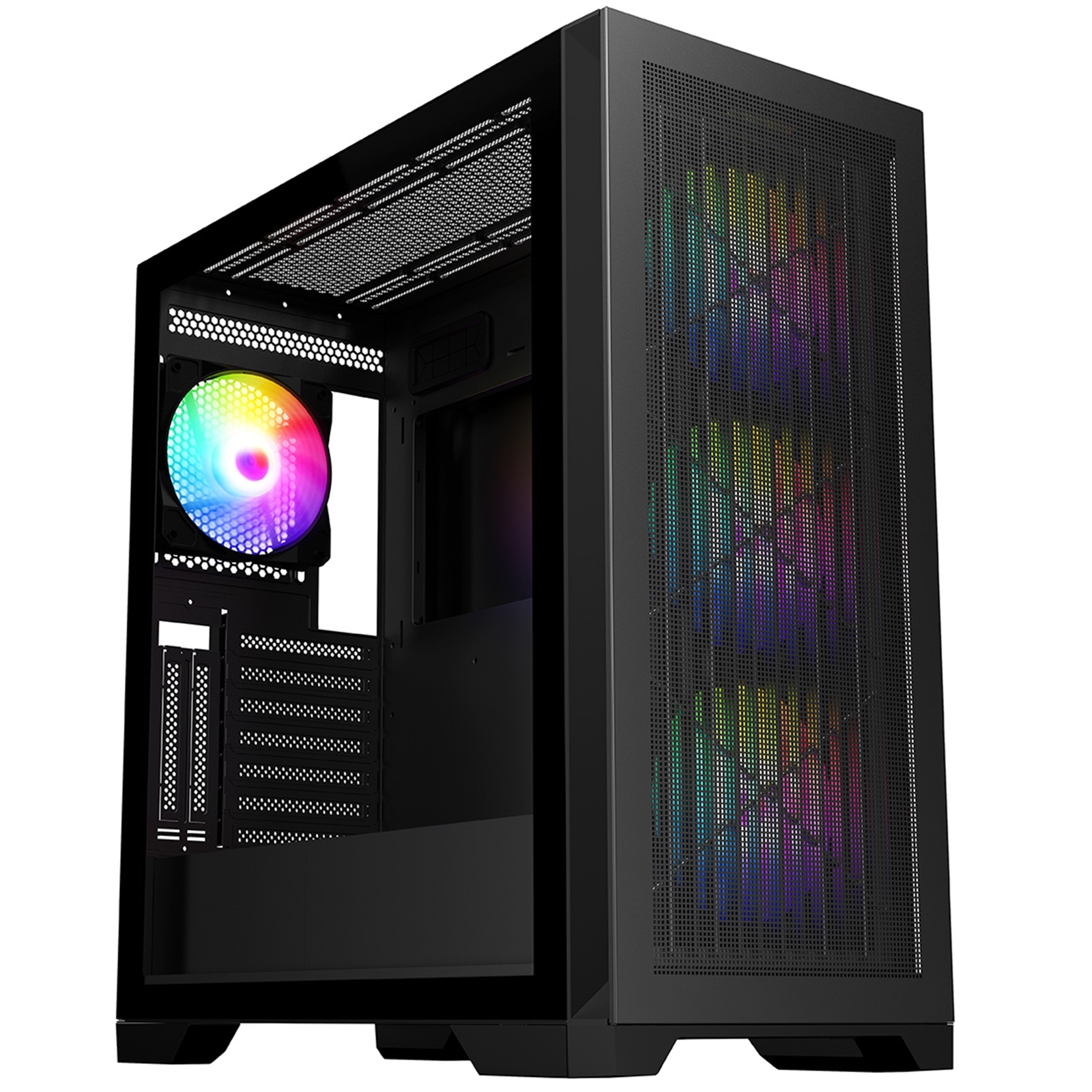

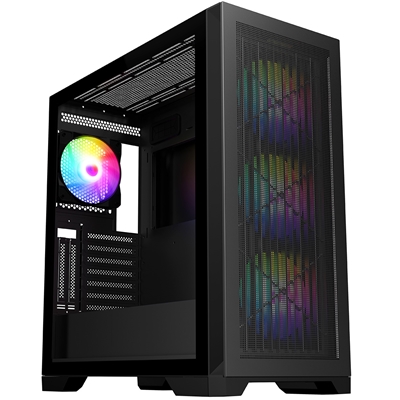

CRONUS Phanes Gaming PC Case, Mid Tower with Tempered Glass, ARGB Lighting, Enhanced Connectivity, and Superior Airflow
Drive Bays
3.5" HDD X 3
2.5" SSD X 3 (2 shared with 3.5")
IO Ports
Buttons: Power & LED Buttons
USB Ports:
USB 2.0: 2
USB 3.0: 1
Audio Support: HD Audio
Cooling
Fan Support:
Front
Space for 3 x 120mm or 3 x 140mm Fans (3 x 120mm ARGB Linked Cooling Fans Included)
Top
3 x 120mm or 2 x 140mm Fans
Rear
1 x 120mm Fan (1 x 120mm ARGB Linked Cooling Fan Included)
Motherboard
2 x 120mm fans
PSU Cover
3 x 120mm Fans
Dimensions
Chassis: (W) 217mm x (H) 466mm x (D) 430mm
Full Case (inc Fascia): (W) 217mm x (H) 490mm x (D) 463mm
Package Weight
9.2 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
