Built for professional and Home creators. purpose built for use with CAD, Adobe or creator software. Fitted with Intel's powerful i9, 16 Core Processor, 64GB of Fast RAM, an Ultra fast NVMe and 4TB of back up storage, NVIDIA Quadro graphics card and Windows 11 PRO All backed by an industry leading 3 Year Warranty.
Professional Tower with Intel i9, 16 Core 5.20GHz, 1TB Kingston NVMe, 4TB HDD Storage, 64GB DDR5 Kingston RAM, T1000 8GB Quadro Graphics, Wi-Fi 6, Windows 11 Pro
Processor
Intel Core i9 12900KF 3.2GHz 16 Core LGA 1700 Alder Lake Processor, 24 Threads, 5.2GHz Boost
Processor Cores
16
Processor Threads
24
Core Clock Speed
3.20GHz
Core Boost Speed
5.20GHz
Memory
Kingston FURY Beast KF552C40BBK2-64 64GB System Memory DDR5, 5200MHz, 2 x 32GB, CL40-40-40
Voltage: 1.25V
Latency Timing: CL40
Speed: 5200MT/s (PC5-41600)
2 x 32GB DIMM Memory
Intel XMP Profile Support
Memory Configuration
2 x 32GB
4 Lanes (2 occupied)
SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280
Data storage life
320 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe
Format
Gen4 x4 NVMe
Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S
Hard Drive
Seagate BarraCuda ST4000DM004 4TB 3.5" 5400RPM 256MB Cache SATA III Internal Hard Drive
Optical Drive
No Optical Drive Fitted
Graphics
PNY NVIDIA Professional T1000 Retail Graphics Card, 8GB GDDR6, 896 CUDA Cores, 2.5 MHz TFLOPS, Single Fan Low Profile
Brand - PNY
Model Number - VCNT10008GB-PB
Interface - PCI Express 3.0
Graphics Card Memory Type - GDDR6
Memory Size - 8GB
Outputs - Mini DisplayPort
Maximum Supported Displays - 4
Maximum Resolution - 5120 x 2880
Colour - Black
Graphics Card I/O
Mini DisplayPort x 4
Comes with Mini DP to Full DP adapters
Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date
Card Reader
No Card Reader Fitted
Networking
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Power Supply
be quiet! System Power 10 750W PSU 80 PLUS Bronze Power Supply with Temperature Controlled Fan & 12V Rail
1 x 4+4-pin ATX 12V
1 x 4-pin Molex
4 x 6+2-pin PCIe
1 x 8-pin ATX 12V
6 x SATA
Motherboard
Gigabyte B760 DS3H AX Ultra Durable Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, GbE LAN, Wi-Fi 6E
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
(PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Rear I/O
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Chassis

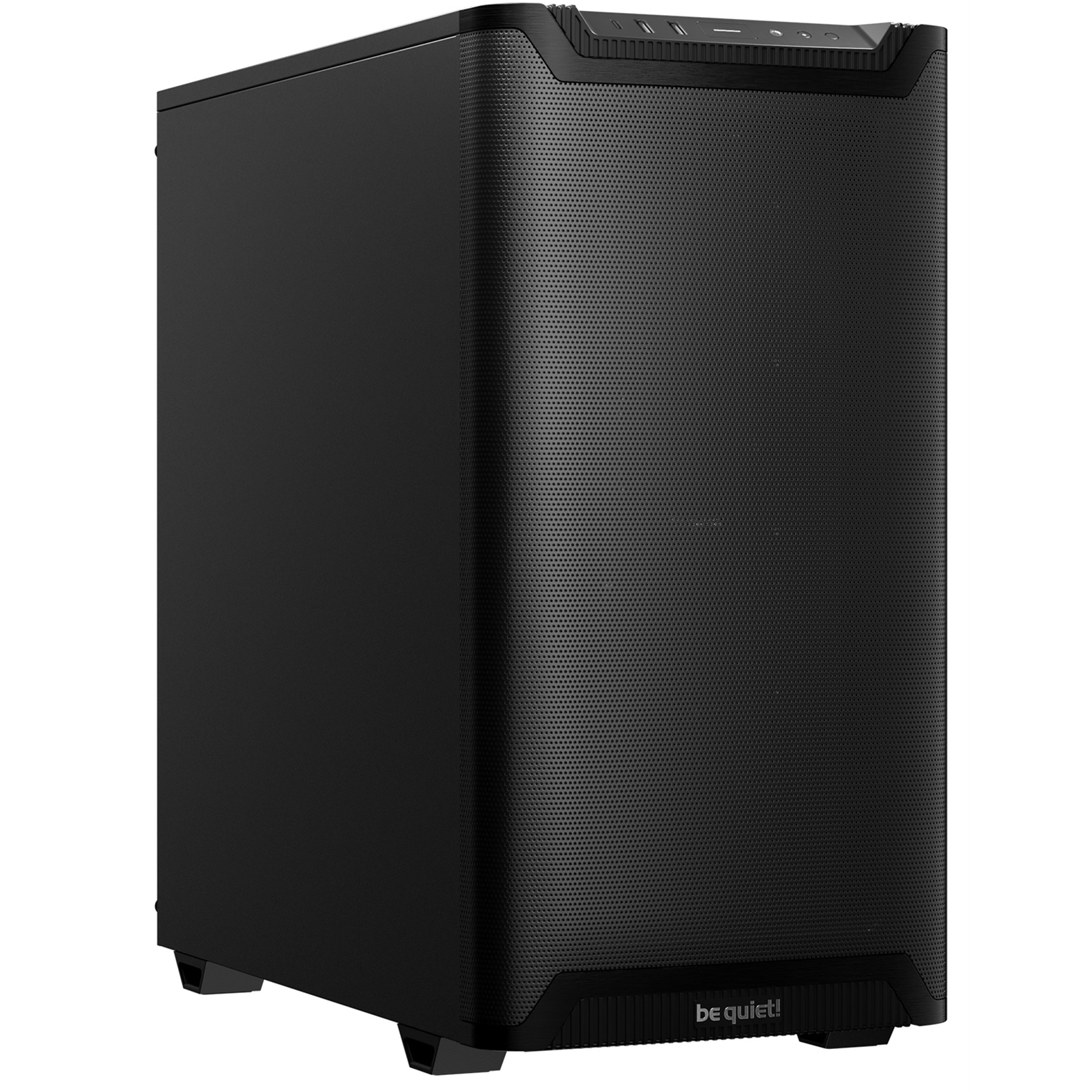

be quiet! Pure Base 501 Case, Airflow Black, Mid Tower, 2 x USB Type-A, 1 x USB Type-C, 2 x Pure Wings 2 140mm Black PWM Fans Included, Sleek front panel and airflow
Drive Bays
Two 3.5"
Five 2.5" drives
IO Ports
USB 3.2 Gen. 2 Type C
2 x USB 3.0 Type A
Power
Reset
Cooling
Front: Up to 2 x 140mm or 3 x 120mm (2 x 140mm Pure Wings 3 fans preinstalled)
Top: Up to 2 x 120mm or 2 x 140mm
Rear: 1 x 120mm or 1x 140mm
Dimensions
463mm x 450mm x 231mm (L x W x H)
Package Weight
10.4 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
