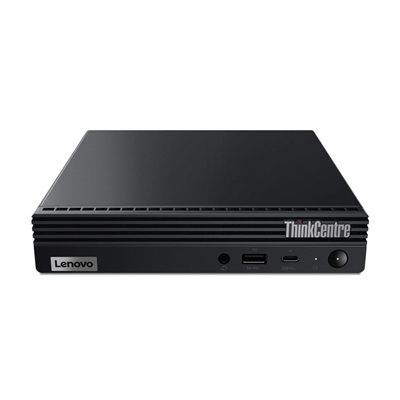

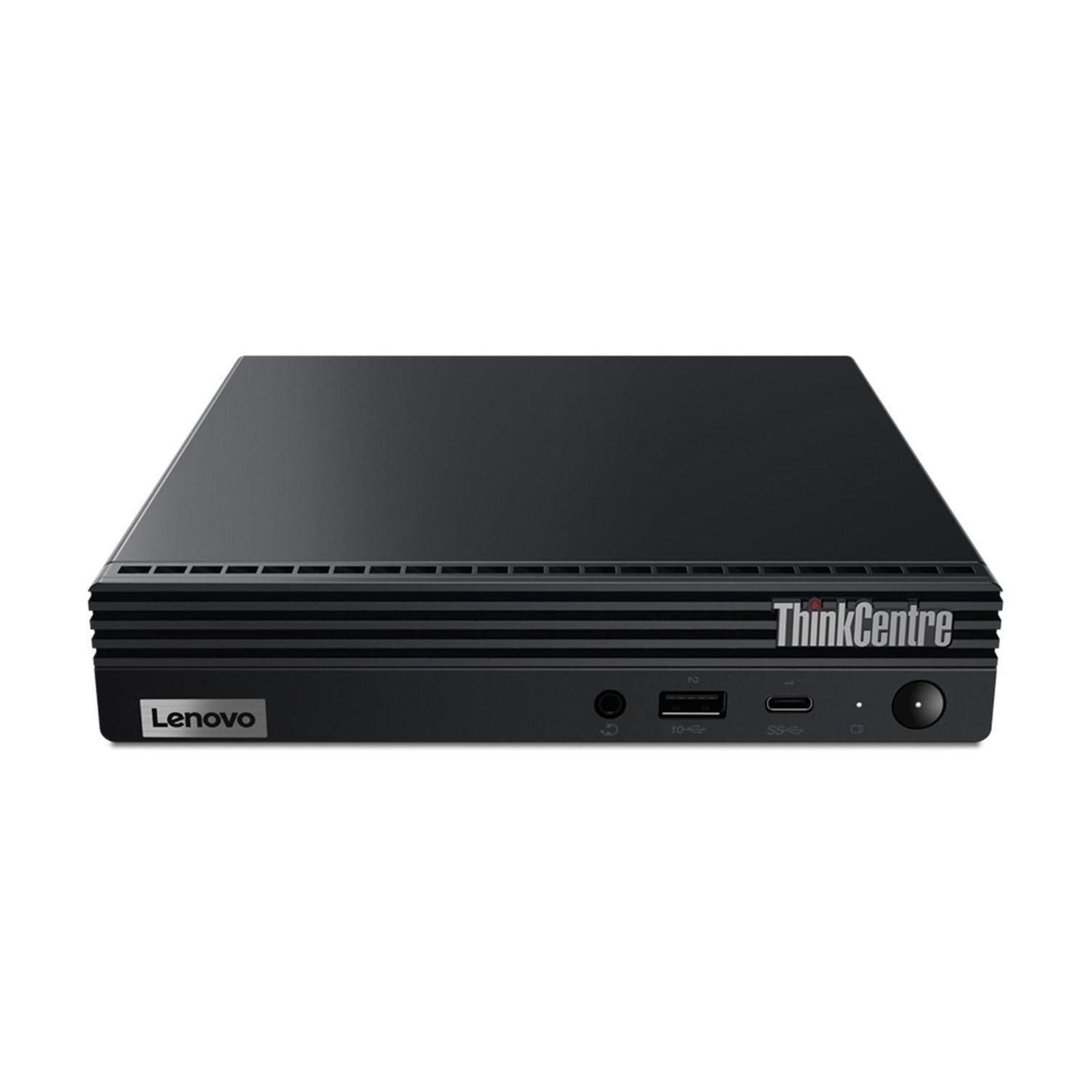

The ThinkCentre M60e Tiny desktop crams serious performance into a diminutive package. At just 1L, it's made to blend seamlessly into today's shifting and shrinking workspaces. The M60e makes big ideas possible with up to 10th Gen Intel Core i5 processors, bringing much-needed performance, speed, and potential to every desk.

Full-size performance
The ThinkCentre M60e Tiny desktop boasts full-size processing power with up to 10th Gen Intel® Core™ i5 processors and up to two DDR4 SODIMM (2666MHz) memory slots that put you in charge of the optimal configuration.

Industry-leading security
Innovate fearlessly on the ThinkCentre M60e Tiny desktop. It's equipped with the reinforced security of ThinkShield—the most comprehensive, end-to-end security solution on the market. It combines industry-leading hardware, software, services, and processes—along with built-in Trusted Platform Module (TPM) 2.0 firmware—to protect your ideas and your business.

Easy expandability
The ThinkCentre M60e Tiny desktop is designed to grow with your business. From industry-specific equipment to legacy peripherals, this desktop can connect them all. Connect to two displays for maximum multitasking and use the front-facing USB-C port for fast, convenient charging and quick data sharing.

Scalable upgradeability
IT managers will love how easy the ThinkCentre M60e is to deploy, upgrade, and manage, thanks to built-in driver support for older OS versions. Tool-less access to the SSD and memory module make expansion and maintenance fast and efficient.

Enhanced user experience
The ThinkCentre M60e Tiny desktop is designed with people—and shrinking workspaces—in mind. Its sleek, modern design and compact 1L housing allow this PC to fit seamlessly into modern offices, small businesses, or retail environments—either customer-facing, mounted out of the way, or bundled with an optional Tiny-in-One (TIO) monitor.

Specification

Processor
Intel Core i3-1005G1 (2C / 4T, 1.2 / 3.4GHz, 4MB)

RAM
1x 8GB SO-DIMM DDR4-2666

Hard Disk Drive
256GB SSD M.2 2242 PCIe 3.0x4 NVMe

Optical Drive
NO ODD

Graphics
Integrated Intel UHD Graphics

Ports & Interfaces
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 1
1 x headphone / microphone combo jack (3.5mm)
1 x HDMI
1 x DisplayPort
2 x USB 2.0
2 x USB 3.2 Gen 1
1 x Ethernet (RJ-45)

Network
Intel AX201, 11ax 2x2 + BT5.1

Audio & Speakers
Internal Speaker

Battery
65W 89% Adapter

Dimensions(WxDxH)
17.9 cm x 18.29 cm x 3.65 cm

Weight
Around 1.25 kg (2.76 lbs)

Operating System
Windows 11 Pro, English

Warranty
1 Year

Manufacturer's Website:

www.lenovo.co.uk

Warranty:

1 year on-site warranty 0333 777 3991 DOA period 6 Days - This is from date of invoice. Customers to contact Lenovo to troubleshoot and they will advise process for return or repairs

CERTIFICATES
Certification	MIL-STD-810G
Compliance certificates	RoHS
DESIGN
Chassis type	mini PC
Cable lock slot	Yes
Product colour	Black
Viewing window	No
Volume	1 L
Cable lock slot type	Kensington
ENERGY MANAGEMENT
Power supply	65 W
GRAPHICS
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
Discrete graphics card	No
On-board GPU manufacturer	Intel
MEMORY
Internal memory type	DDR4-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Memory layout (slots x size)	1 x 8 GB
Internal memory	8 GB
NETWORKING
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Cabling technology	10/100/1000Base-T(X)
Bluetooth version	5.1
Ethernet LAN	Yes
Antenna type	2x2
Bluetooth	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
WLAN controller manufacturer	Intel
OPERATING SYSTEM/SOFTWARE
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
OPERATIONAL CONDITIONS
Operating altitude	0 - 3048 m
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90%
Non-operating altitude	0 - 12192 m
PACKAGING CONTENT
Contrast ratio (typical)	10 - 90%
Display included	No
Mouse included	Yes
Keyboard included	Yes
PERFORMANCE
Motherboard chipset	Intel SoC
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Product type	Mini PC
Password protection	Yes
PORTS & INTERFACES
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
PROCESSOR
Processor model	i3-1005G1
Number of processors installed	1
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor cores	2
Processor threads	4
Processor boost frequency	3.4 GHz
Processor cache	4 MB
Processor frequency	1.2 GHz
Configurable TDP-down	13 W
Processor cache type	Smart Cache
Configurable TDP-down frequency	0.9 GHz
Processor generation	10th gen Intel® Core™ i5
PROCESSOR SPECIAL FEATURES
CPU configuration (max)	1
STORAGE
Optical drive type	No
Total storage capacity	256 GB
SSD interface	PCI Express 3.0
SSD capacity	256 GB
Number of SSDs installed	1
Storage media	SSD
SSD form factor	M.2
NVMe	Yes
Total SSDs capacity	256 GB
SUSTAINABILITY
Sustainability certificates	RoHS
WEIGHT & DIMENSIONS
Weight	1.25 kg
Height	36.5 mm
Width	179 mm
Depth	182.9 mm
