Upgrade to the future
Minimalism meets power
The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.

By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.

GIGABYTE BRIXS With Intel Core Processors - Uncompromised Performance
With 13th Gen Intel Core Processors, Intel advanced its hybrid design and made it even better than our previous product with 10th Gen Intel Processors. Faster Performance-cores means getting dedicated tasks done faster and easier. More Efficiency-cores means better multi-tasking.Great on-board graphics and best-in-class connectivity means a fully immersive experience and ultra-responsive wired and wireless connections.

Increasing performance gets more done
With the latest 13th Gen Intel Core Mobile Processors, Intel has taken its hybrid design to the next level. The new processors boast more powerful Performance-cores (P-cores), allowing for swift and seamless completion of tasks. The improved Efficient-cores (E-cores) enable even better multi-tasking, making it easier to tackle several tasks at once. These advanced processors also deliver stunning graphics and unparalleled connectivity, providing an unparalleled immersive display and lightning-fast wired and wireless connections.

Computing with ultra efficient multi-tasking
Up to 10 cores (2 P-cores, 8 E-cores) and enhanced Intel Thread Director.

Intel Iris X Graphics
Render in the background while editing video; enjoy responsive HD gaming while streaming music; or game, stream and record at once.

Amazing End-to-End Connectivity with Wi-Fi 6
Nearly a threefold improvement in throughput speed allows for fast uploads and downloads at low latency. Intel Wi-Fi 6 (Gig+) gives you the freedom to work and learn from anywhere—and relax with smooth, high-quality streaming.

Delivering Superior Performance Where You Need It Most
You can save time and enhance the quality of your computing experience by utilizing built-in intelligence. Enjoy features like low noise operation while collaborating and automated text, image, and audio improvements while creating. In addition, enjoy system optimization for bandwidth and video resolution while gaming on the go.

Dimension
124 x 120 x 49.7 mm

CPU
13th Gen Intel Core i3-1315U Processor
6 Cores (2P+4E), 8 Threads, 10MB Cache
Frequency up to 4.5GHz(P Core Turbo), 15W

Memory
2 x SO-DIMM DDR4 slot
3200MHz
Max. 64GB

LAN
2.5 GbE LAN (Intel i226V)

Wifi Card
Intel AX203
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

Graphics
Intel Iris Xe Graphics, 96EU, 1.25GHz

Audio
Realtek ALC269 HD audio

Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz
2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz

Storage
1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)
1 x 2.5? slot for HDD/SSD (9.0mm thick; SATA3)

Front I/O
1 x Headphone / Microphone
2 x USB3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x Power Button

Rear I/O
1 x 2.5 GbE RJ45
2 x HDMI 2.1
2 x USB3.2 Gen2 Type-C with DP alt Mode
1 x Kensington Lock Slot
1 x DC-In

Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.

Support OS
Win11 64 bit
Win10 64 bit

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

Manufacturer's Website:

www.gigabyte.com

Warranty:

Gigabyte 3 Year Return to Manufacturer Warranty (Reseller only)

Warranty Length: 3 years

Warranty Type:Return-To-Manufacturer

Warranty Coverage: Gigabyte's 3-year warranty includes a 7-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 7 days of purchase, it can be returned to Target under the 7-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 7 days the product will need to be returned directly to Gigabyte. Acccount credit will be unavailable outside of the 7-day DOA agreement.

Warranty Instructions: RESELLERS - please raise a Gigabyte RMA. Information needed for claims is Part/Model Number, Serial Number, Fault Description, Place of Purchase (Target Components Limited). Please make sure to comment in the email that you are a trade customer and not an end user. This should speed up Gigabyte processing of your request. Gigabyte will reply by email with a returns number and confirmation of the returns address which is currently:

GBT Tech. Co. Ltd Returns Department Unit 1 Fitzhamon Court Wolverton Mill Milton Keynes MK12 6LB

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

DESIGN
Cable lock slot	Yes
Product colour	Black
Panel mounting interface	75 x 75,100 x 100 mm
On/off switch	Yes
Product type	Mini PC barebone
Cable lock slot type	Kensington
VESA mounting	Yes
ENERGY MANAGEMENT
AC adapter output voltage	19.5 V
AC adapter output current	6.92 A
Power supply	135 W
AC input voltage	100 - 240 V
GRAPHICS
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card	Yes
MEMORY
Maximum internal memory	64 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory slots type	SO-DIMM
Number of memory slots	2
NETWORKING
Bluetooth version	5.2
Ethernet LAN	Yes
Bluetooth	Yes
LAN controller	Intel I226-V
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX203
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
PERFORMANCE
Windows operating systems supported	Windows 10, Windows 11
PORTS & INTERFACES
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
HDMI ports quantity	2
HDMI version	2.1
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
PROCESSOR
Processor model	i3-1315U
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor cores	6
Processor threads	8
Built-in processor	Yes
Processor boost frequency	4.5 GHz
Processor cache	10 MB
CPU configuration (max)	1
Thermal Design Power (TDP)	15 W
Processor generation	Intel Core i3-13xxx
SOFTWARE
Windows operating systems supported	Windows 10, Windows 11
STORAGE
Storage drive interface	PCI Express, Serial ATA III
Storage drive sizes supported	2.5"
Supported storage drive types	HDD & SSD
SSD form factor	M.2
WEIGHT & DIMENSIONS
Height	49.7 mm
Width	124 mm
Depth	120 mm

Processor	Intel Core i3
Processor Cores	10
Memory	2 x SO-DIMM DDR4
Storage	M.2 2280 NVME/SATA3 1 x 2.5 SATA3
Optical	None
Included Peripherals	None
Operating Software	Supports Windows

Processor	Intel Core i3
Processor Cores	10
Memory	2 x SO-DIMM DDR4
Storage	M.2 2280 NVME/SATA3 1 x 2.5 SATA3
Optical	None
Included Peripherals	None
Operating Software	Supports Windows

Target Components

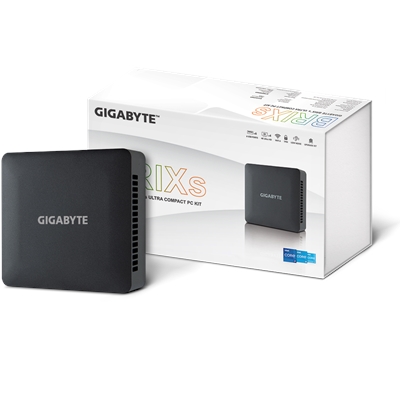

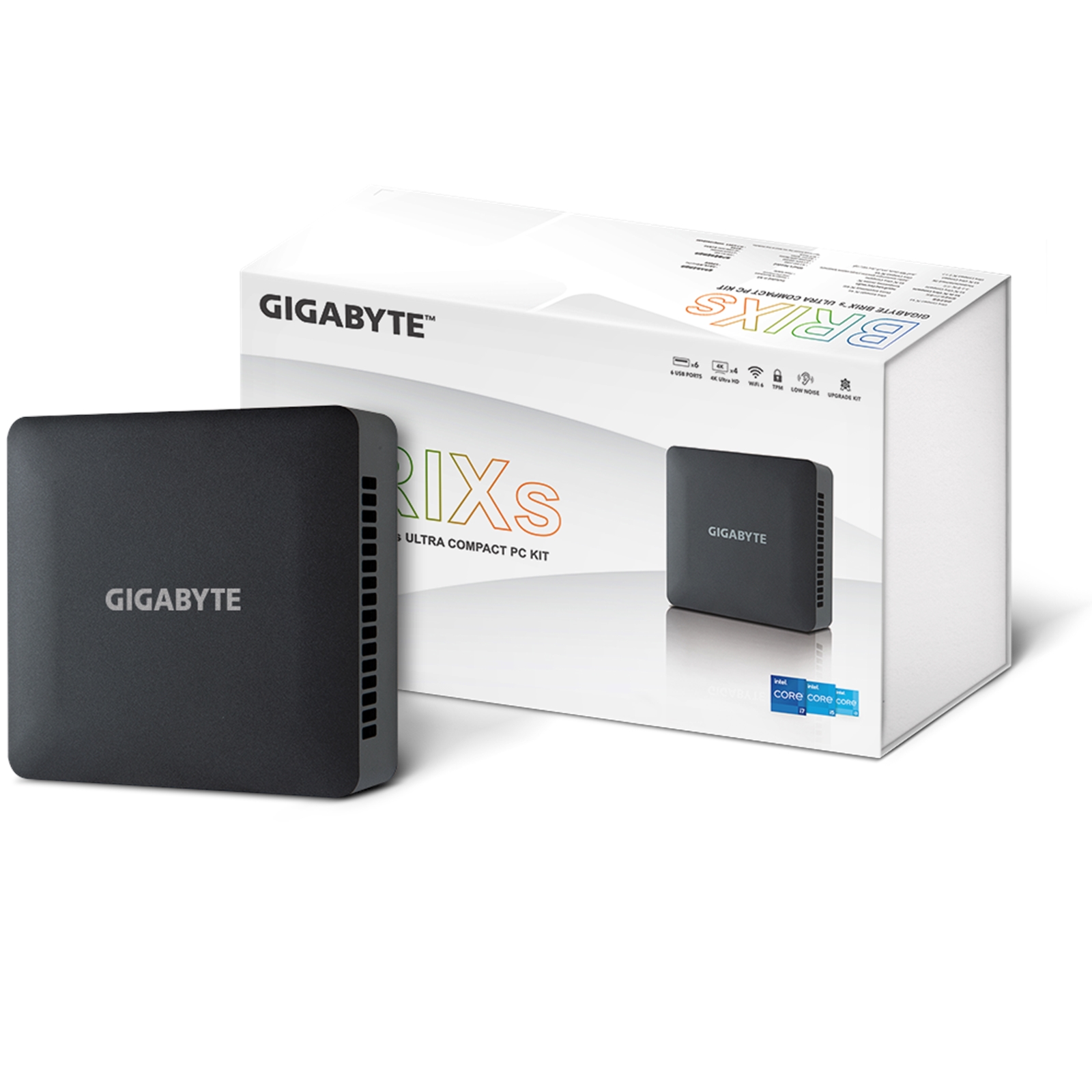

Gigabyte BRIX (GB-BRI3H-1315) Barebone Kit, Intel Core i3-1315U 1.8GHz Dual Core CPU, 1 x DDR4 SO-DIMM Slot, 1 x M.2-2280 Slot, 1 x 2.5 Inch SATA Slot, Wireless AX & Bluetooth 5.2
