| Processor | Intel Celeron |
| Processor Cores | 4 |
| Memory | Max 16GB |
| Storage | Supports 2.5 |
| Optical | None |
| Included Peripherals | None |
| Operating Software | Windows 10 64bit |
| Processor | Intel Celeron |
| Processor Cores | 4 |
| Memory | Max 16GB |
| Storage | Supports 2.5 |
| Optical | None |
| Included Peripherals | None |
| Operating Software | Windows 10 64bit |
Gigabyte 3 Year Return to Manufacturer Warranty (Reseller only)
Warranty Length: 3 years
Warranty Type:Return-To-Manufacturer
Warranty Coverage: Gigabyte's 3-year warranty includes a 7-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 7 days of purchase, it can be returned to Target under the 7-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 7 days the product will need to be returned directly to Gigabyte. Acccount credit will be unavailable outside of the 7-day DOA agreement.
Warranty Instructions: RESELLERS - please raise a Gigabyte RMA. Information needed for claims is Part/Model Number, Serial Number, Fault Description, Place of Purchase (Target Components Limited). Please make sure to comment in the email that you are a trade customer and not an end user. This should speed up Gigabyte processing of your request. Gigabyte will reply by email with a returns number and confirmation of the returns address which is currently:
GBT Tech. Co. Ltd Returns Department Unit 1 Fitzhamon Court Wolverton Mill Milton Keynes MK12 6LB
END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
| AUDIO | |
|---|---|
| Built-in speaker(s) | No |
| Built-in speaker(s) | N | COLOUR |
| Colour of product | Black | DESIGN |
| Cable lock slot | Yes |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | Y |
| Colour of product | Black |
| On/off switch | Yes |

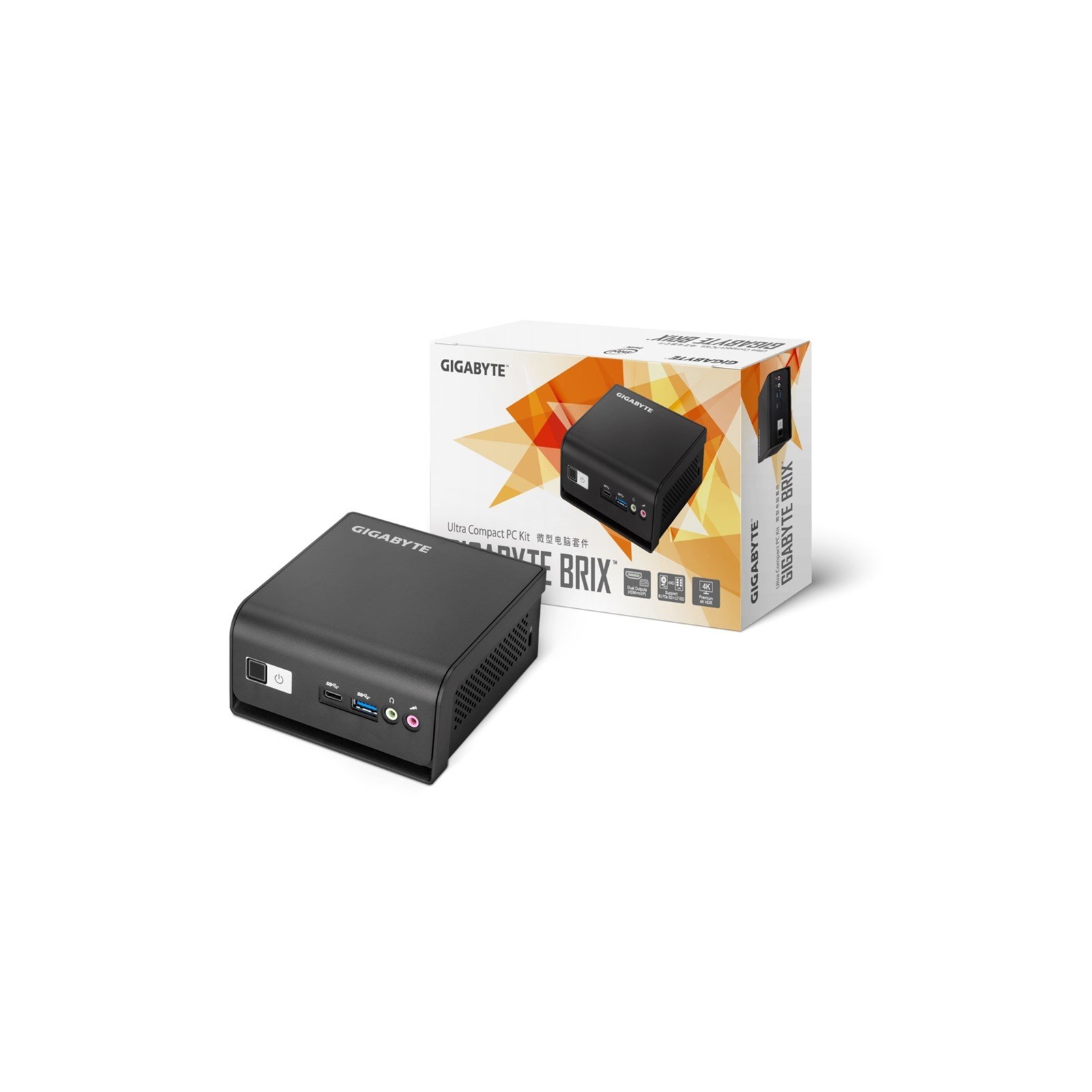

| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| VESA mounting interfaces compatibility | 75 x 75 mm |
| On/off switch | Y |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| VESA mounting | Y | ENERGY MANAGEMENT |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.1 A |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.1 A |
| AC input voltage | 100 - 240 V |
| AC input voltage | 100 - 240 V | GRAPHICS |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® UHD Graphics |
| On-board graphics adapter | Y | LOGISTICS DATA |
| Harmonized System (HS) code | 84713000 | MANAGEMENT FEATURES |
| On/off switch | Y | MEMORY |
| Maximum internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 2933 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Supported memory clock speeds | 2933 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 | NETWORKING |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN connection | Y |
| Bluetooth | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) | OPERATIONAL CONDITIONS |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Operating temperature range (T-T) | 0 - 35 °C | PERFORMANCE |
| Harmonized System (HS) code | 84713000 | PORTS & INTERFACES |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| DVI port | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Mini DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports quantity | 1 |
| Headphone out | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| DVI port | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Mini DisplayPort quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 | PROCESSOR |
| Processor model | N6005 |
| Processor manufacturer | Intel |
| Processor model | N5105 |
| Processor family | Intel® Pentium® Silver |
| Processor manufacturer | Intel |
| Processor cores | 4 |
| Processor threads | 4 |
| Built-in processor | Yes |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 4 MB |
| CPU configuration (max) | 1 |
| Processor family | Intel® Pentium® Silver |
| Processor frequency | 2 GHz |
| Thermal Design Power (TDP) | 10 W |
| Processor cores | 4 |
| Built-in processor | Y |
| Processor cache | 4 MB |
| CPU configuration (max) | 1 |
| Processor clock speed | 2 GHz |
| Thermal Design Power (TDP) | 10 W | PROCESSOR SPECIAL FEATURES |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Enhanced Intel SpeedStep Technology | Y |
| Idle States | Y |
| Intel Trusted Execution Technology | N |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Virtualization Technology (VT-x) | Y | STORAGE |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD | TECHNICAL DETAILS |
| VESA mounting interfaces compatibility | 75 x 75 mm |
| Processor number of cores | 4 | VIDEO |
| Graphics adapter family | Intel |
| On-board graphics adapter | Y | WEIGHT & DIMENSIONS |
| Height | 116.5 mm |
| Width | 562.2 mm |
| Depth | 103 mm |
| Height | 116.5 mm |
| Width | 562.2 mm |
| Depth | 103 mm |
