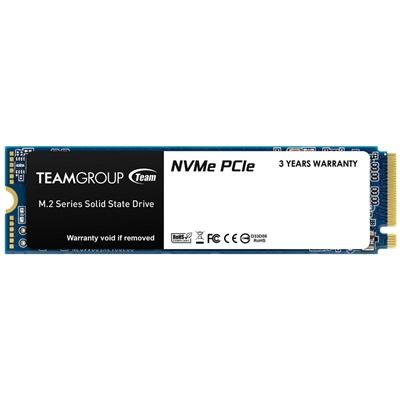

TEAMGROUP releases the new – MP33 M.2 PCIe Solid State Drive. It uses high-speed PCIe Gen3 x4 interface and complies with the NVMe 1.3 standard. With 3D nand flash memory, it is a great bargain and the performance is excellent. Both laptop and PC users can afford it easily, making it the best choice for upgrading. The maximum read/write speed of MP33 M.2 PCIe Solid State Drive is 1,800/1,500MB/s[1], which is three times faster than SATA 6GB/s interface. It is able to reduce operating delays while gaming and loading software that gives computer workers and gamers the finest and smoothest gaming experience and extremely high-speed performance without any lag even loading heavy duty video/graphics editing software and games. MP33 M.2 PCIe Solid State Drive are available in capacities of 128GB, 256GB, 512GB, 1TB, etc. Using the size of current mainstream specification 2280(W:22mm x L:80mm), it can be directly installed in the M.2 slot on the latest Intel and AMD motherboards. It is lightweight, thin, compact and supports Intel and AMD's new platform. Suitable for players who have needs in speed, and it is the top choice when it comes to upgrading PC or laptop. MP33 M.2 PCIe Solid State Drive supports S.M.A.R.T function and its built-in smart algorithm management mechanism has functions such as GC (garbage collection) and TRIM command which are able to ensure operation efficiency, enhance the service life of the solid state drive and bring it to its maximum performance. Meanwhile, the powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the accuracy and reliability of data transfer and prolong the service life of the solid state drive.
Capacity
1TB
Model
TM8FP6001T0C101
Interface
PCIe 3.0 x4 with NVMe 1.3
Controller
Phison 5008
Max Read/Write
Sequential Read (ATTO): 1700MB/s
Sequential Read (CDM): 1500MB/s
Sequential Write (ATTO): 780MB/s
Sequential Write (CDM): 770MB/s
Max 4KB Random Read/Write
4K Aligned Random Read: 200K IOPs
4K Aligned Random Write: 90K IOPs
Form Factor
M.2 2280
Packaging
Retail
Additional Features
MTFB: 2,000,000 hours
DRAM Cache: 256MB
Warranty:
1 Year RTB + 2 Years Manufacturers Warranty, see www.teamgroup.com.tw for details.
|
FEATURES
|
| Interface |
PCI Express 3.0 |
| Mean time between failures (MTBF) |
1500000 h |
| Memory type |
3D NAND |
| Read speed |
1800 MB/s |
| Write speed |
1500 MB/s |
| SSD capacity |
1000 GB |
| S.M.A.R.T. support |
Y |
| Windows operating systems supported |
Y |
| Linux operating systems supported |
Y |
| TRIM support |
Y |
| Random write (4KB) |
200000 IOPS |
| Random read (4KB) |
220000 IOPS |
| Component for |
PC/notebook |
| SSD form factor |
M.2 |
| NVMe |
Y |
| NVMe version |
1.3 |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
40 - 90% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Operating shock |
1500 G |
| Operating vibration |
20 G |
SUSTAINABILITY
|
| Sustainability certificates |
RoHS |
TECHNICAL DETAILS
|
| Sustainability certificates |
RoHS |
WEIGHT & DIMENSIONS
|
| Weight |
6 g |
| Height |
3.8 mm |
| Width |
22 mm |
| Depth |
80 mm |
