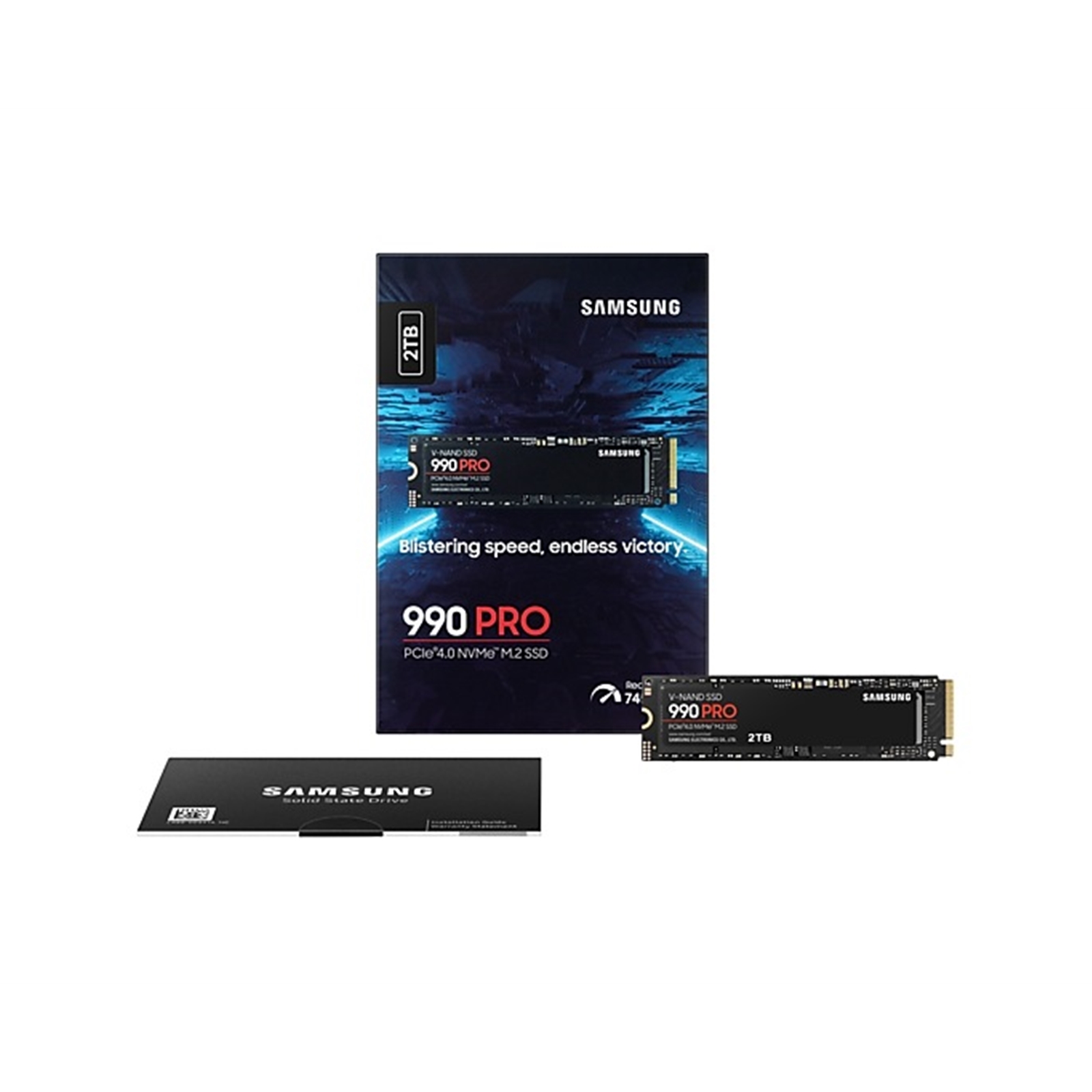

The Ultimate SSD
Reach max performance of PCIe 4.0.Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, so you can stay at the top of your game.
PCIe 4.0 speed maximised
Huge speed boost. 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.
Breakthrough power efficiency
More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO. This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.
Smart thermal solution
Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance. The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.
The champion maker
The best gameplay experience. A more than 55% improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games.
Samsung Magician software
Unlock the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools always gets you the best SSD performance. Protect data, get firmware updates and monitor the drive's health. Your personal SSD toolkit.
World's No.1 Flash Memory
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.
Interface
PCIe Gen 4.0 x4, NVMe 2.0
Sequential Read
Up to 7,450 MB/s
Sequential Write
Up to 6,900 MB/s
Application
Client PCs, Game Consoles
Capacity
2TB
Form Factor
M.2 (2280)
Storage Memory
Samsung V-NAND 3-bit MLC
Cache Memory
Samsung 2GB Low Power DDR4 SDRAM
Controller
Samsung in-house Controller
Weight
Max 9.0g Weight
Dimensions
80 x 22 x 2.3 mm (WxHxD)
Warranty
5-Year Limited
Warranty:
1-Year On-Site Manufacturers Warranty - Tel 020 8232 3200
|
ENERGY MANAGEMENT
|
| Operating voltage |
3.3 V |
| Power consumption (idle) |
0.055 W |
| Power consumption (average) |
5.5 W |
FEATURES
|
| Interface |
PCI Express 4.0 |
| Security algorithms |
256-bit AES |
| Mean time between failures (MTBF) |
1500000 h |
| Memory type |
V-NAND MLC |
| Read speed |
7450 MB/s |
| Write speed |
6900 MB/s |
| SSD capacity |
2 TB |
| S.M.A.R.T. support |
Yes |
| Protection features |
Heat resistant |
| TRIM support |
Yes |
| Random write (4KB) |
1550000 IOPS |
| Random read (4KB) |
1400000 IOPS |
| Component for |
PC |
| Hardware encryption |
Yes |
| PCI Express interface data lanes |
x4 |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| NVMe version |
2.0 |
| DevSlp (device sleep) support |
Yes |
OPERATIONAL CONDITIONS
|
| Operating temperature (T-T) |
0 - 70 °C |
| Operating shock |
1500 G |
| Maximum operating temperature |
70 °C |
PACKAGING DATA
|
| Package type |
Box |
WEIGHT & DIMENSIONS
|
| Weight |
9 g |
| Height |
22 mm |
| Width |
80 mm |
| Depth |
2.3 mm |
