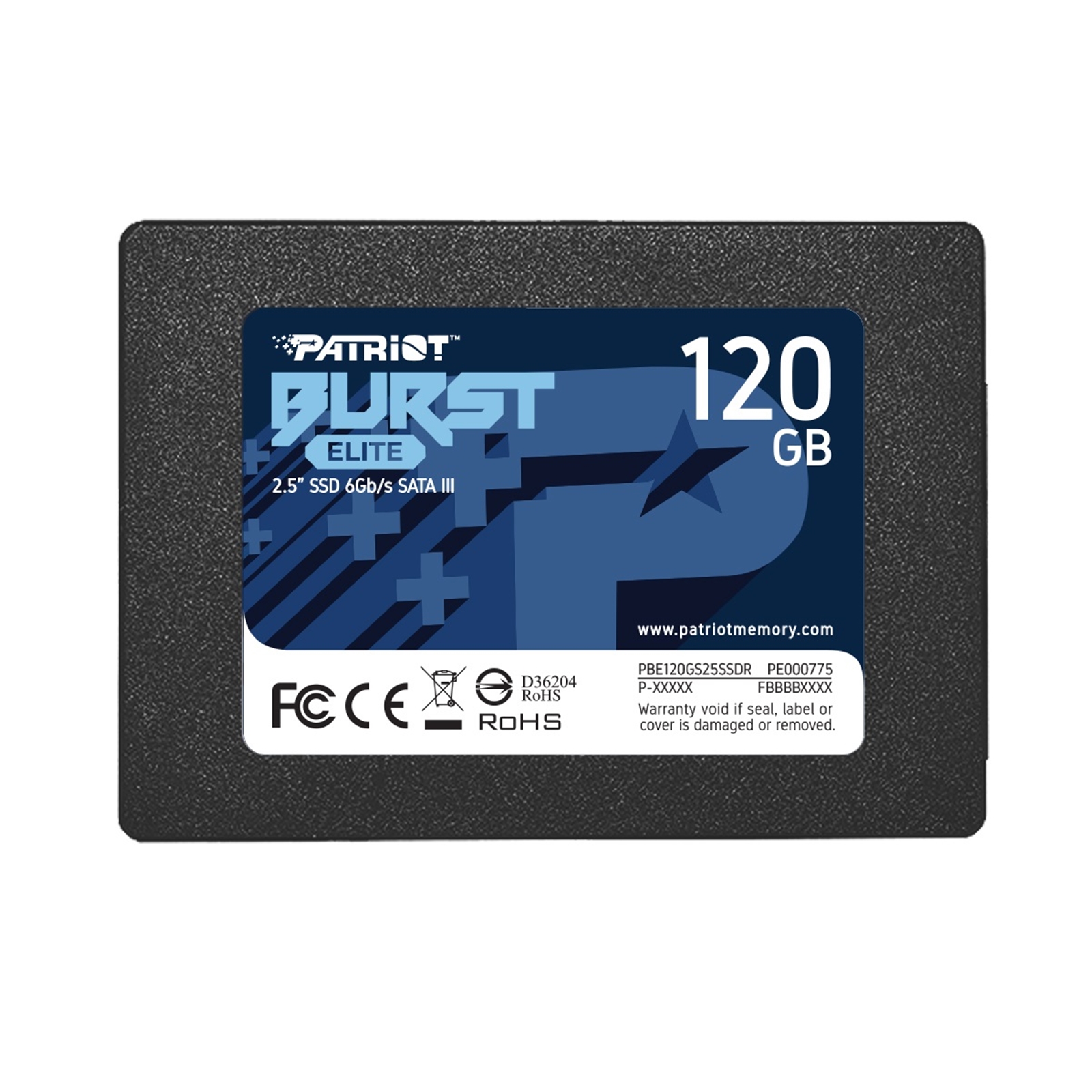

Patriot's Burst Elite is an extension of the Burst, the 2.5" SATA III Solid State Drive, which is supported by the latest SATA controller capable of utilizing both TLC and QLC NAND. The latest addition to the Burst family is the perfect way to enhance computer performance to eliminate bottlenecks. A SATA III 6Gb/s Interface that is backwards compatible with SATA II 3GB/s, this SSD provides greater performance over traditional HDDs.

At only 7mm high in a 2.5" form factor, the Burst Elite is perfect for any PC or laptop upgrade. Patriot's Burst Elite SSD comes in higher capacities for every user, while continuing to price competitively to offer one of the best price-per-performance ratios on the market. Backed by Patriot's award-winning customer service and 3-year warranty, Burst Elite will deliver as one of the most reliable choices in SSDs in the market.

Capacity
120GB

Model
Burst Elite
PBE120GS25SSDR

Interface
SATA III 6.0 Gbit/s (backwards compatible with 3.0 Gbit/s and 1.5 Gbit/s)

TBW
Up to 160TB

Sequential Read & Write
Sequential Read (ATTO): 450 MB/s
Sequential Write (ATTO):320 MB/s

4KB Random Read & Write
4K Random Read: 40K IOPs
4K Random Write: 40K IOPs

MTBF
2,000,000 Hours

Physical Drive Size
2.5"

Other Features
• Latest SATA 3 controller
• Static and Dynamic Wear Leveling
• Bad Block Management
• Low Power Management
• TRIM Support
• Smart ZIP
• Operating Voltage: 5v
• Operating Temperature: 0 ~ 70°C

Weight
53g

Packaging
Retail

Manufacturer's Website:

www.patriotmemory.com

Warranty:

3 Year Return To Base Warranty

ENERGY MANAGEMENT
Operating voltage	5 V
FEATURES
Interface	Serial ATA III
Mean time between failures (MTBF)	2000000 h
Data transfer rate	6 Gbit/s
Read speed	450 MB/s
Write speed	320 MB/s
SSD capacity	120 GB
S.M.A.R.T. support	Y
TRIM support	Y
Random write (4KB)	40000 IOPS
Random read (4KB)	40000 IOPS
Component for	PC/notebook
TBW rating	50
SSD form factor	2.5"
NVMe	N
Sequential read speed (ATTO)	450 MB/s
Sequential write speed (ATTO)	320 MB/s
Target workload	Mixed Use (MU)
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 70 °C
PACKAGING DATA
Package weight	53 g
Package type	Hanging box
WEIGHT & DIMENSIONS
Weight	46 g
Height	7 mm
Width	69 mm
Depth	100 mm
