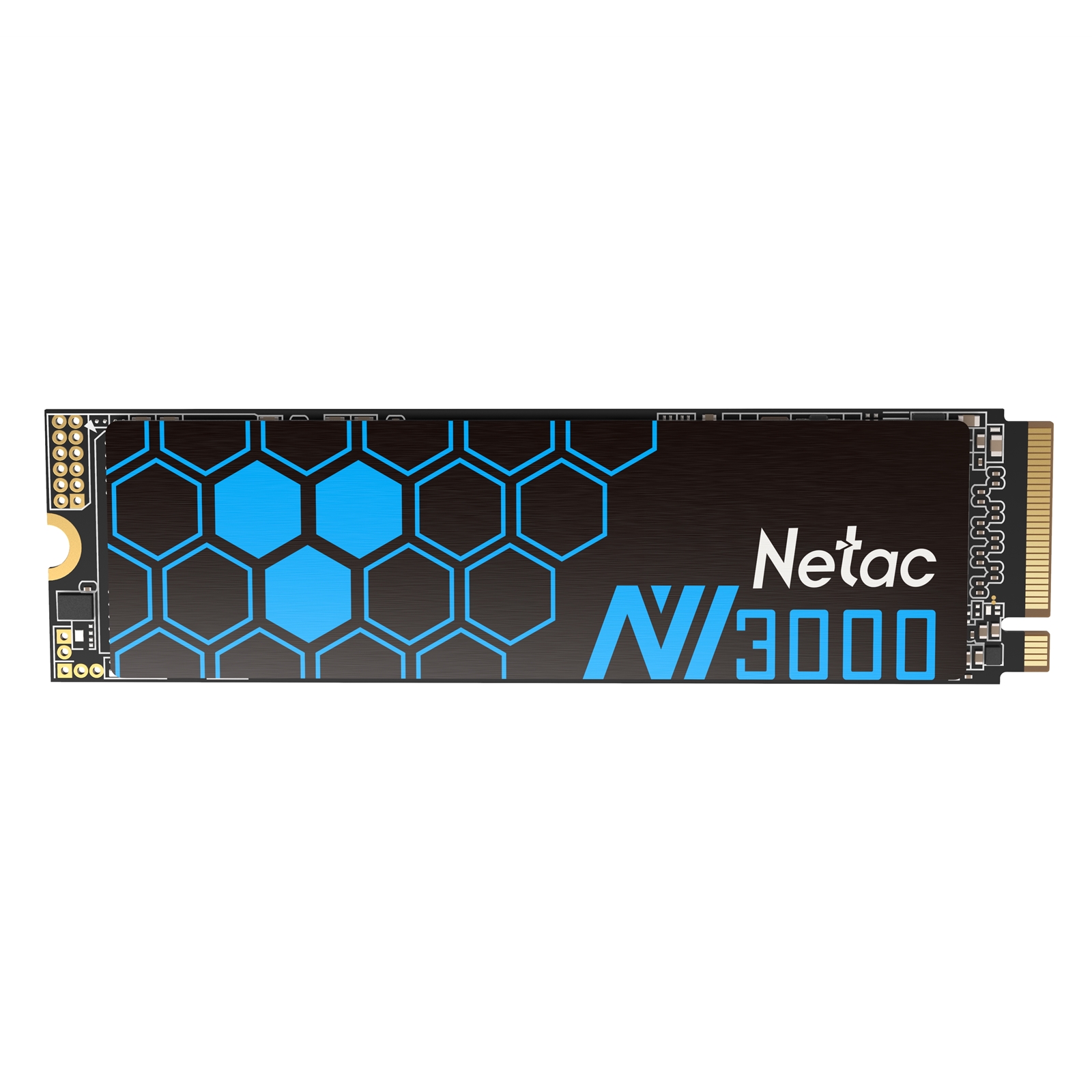

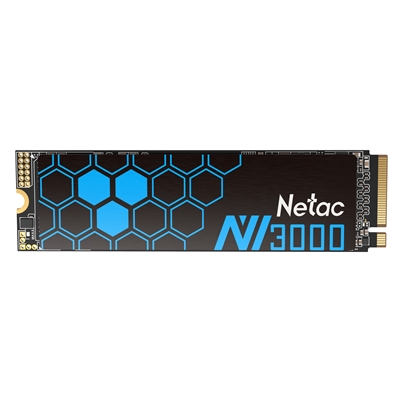

The Netac NV3000 M.2 NVMe SSD uses an ultra-high-speed PCIe Gen3 x4 interface and complies with the NVMe 1.4 standard. With read and write speeds up to 3300MB/s and 2900MB/s respectively, it is the best choice for your PC upgrading. It supports SLC caching, which can improve efficiency when loading applications or copying files. Besides, it adopts the aluminium thermal pad for heat dissipation can effectively cool down and avoid overheating.

Maximum Speed
With PCIe 3.0 high-speed performance, it avoids loading difficulties, satisfying the desire for speed.

Superior Heat Dissipation
The NV3000 adopts the combination of graphene and aluminium heat dissipation material innovatively, which keeps the unit cool for optimal performance.

Efficiency and Durability
A new generation of 3D NAND Flash adopts a vertical stacking unit structure, which also supports LDPC intelligent error correction at the same time. Additionally, the NV3000 is equipped with the HMB and SLC Cache technology which intelligently optimize the cache space.

Key Features

- NVMe M.2 PCIe Gen3 x4 interface
- Read/write speed up to 3400/2900MB/s
- Supports S.M.A.R.T./TRIM Command/NCQ
- Compact M.2 2280 form factor
- 5-year limited warranty

Specifications

Max. Sequential Read (MB/s)
3100

Max. Sequential Write (MB/s)
1400

Max. Random Read (IOPS)
160K

Max. Random Write (IOPS)
120K

Total Bytes Written (TBW)
150

Storage Temperature
-40°C~85°C

Operation Temperature
0°C~70°C

Shock Resistance
1500g/0.5ms

MTBF
2 million hours

Limited Warranty (Years)
5

Product Dimensions
80x22x3mm
