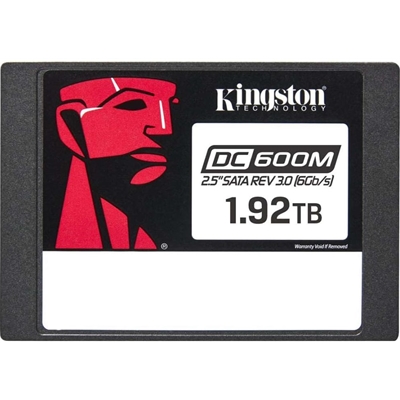

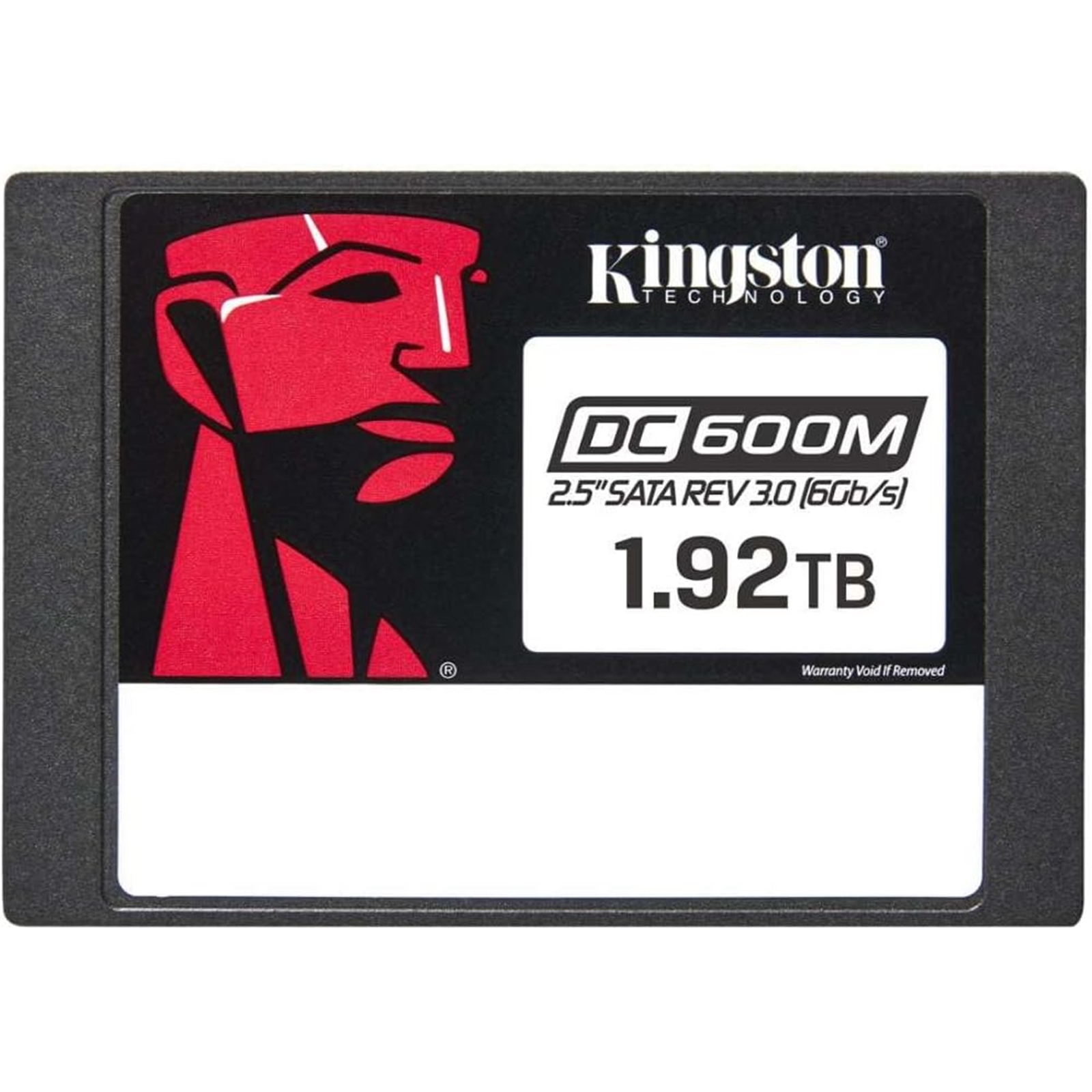

DC600M 2.5 Inch SATA Enterprise SSD
6Gbps SATA 3.0 Storage for Mixed-Use Workloads

Kingston's DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for ?mixed use? workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers

Key Features
Designed for data center environments
Hardware-based power loss protection
Latency and IOPS consistency
Capacities up to 7680GB

Designed For Data Center Environments
Optimized to meet the high demands of Server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent Quality of Service (QoS)
Optimized performance predictability to hit Service-level agreements (SLAs).

Capacities up to 7680GB
Upgrade and manage storage with capacities up to 7680GB.

Specification

Form Factor
2.5 Inch

Interface
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacity
1920GB

NAND
3D TLC

DRAM Cache
Yes

Sequential Read
560MB/s

Sequential Write
530MB/s

Steady State 4k Random Read/Write
94,000/78,000 IOPS

Hot-Plug Capable
Static and Dynamic Wear Leveling

Power Consumption
Idle: 1.30W
Average: 1.45W
Max Read: 1.6W
Max Write: 3.6W

Storage Temperature
-40°C ~ 85°C

Operating Temperature
0°C ~ 70°C

Vibration Operating
2.17G Peak (7–800Hz)

Vibration Non-Operating
20G Peak (10–2000Hz)

MTBF
2 million hours

UBER
=10 -17

Warranty
Limited 5-year warranty

Dimensions
69.9 mm x 100 mm x 7 mm

Weight
92.34g

Manufacturer's Website:

www.kingston.com/en

Warranty:

2 Year Return To Base, 1 Year return to Manufacturer Warranty 01932 738888

ENERGY MANAGEMENT
Power consumption (idle)	1.3 W
Power consumption (write)	1.6 W
Power consumption (max)	3.6 W
Power consumption (average)	1.45 W
FEATURES
Interface	Serial ATA III
Mean time between failures (MTBF)	2000000 h
Memory type	3D TLC NAND
Data transfer rate	6 Gbit/s
Read speed	560 MB/s
Write speed	530 MB/s
Hot-Plug support	Yes
SSD capacity	1.92 TB
Random write (4KB)	78000 IOPS
Random read (4KB)	94000 IOPS
Component for	Server/workstation
Read latency	200 µs
Write latency	30 µs
Hardware encryption	No
TBW rating	3504
SSD form factor	2.5"
H/W PLP function	Yes
Target workload	Mixed Use (MU)
Use conditions	Server/Enterprise
LOGISTICS DATA
Country of origin	China, Taiwan
Master (outer) case height	69.9 mm
Master (outer) case width	135.9 mm
Master (outer) case gross weight	989.98 g
Master (outer) case length	203.2 mm
Products per master (outer) case	10 pc(s)
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Non-operating vibration	20 G
Operating vibration	2.17 G
PACKAGING DATA
Package weight	91.2 g
Package depth	9.1 mm
Package height	184.2 mm
Package width	129.5 mm
WEIGHT & DIMENSIONS
Weight	69 g
Height	70 mm
Width	69.9 mm
Depth	100.1 mm
