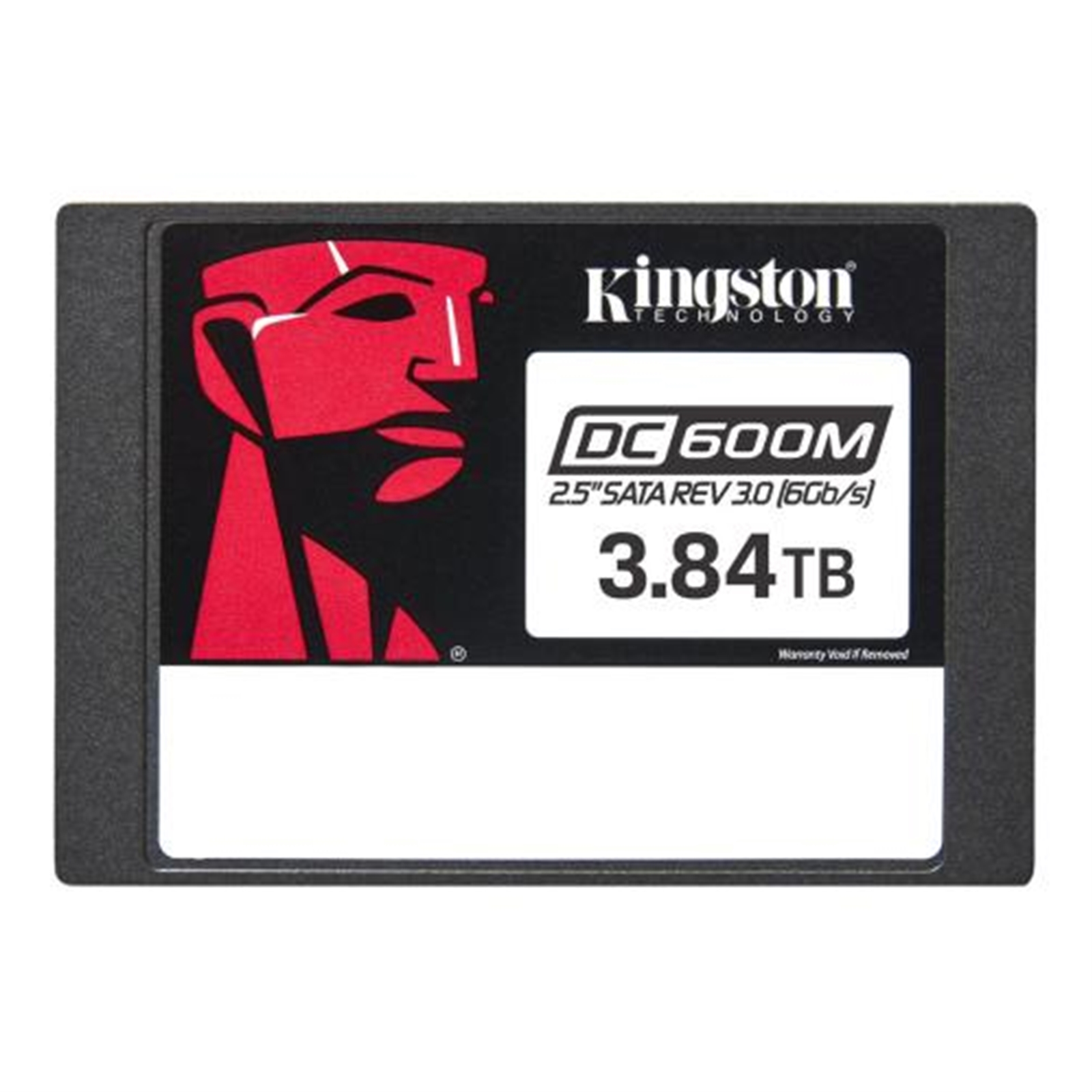

DC600M 2.5 Inch SATA Enterprise SSD
6Gbps SATA 3.0 Storage for Mixed-Use Workloads

Kingston's DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for ?mixed use? workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers

Key Features
Designed for data center environments
Hardware-based power loss protection
Latency and IOPS consistency
Capacities up to 7680GB

Designed For Data Center Environments
Optimized to meet the high demands of Server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent Quality of Service (QoS)
Optimized performance predictability to hit Service-level agreements (SLAs).

Capacities up to 7680GB
Upgrade and manage storage with capacities up to 7680GB.

Specification

Form Factor
2.5 Inch

Interface
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacity
3840GB

NAND
3D TLC

DRAM Cache
Yes

Sequential Read
560MB/s

Sequential Write
530MB/s

Steady State 4k Random Read/Write
94,000/59,000 IOPS

Hot-Plug Capable
Static and Dynamic Wear Leveling

Power Consumption
Idle: 1.30W
Average: 1.45W
Max Read: 1.6W
Max Write: 3.6W

Storage Temperature
-40°C ~ 85°C

Operating Temperature
0°C ~ 70°C

Vibration Operating
2.17G Peak (7–800Hz)

Vibration Non-Operating
20G Peak (10–2000Hz)

MTBF
2 million hours

UBER
=10 -17

Warranty
Limited 5-year warranty

Dimensions
69.9 mm x 100 mm x 7 mm

Weight
92.34g
