Always On, Always Watching

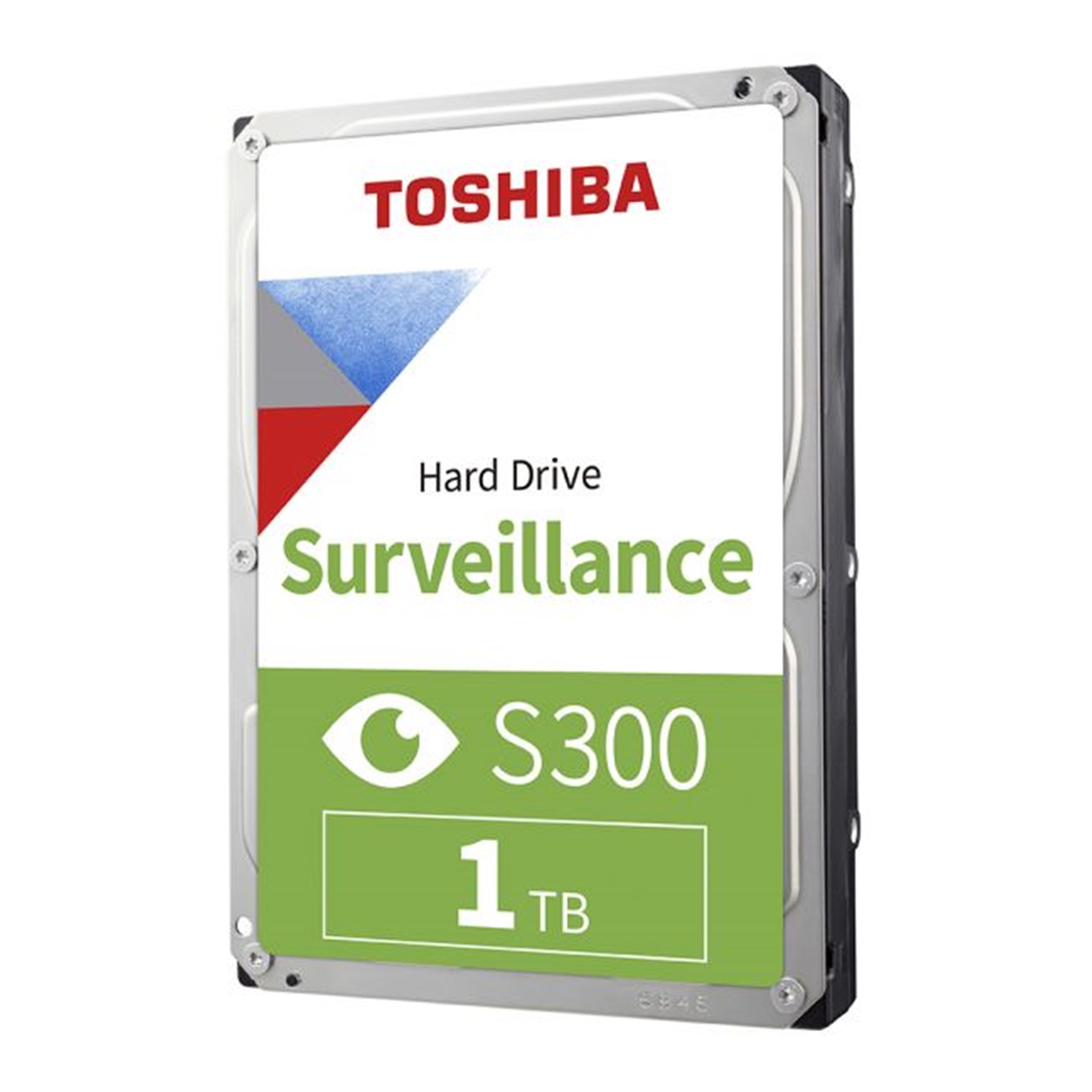

With surveillance systems, nothing but the best is good enough. The Toshiba 3.5-inch S300 is built to meet the highest demands. With support for up to 64 high-resolution surveillance video cameras simultaneously and up to 6 TB capacity, it brings everything into clear view. Each S300 is built with the highest-quality components and has passed rigorous tests to ensure 24x7 reliability and performance. That?s Toshiba quality you can trust under the harshest working conditions.
DESIGNED AND TESTED FOR COMPATIBILITY
The S300 has been designed and tested to support up to 64 high resolution cameras, allowing flexible scalability for your security camera systems. Compatible with DVR, NVR, video servers and video management systems for around-the-clock security, the surveillance never sleeps – so that you can.
SMART PERFORMANCE DELIVERS
The S300 is a smart performer. That's because Toshiba's Dynamic Cache Technology optimises read and write cycle cache allocation through buffer management and a special on-board cache algorithm.
INTEGRATED RV SENSORS
Regular hard disk drives without RV sensors can affect the performance of a multi-bay system by generating 'knock-on' vibration. The S300 ensures high reliability by minimising vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration - eliminating the possibility of 'knock-on' vibration in multi-bay surveillance systems.
Top Features
- 3.5" SATA III Hard Drive
- 5400RPM
- 64MB Buffer
- Supports up to 32 cameras
- 24/7 Operation
Product Specifications
Form factor
3.5-inch
Interface
6.0Gbit/s
Numbers of cameras supported
64
Drive bays supported
Up to 8
Shock Sensor
Yes
Advanced Format (AF)
Yes
RoHS compatible
Yes
Halogen free
Yes
Recording Technology
CMR
Rotational Speed
5700RPM
Max. data transfer speed (sustained MB/s typ.)
153
Buffer Size
64MB
Average Latency (ms)
5.27
Workloads (TB/year)
180
24/7 Operation
Yes
Warranty
3 Years
Weight
450g
Dimensions (L x W x H)
147 x 101.85 x 26.1
Warranty:
3 Year Return To Base Warranty
|
ENERGY MANAGEMENT
|
| Power consumption (typical) |
5.7 W |
FEATURES
|
| HDD capacity |
1 TB |
| Interface |
Serial ATA III |
| Type |
HDD |
| HDD speed |
5700 RPM |
| HDD size |
3.5" |
| Start/stop cycles |
600000 |
| Native Command Queuing (NCQ) |
Yes |
| Component for |
Surveillance system |
| Storage drive buffer size |
64 MB |
| Toshiba Stable Platter Technology |
Yes |
| Toshiba Dynamic Cache Technology |
Yes |
| Rotational Vibration (RV) sensors |
Yes |
| Advanced Format (AF) |
Yes |
| Shock sensor |
Yes |
| 24/7 operation |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
84717050 |
OPERATIONAL CONDITIONS
|
| Operating temperature (T-T) |
0 - 70 °C |
OTHER FEATURES
|
| Toshiba Stable Platter Technology |
Yes |
| Toshiba Dynamic Cache Technology |
Yes |
PACKAGING DATA
|
| Quantity |
1 |
| Quantity per pack |
1 pc(s) |
TECHNICAL DETAILS
|
| Harmonized System (HS) code |
84717050 |
WEIGHT & DIMENSIONS
|
| Weight |
440 g |
| Height |
147 mm |
| Width |
101.8 mm |
| Depth |
26.1 mm |
