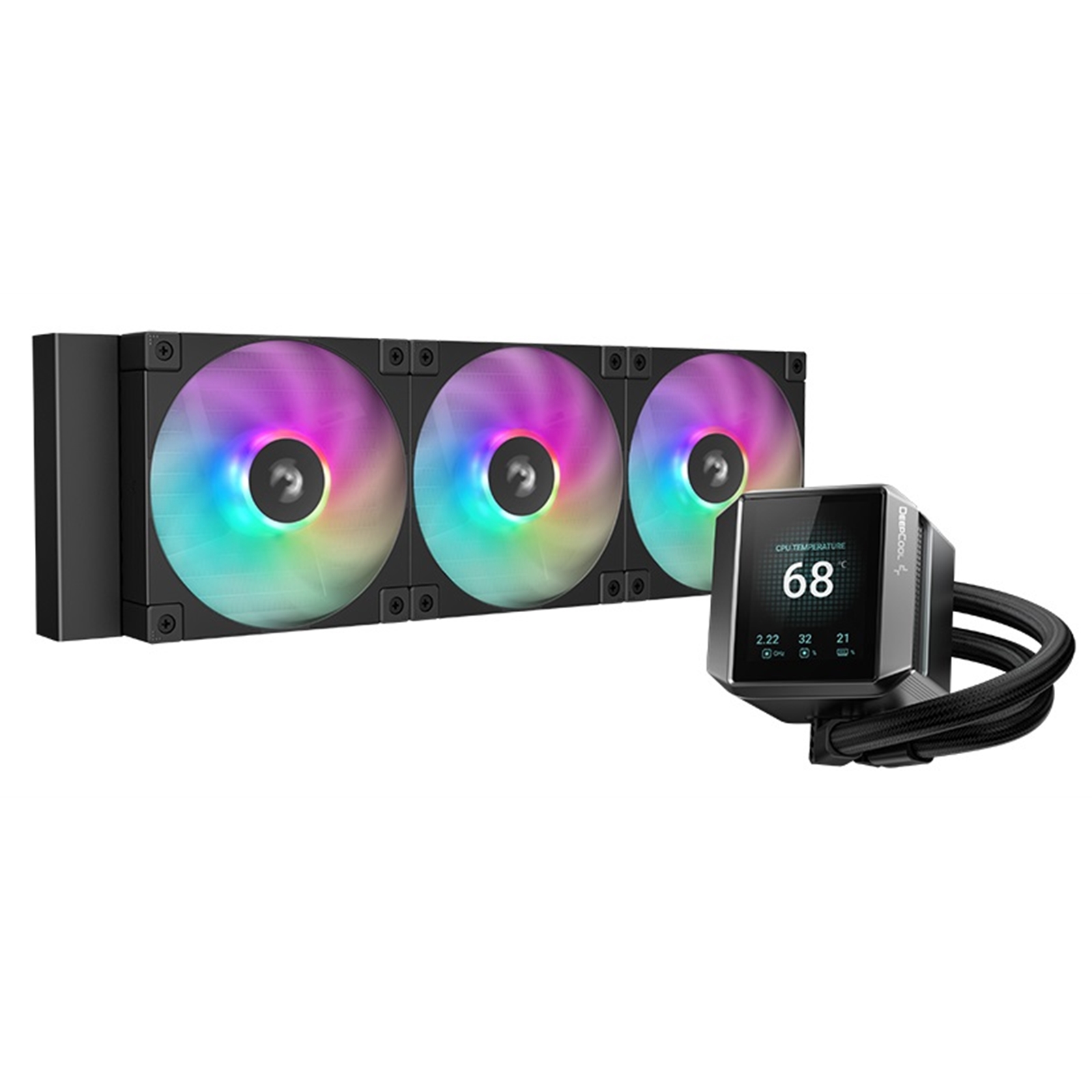

The DeepCool MYSTIQUE 360 ARGB Liquid CPU Cooler is a high-performance liquid cooling solution designed to keep your CPU running at optimal temperatures. Featuring a 360mm radiator, three 120mm ARGB fans, and a brilliant 2.8" TFT LCD screen, this cooler combines excellent heat dissipation with customizable visuals. The 5th generation pump ensures efficient and reliable performance, while anti-leak technology provides added peace of mind. With ARGB synchronization and easy installation, the MYSTIQUE 360 is the perfect addition to any high-performance build.
Key Features
2.8" Sharp LCD: Personalize the vibrant 640x480 TFT screen with your own images and GIFs.
Auto-Adjusting Screen: Built-in gyroscopic sensors for automatic orientation adjustment.
DeepCreative Control Center: Manage real-time system stats, sync RGB lighting, and more.
Versatile Monitoring Options: Display CPU Frequency, Time, Pump Speed, Fan Speed, and Temperature.
Efficient 5th Gen Pump: High-performance 3-phase, 6-slot motor rotating up to 3400 RPM.
Optimized Coldplate: Enhanced heat transfer with 0.13mm intensive flow channels.
FD12 ARGB Fans: Optimized for superior cooling with long-life Hydro Bearings.
Specifications:
Model:
R-LX750-BKADSNC-G-1
Net Weight:
1856 g
Radiator Dimensions:
402 x 120 x 27 mm (L x W x H)
Radiator Material:
Aluminum
Tube Length:
410 mm
Pump Dimensions:
94 x 80 x 68 mm (L x W x H)
Pump Speed:
3400 RPM ±10%
Pump Connector:
3-pin
Pump Rated Voltage:
12 VDC
Pump Rated Current:
0.35 A
Pump Power Consumption:
4.2 W
Fan Dimensions:
120 x 120 x 25 mm (L x W x H)
Fan Speed:
600~2400 RPM ±10%
Fan Airflow:
72.04 CFM
Fan Air Pressure:
3.48 mmAq
Fan Noise:
= 38.71 dB (A)
Fan Connector:
4-pin PWM
Bearing Type:
Hydro Bearing
Fan Rated Voltage:
12 VDC
Fan Rated Current:
0.22 A
Fan Power Consumption:
2.64 W
LED Type:
Addressable RGB LED
LED Connector:
3-pin (+5V-D-G)
LED Rated Voltage:
5 VDC
LED Power Consumption:
3.15 W (PUMP) / 3.15 W (FAN x 3)
Application:
Intel LGA1700/1200/1151/1150/1155, AMD AM5/AM4
Special Features:
Anti-Leak Technology, Quick and Easy Installation, ARGB Synchronization, Silent Operation, High Performance Cooling
Warranty:
5 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Display type |
TFT-LCD |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Pump voltage |
12 V |
| Pump current |
350 mA |
| Fan voltage |
12 V |
| Fan current |
0.3 A |
| Fan power consumption |
2.64 W |
| Pump power consumption |
4.2 W |
| LED voltage |
5 V |
| LED power consumption (pump) |
2.45 W |
OTHER FEATURES
|
| Built-in display |
Yes |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
72.04 cfm |
| Maximum air pressure |
3.48 mmH2O |
| Pump motor speed |
3400 RPM |
| Fan speed (max) |
2400 RPM |
| Fan speed (min) |
600 RPM |
| Rotational speed (max) |
2400 RPM |
| Rotational speed (min) |
600 RPM |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
38.71 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Pump connector |
3-pin |
WEIGHT & DIMENSIONS
|
| Weight |
1.85 kg |
| Radiator width |
12 cm |
| Radiator depth |
40.2 cm |
| Radiator height |
2.7 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
7.7 cm |
| Pump depth |
9.3 cm |
| Pump height |
6.6 cm |
