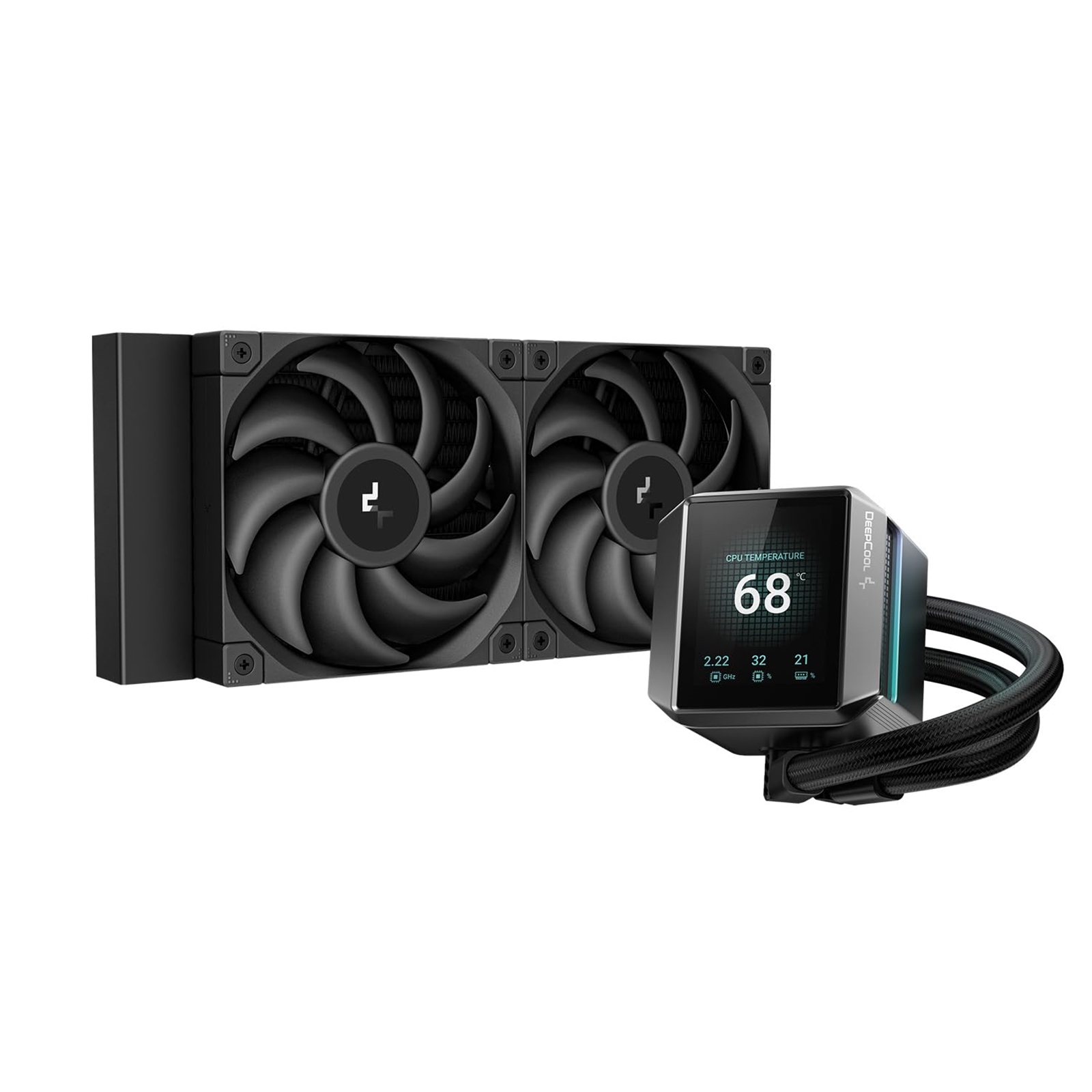

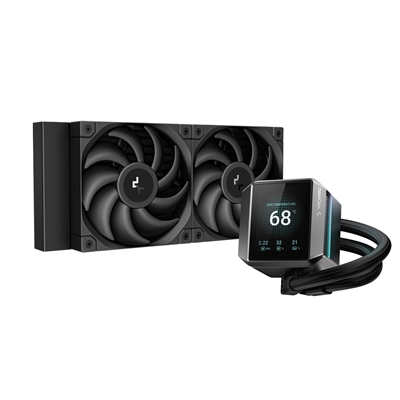

MYSTIQUE 240
The MYSTIQUE series is DeepCool's new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.
MYSTIQUE 240
Visualizing Your Imagination
MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 240 utilizes built-in gyroscopic sensors.
DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.
5th GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 240 brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).
REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 240 gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.
NEW HIGH PERFORMANCE FT12 SE FANS
The MYSTIQUE 240 will include three high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow. They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.
ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 240 to the latest mainstream CPUs is included in the box, so you are ready to go.
Specification
Application
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Radiator Dimensions
282 x 120 x 27 mm (L x W x H)
Radiator Material
Aluminum
Tube length
410 mm
Pump Dimensions
93 x 77 x 66 mm (L x W x H)
Pump Speed
3400 RPM±10%
Pump Noise
21 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.35 A
Pump Power Consumption
4.2 W
Fan Dimensions
120 x 120 x 25 mm (L x W x H)
Fan Speed
500~2150 RPM±10%
Fan Airflow
72.45 CFM
Fan Noise
=36.49 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.3 A
Fan Power Consumption
3.6 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.45 W(PUMP)
Display Specifications
2.83 inch 480 x 640 TFT LCD
Warranty:
3 Year Return To Base Warranty
DESIGN
|
Material |
Aluminium |
Product colour |
Black |
Number of fans |
2 fan(s) |
Display type |
LCD |
Fan connector |
4-pin |
LED connector type |
3-pin |
ENERGY MANAGEMENT
|
Pump voltage |
12 V |
Pump current |
350 mA |
Fan current |
0.3 A |
Fan power consumption |
3.6 W |
Pump power consumption |
4.2 W |
LED voltage |
5 V |
LED power consumption (pump) |
2.45 W |
PACKAGING CONTENT
|
Package type |
Box |
Mounting kit |
Yes |
Screws included |
Yes |
CPU bracket(s) |
Yes |
PERFORMANCE
|
Type |
All-in-one liquid cooler |
Fan diameter |
12 cm |
Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Suitable location |
Processor |
Minimum airflow (imperial) |
72.45 cfm |
Maximum air pressure |
4.32 mmH2O |
Pump motor speed |
3400 RPM |
Rotational speed (max) |
2150 RPM |
Rotational speed (min) |
500 RPM |
Bearing type |
Fluid Dynamic Bearing (FDB) |
Quantity per pack |
1 pc(s) |
Pump noise level |
21 dB |
Pulse-width modulation (PWM) support |
Yes |
Pump connector |
3-pin |
WEIGHT & DIMENSIONS
|
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
Pump width |
7.7 cm |
Pump depth |
9.3 cm |
Pump height |
6.6 cm |
