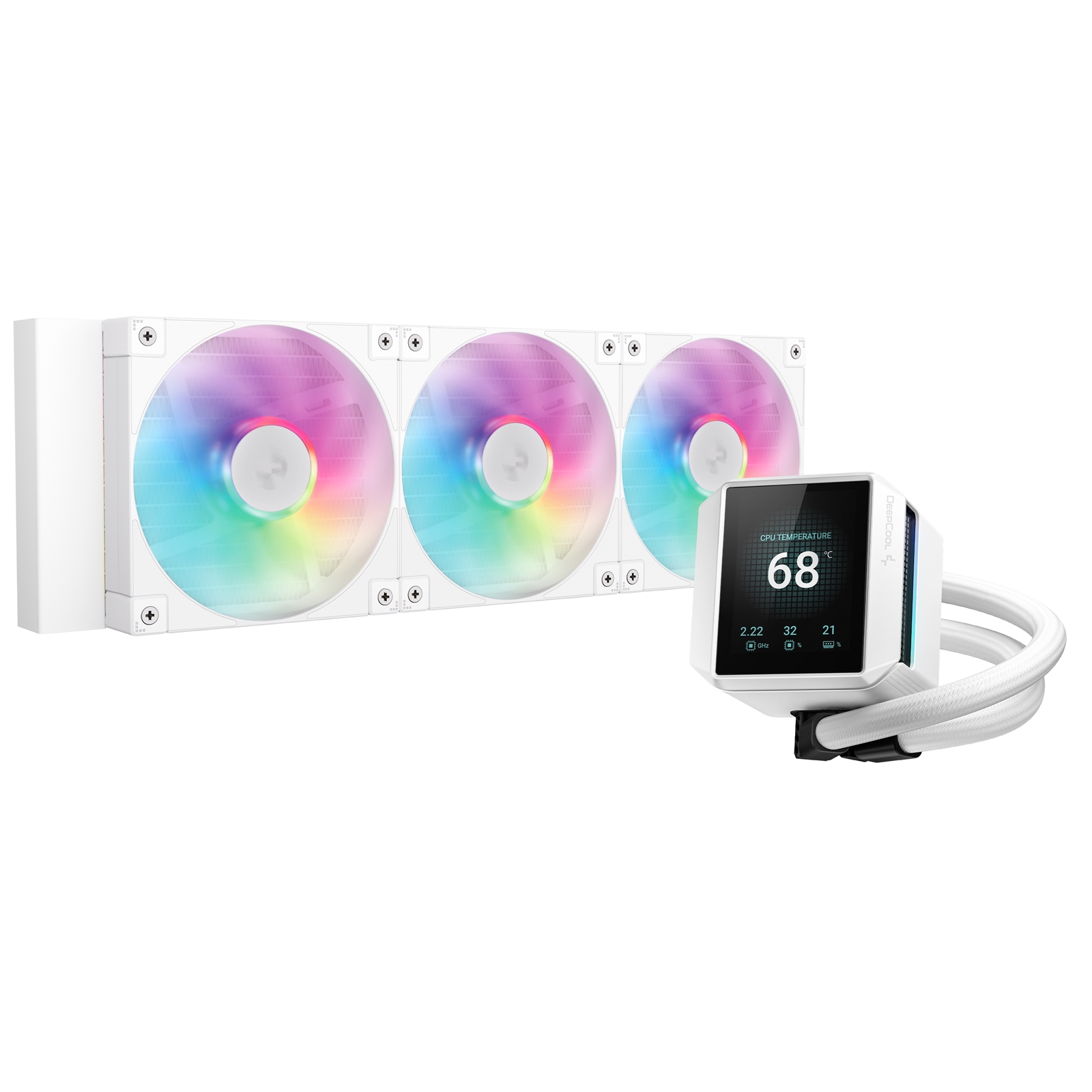

DeepCool Mystique 360 WH ARGB (MPN: R-LX360-WHDSNMCP-G-1) is a high-performance liquid CPU cooler designed for modern processors. It features a customizable 2.8-inch TFT LCD screen for personalized content display and is equipped with three 120mm ARGB fans for efficient cooling.

Key Features:
Customizable LCD Display: The 2.8-inch TFT LCD screen offers a sharp 640x480 resolution, allowing users to display custom images and animated GIFs. The screen orientation automatically adjusts using built-in gyroscopic sensors.
High-Performance Pump: The 5th generation pump operates at up to 3400 RPM, enhancing cooling efficiency for demanding CPUs.
Efficient Radiator: The 360mm aluminum radiator provides effective heat dissipation, suitable for high-performance gaming and overclocking.
ARGB Fans: Three FD12 ARGB PWM fans are included, each offering a speed range of 600~2400 RPM, delivering a maximum airflow of 72.04 CFM. The fans feature a hydro bearing for extended lifespan and quieter operation.
Anti-Leak Technology: DeepCool's patented Anti-Leak Technology regulates internal pressure, reducing the risk of leaks and extending the cooler's lifespan.
DeepCreative Software: This application allows users to monitor system statistics, customize display content, and synchronize RGB lighting with the motherboard's ARGB controller.

Full Specifications:

Radiator Dimensions:
402 � 120 � 27 mm (L � W � H)

Radiator Material:
Aluminum

Tube Length:
410 mm

Pump Dimensions:
93 � 77 � 66 mm (L � W � H)

Pump Speed:
3400 RPM ±10%

Pump Connector:
3-pin

Pump Rated Voltage:
12 VDC

Pump Rated Current:
0.35 A

Pump Power Consumption:
4.2 W

Fan Dimensions:
120 � 120 � 25 mm (L � W � H)

Fan Speed:
600~2400 RPM ±10%

Fan Airflow:
72.04 CFM

Fan Air Pressure:
3.48 mmAq

Fan Noise:
=38.71 dB(A)

Fan Connector:
4-pin PWM

Bearing Type:
Hydro Bearing

Fan Rated Voltage:
12 VDC

Fan Rated Current:
0.22 A

Fan Power Consumption:
2.64 W

LED Type:
Addressable RGB LED

LED Connector:
3-pin (+5V-D-G)

LED Rated Voltage:
5 VDC

LED Power Consumption:
2.45 W (Pump) / 3.15 W (Fan �3)

Display Specifications:
2.83-inch 480 � 640 TFT LCD

This cooler is compatible with a wide range of Intel and AMD sockets, making it a versatile choice for various system configurations.
