LT520

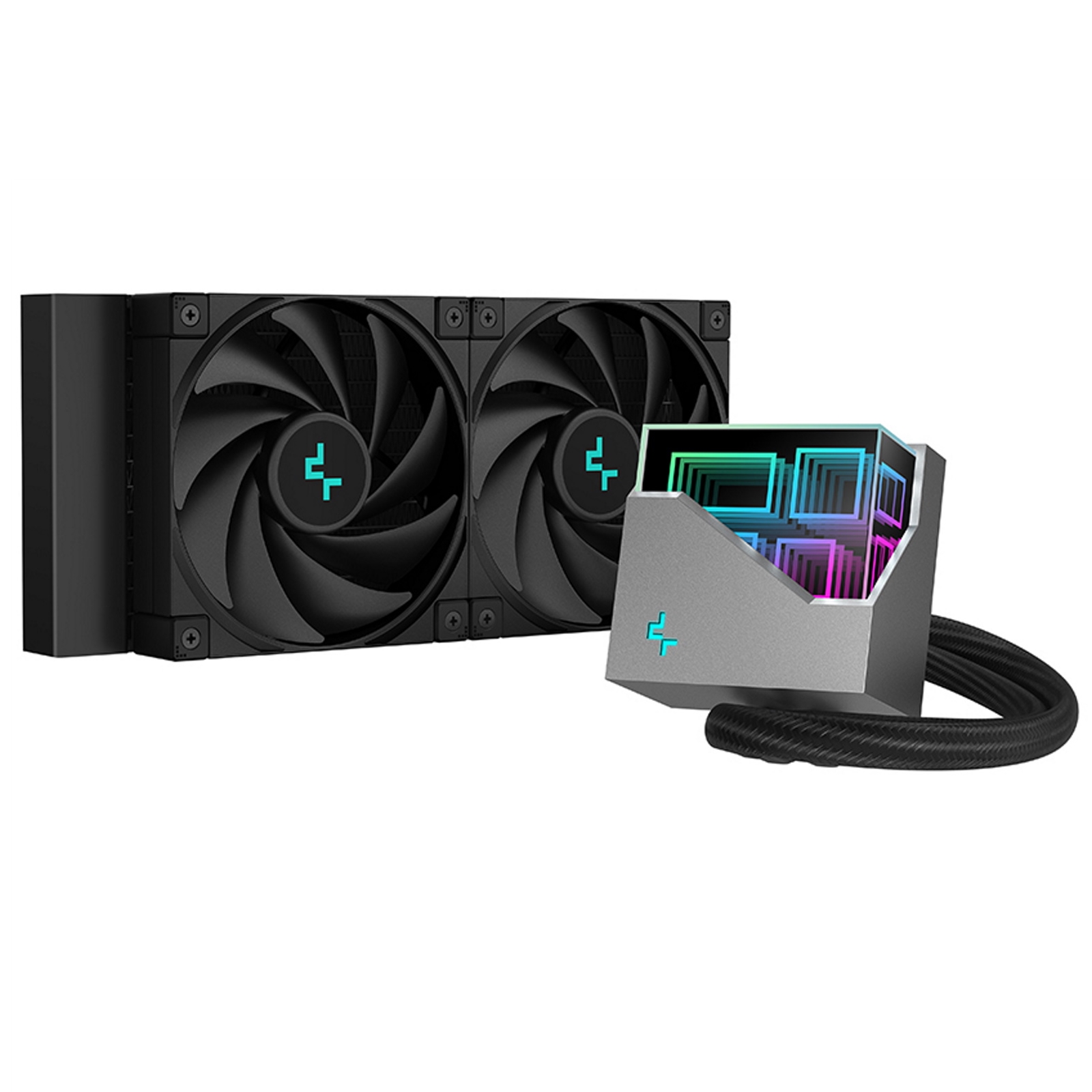

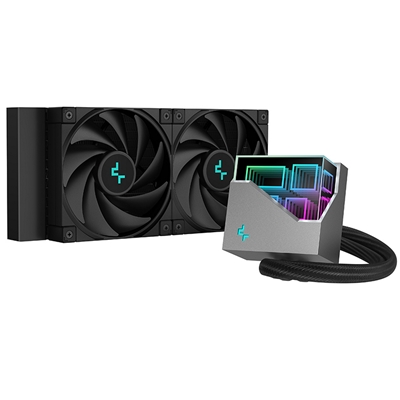

The DeepCool LT520 high-performance liquid CPU cooler provides strong heat dissipation power with a 240mm radiator, two precision-tuned FK120 fans, and a multidimensional infinity mirror top cap.
Compatible with...
- Asus Aura Sync
- Razer Chroma Sync
- Gigabyte RGB Fusion
- MSI Mystic Light Sync
- ASRock Polychrome Sync
BREAK OPEN ANOTHER DIMENSION
A three-dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi-faceted geometric reflection.
A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
- 1: Improved microchannel design ensures optimal coolant flow.
- 2: Powerful three-phase drive motor up to 3100 RPM.
- 3: Thick solid copper base with a seamless match.
EXTREMELY POWERFUL
Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.
- 500-2250 RPM: Dynamic PWM Range
- 85.85 CFM: Supreme Airflow
- 3.27 mmAq: High Static Pressure
- =32.9 dB(A): Full Load Noise
SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.
SIMPLE AND SECURE
The installation process is intuitive and simple to use ensuring a proper fit and pressure match on any platform. The newly designed brackets are blacked out and stealthy hidden when installed into your system.
Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4
Net Weight
1504 g
Radiator Dimensions
282 x 120 x 27 mm
Radiator Material
Aluminum
Tube length
410 mm
Pump Dimensions
94 x 80 x 68 mm
Pump Speed
3100 RPM±10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.38 A
Pump Power Consumption
4.56 W
Fan Dimensions
120 x 120 x 25 mm
Fan Speed
500~2250 RPM±10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
=32.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.22 A
Fan Power Consumption
2.64 W
LED Type
Addressable RGB LED
LED Connector
3-pin (+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
3.15 W (PUMP)
Warranty:
5 Years Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Illumination LED |
Y |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Voltage |
12 V |
| Pump voltage |
12 V |
| Pump current |
0.38 mA |
| Fan voltage |
12 V |
| Fan current |
0.22 A |
| Fan power consumption |
2.64 W |
| Pump power consumption |
4.56 W |
| LED voltage |
5 V |
| LED power consumption (pump) |
3.15 W |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Suitable location |
Processor |
| Maximum airflow |
85.85 cfm |
| Maximum air pressure |
3.27 mmH2O |
| Pump motor speed |
3100 RPM |
| Fan speed (max) |
2250 RPM |
| Fan speed (min) |
500 RPM |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
32.9 dB |
| Pump noise level |
19 dB |
| Pump connector |
3-pin |
| Fan bearing technology |
Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
|
| Weight |
1.54 kg |
| Height |
80 mm |
| Radiator width |
28.2 cm |
| Radiator depth |
12 cm |
| Radiator height |
2.7 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
9.4 cm |
| Pump depth |
6.8 cm |
| Pump height |
8 cm |
