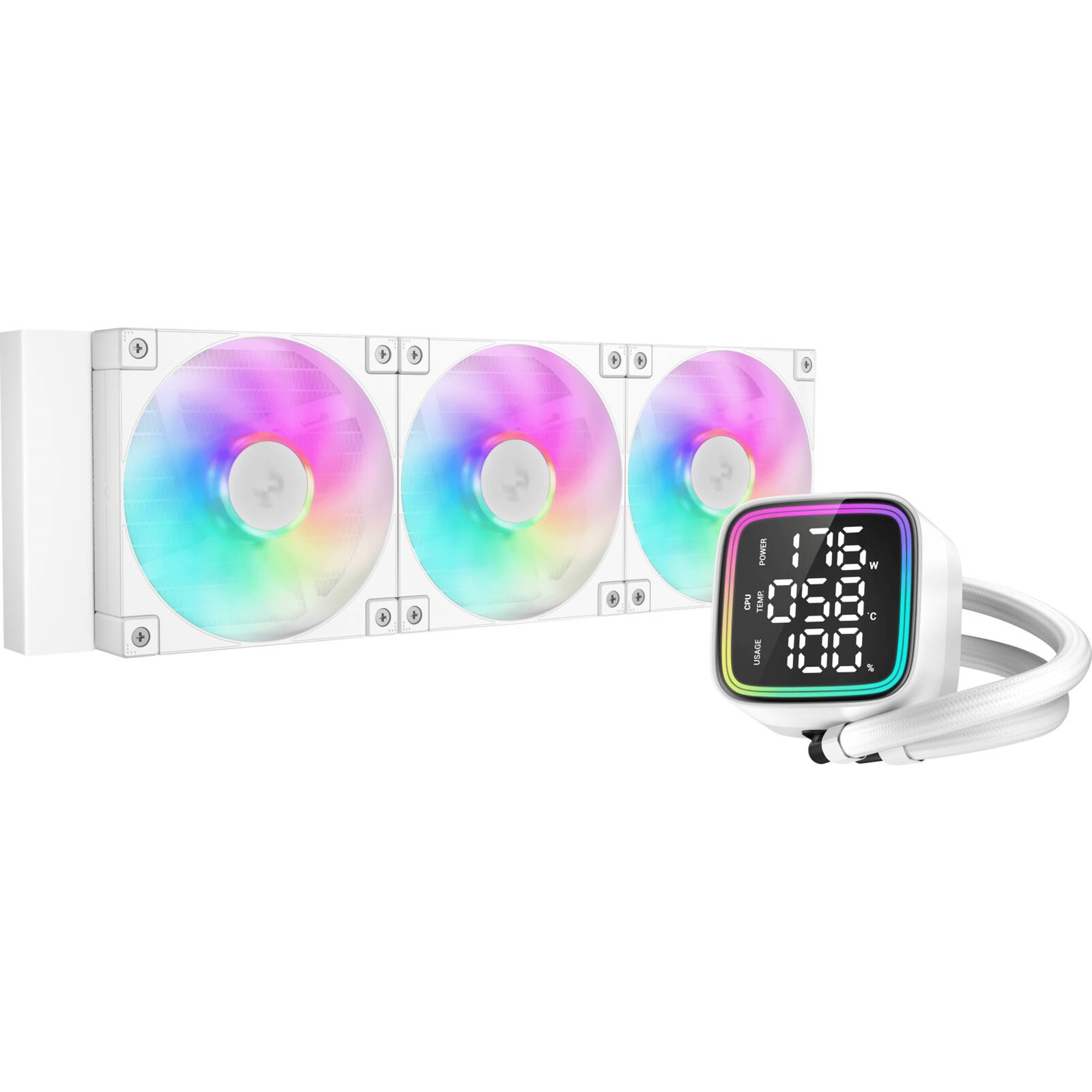

DeepCool LD360 Liquid CPU Cooler

Description: The DeepCool LD360 Liquid CPU Cooler is a high-performance cooling solution designed to keep your CPU running at optimal temperatures. Equipped with a 360mm radiator, three 120mm ARGB PWM fans, and a multi-line LED display, it offers real-time monitoring of your CPU's power consumption, temperature, and usage. The USB interface allows for easy control via a simple application, while anti-leak technology ensures durability and reliability.

Specifications:

Model:
LD360

Radiator Size:
360mm

Fan Type:
Three 120mm ARGB PWM Fans

Display:
Multi-line LED Display

Cooling Technology:
Liquid CPU Cooler

Connections
£ pin ARGB
4 pin Fan

Compatibility:
Intel LGA1700/1200/1151/1150/1155/1851, AMD AM5/AM4

Pump Speed:
3400 RPM ±10%

Fan Speed:
600-2400 RPM ±10%

Airflow:
72.04 CFM

Noise Level:
=38.71 dB(A)

Radiator Material:
Aluminum

Tube Length:
410mm

Pump Dimensions:
89 x 78 x 53mm (L x W x H)

Fan Dimensions:
120 x 120 x 25mm (L x W x H)

Weight:
1786g

Power Consumption:
Pump: 4.2W, Fans: 2.64W each

Special Features:
Anti-Leak Technology, Addressable RGB Lighting, Real-Time CPU Status Monitoring

Connections:
5V ARGB header, 4-pin PWM header, 3-pin connector, USB 2.0 header for control

Manufacturer's Website:

uk.deepcool.com

Warranty:

3 Year Return To Base Warranty

DESIGN
Product colour	White
Number of fans	3 fan(s)
Illumination colour	Multi
Display type	LED
Fan connector	4-pin
Radiator material	Aluminum
Illumination LED	Yes
LED connector type	3-pin
ENERGY MANAGEMENT
Pump voltage	12 V
Pump current	350 mA
Fan voltage	12 V
Fan current	0.22 A
Fan power consumption	2.64 W
Pump power consumption	4.2 W
LED voltage	5 V
LED power consumption (pump)	2.55 W
LED power consumption (fan)	3.15 W
PACKAGING CONTENT
Package type	Box
Mounting kit	Yes
Screws included	Yes
Installation instruction	Yes
CPU bracket(s)	Yes
Number of nuts	8
PERFORMANCE
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Suitable location	Processor
Maximum airflow	72.04 cfm
Maximum air pressure	3.48 mmH2O
Pump motor speed	3400 RPM
Fan speed (max)	2400 RPM
Fan speed (min)	600 RPM
Bearing type	Hydro Dynamic Bearing (HDB)
Quantity per pack	1 pc(s)
Fan noise level (max)	38.71 dB
Pump noise level	21 dB
Pulse-width modulation (PWM) support	Yes
Pump connector	3-pin
WEIGHT & DIMENSIONS
Weight	1.79 kg
Radiator width	12 cm
Radiator depth	40.2 cm
Radiator height	2.7 cm
Tube length	41 cm
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Pump width	7.8 cm
Pump depth	8.9 cm
Pump height	5.3 cm
