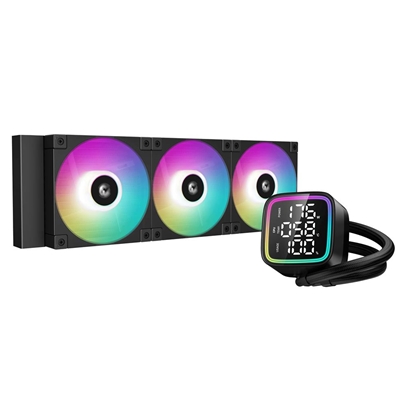

LD360
The new LD360 is a jump into the next evolution of DeepCool liquid coolers. Everything you love from DeepCool AIOs of the previous generation, but with the inclusion of a multi-line CPU status screen and a brand new GEN 5 pump! Clear up precious room on your desktop by moving the CPU monitoring software off your screen and onto the pump in your computer tower.

REAL-TIME CPU STATUS SCREEN
The status screen displays the power consumption, temperature, and usage of your system's CPU in real time. A high temperature warning indicator will flash when the CPU temperature exceeds the 85°C mark.

5TH GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the LD360 brings cooling modern power-hungry CPUs to the next level.

LARGE DISPLAY WITH ARGB HALOS
The large multiple data points display of the LD series is unmistakable, but the LD coolers also utilize a bright gradient ARGB double halo effect that encapsulates the premium aesthetics of the LD pump design: beautifully bright as well as being functional. The ARGB of the entire cooler can be easily synced to ARGB headers on compatible motherboards.

FINE TUNED FD12 ARGB FANS
Optimized FD12 ARGB PWM fans are included with the LD360 and have been fine-tuned to provide excellent cooling performance with a long-life Hydro Bearing. The LD360 includes two of these specialized FD12 fans, which have an easy-to-manage 8-pin cable that can be chained to each of the FD fans.

KEEPING IT SIMPLE
Full control of the real-time status screen is provided via a simple-to-use application. Once installed, the entire application is found in the Notification Center of the taskbar, where you can switch between languages and choose between Celsius and Fahrenheit. The only interface that will be required is a connection to a USB 2.0 header on the motherboard.

SLEEK, CLEAN, AND STRONG
The large glass status screen, gradient ARGB halos, and a satin black finish add the finishing touch.

ANTI-LEAK TECHNOLOGY
The LD liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

Specifications

Net Weight
1786g

Radiator Dimensions
402 x 120 x 27 mm (L x W x H)

Radiator Material
Aluminum

ube length
410 mm

Pump Dimensions
89 x 78 x 53 mm (L x W x H)

Pump Speed
3400 RPM±10%

Pump Noise
21 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.35 A

Pump Power Consumption
4.2 W

Fan Dimensions
120 x 120 x 25 mm (L x W x H)

Fan Speed
600~2400 RPM±10%

Fan Airflow
72.04 CFM

Fan Air Pressure
3.48 mmAq

Fan Noise
=38.71 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.22 A

Fan Power Consumption
2.64 W

LED Type
Addressable RGB LED

LED Connector
3-pin(+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.55 W(PUMP)/ 3.15 W(FAN x 3)

Display Type
LED Digital Display
