DeepCool LD240 Liquid CPU Cooler

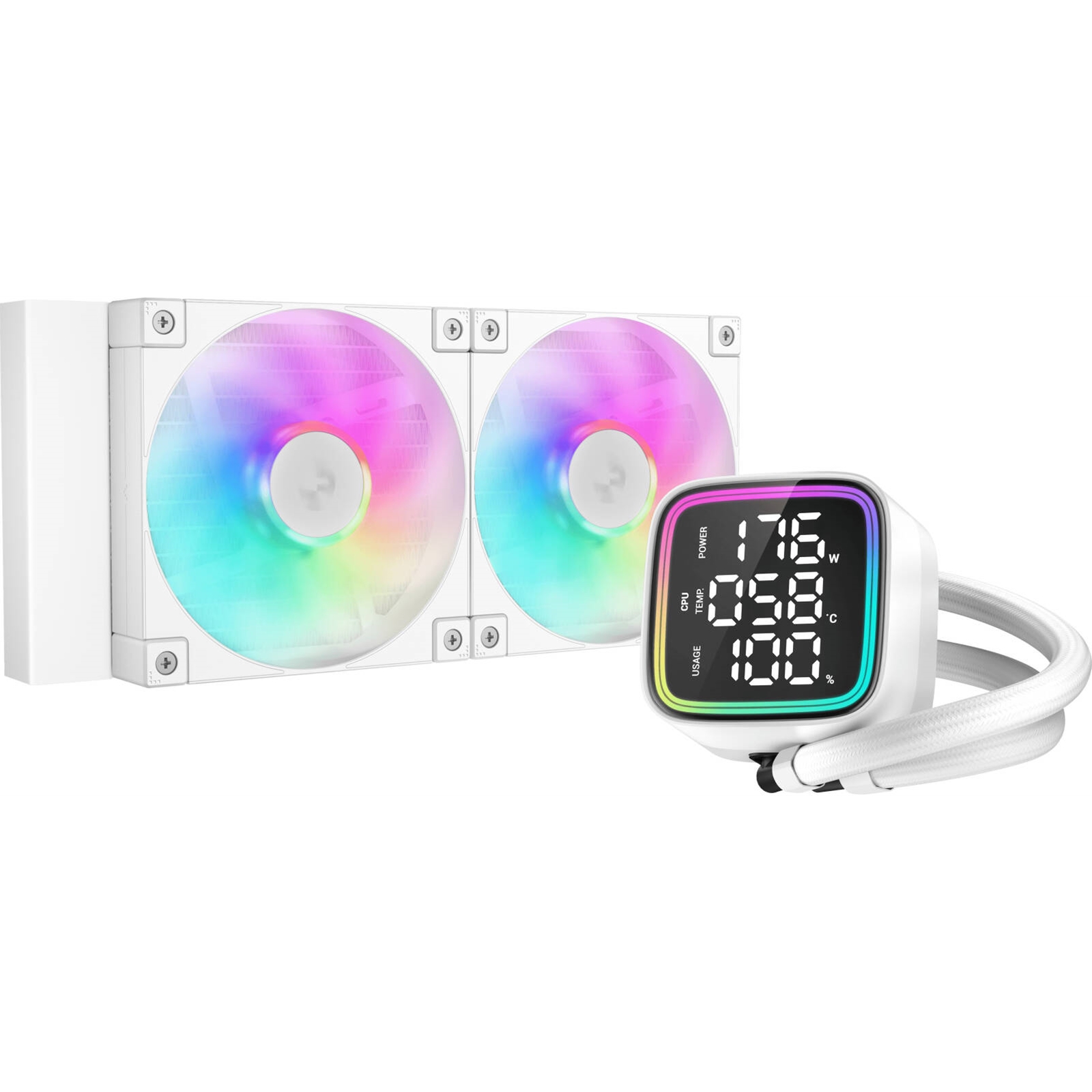

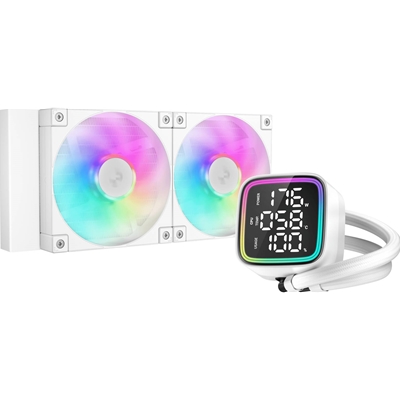

The DeepCool LD240 is a high-performance liquid CPU cooler designed to keep your system cool even under heavy loads. It features a 240mm radiator, dual 120mm ARGB fans, and a multi-line LED display that shows real-time CPU status, including power consumption, temperature, and usage. The cooler is equipped with DeepCool's 5th generation high-performance water pump, ensuring efficient cooling for power-hungry CPUs. Its sleek design and customizable ARGB lighting make it a stylish addition to any build.

Full Specification:

Model:
R-LD240-WHDMMN-G-1

Cooling Technology:
Liquid Cooler

Radiator Size:
240mm

Fan Type:
2x 120mm FD12 ARGB PWM Fans

Fan Speed:
Up to 2400 RPM

Airflow:
72.04 CFM

Pump Speed:
3400 RPM ±10%

Connection:
1 x 3-Pin ARGB
1 x 4-pin PWM

Pump Rated Voltage:
12 VDC

Pump Rated Current:
0.35 A

Radiator Dimensions:
282 x 120 x 27mm (L x W x H)

Pump Dimensions:
89 x 78 x 53mm (L x W x H)

Net Weight:
1476g

Supported Sockets:
Intel LGA1851/1700/1200/1151/1150/1155, AMD AM5/AM4

Display:
Multi-line LED Digital Display

Display Information:
Power Consumption, Temperature, CPU Usage

Warning Indicator:
High Temperature Warning (85°C)

Installation:
Compatible with Intel and AMD platforms, includes all necessary mounting hardware

Special Features:
Anti-Leak Technology, ARGB Sync, Hydro Bearing for Fans

Color:
White

Noise Level:
38.71 dB

Manufacturer's Website:

uk.deepcool.com

Warranty:

3 Year Return To Base Warranty

DESIGN
Product colour	White
Number of fans	2 fan(s)
Illumination colour	Multi
Display type	LED
Fan connector	4-pin
Radiator material	Aluminum
Illumination LED	Yes
LED connector type	3-pin
ENERGY MANAGEMENT
Pump voltage	12 V
Pump current	350 mA
Fan voltage	12 V
Fan current	0.22 A
Fan power consumption	2.64 W
Pump power consumption	4.2 W
LED voltage	5 V
LED power consumption (pump)	2.55 W
LED power consumption (fan)	3.15 W
PACKAGING CONTENT
Package type	Box
Mounting kit	Yes
Screws included	Yes
Installation instruction	Yes
CPU bracket(s)	Yes
Number of nuts	8
PERFORMANCE
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Suitable location	Processor
Maximum airflow	72.04 cfm
Maximum air pressure	3.48 mmH2O
Pump motor speed	3400 RPM
Fan speed (max)	2400 RPM
Fan speed (min)	600 RPM
Bearing type	Hydro Dynamic Bearing (HDB)
Quantity per pack	1 pc(s)
Fan noise level (max)	38.71 dB
Pulse-width modulation (PWM) support	Yes
Pump connector	3-pin
WEIGHT & DIMENSIONS
Weight	1.48 kg
Radiator width	12 cm
Radiator depth	28.2 cm
Radiator height	2.7 cm
Tube length	41 cm
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Pump width	7.8 cm
Pump depth	8.9 cm
Pump height	5.3 cm
