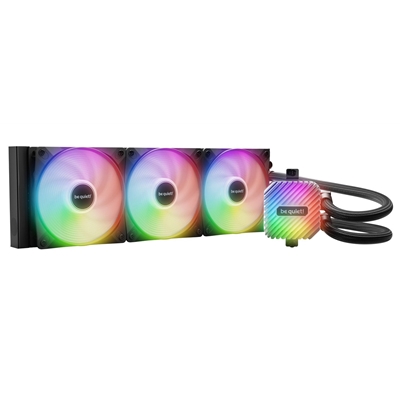

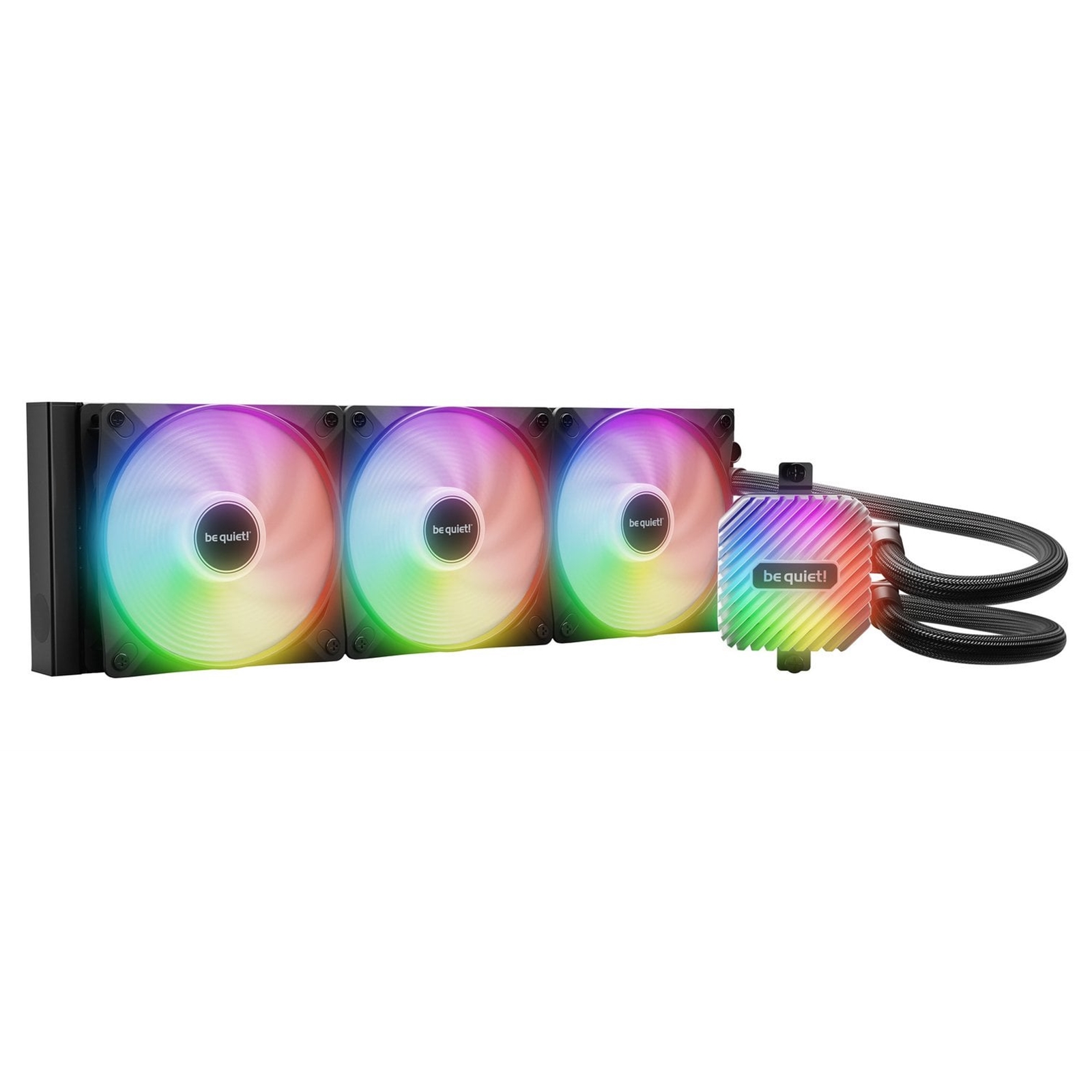

The be quiet! Light Loop 360mm AIO CPU Water Cooler is a high-performance all-in-one water cooling solution designed for enthusiasts with overclocked systems. It combines exceptional cooling capabilities with vibrant ARGB lighting effects, making it a visually stunning addition to any PC build. The cooler features a stylish cooling block with a unique diffuser, creating stunning visuals, and comes with up to three Light Wings LX 120mm PWM high-speed fans with 16 digital LEDs for colorful illumination.

Exceptional Cooling Performance: 360mm radiator and high-density fin stack for efficient heat dissipation.

Stylish Design: Unique cooling block with a diffuser for stunning ARGB lighting effects.

Quiet Operation: State-of-the-art pump with a progressive IC for minimal noise.

ARGB-PWM Hub: Synchronizes up to 6 ARGB components and PWM fans.

Compatibility: Supports Intel LGA 1700, AMD AM4, AM5, and other sockets.

Maintenance-Friendly: Easy-access refill port and included coolant bottle.

Specification
Model:
Light Loop 360mm

Color Option:
Black

Dimensions (Radiator, incl. fan):
397 x 120 x 52 mm

Dimensions (Cooling Block):
75 x 94 x 82 mm

Total Weight:
1.48 kg

Socket Compatibility (Intel):
1851 / 1700 / 1200 / 1150 / 1151 / 1155

Socket Compatibility (AMD):
AM5 / AM4

Noise Level (dB(A)) at 50% / 75% / 100% rpm:
17.2 / 29.1 / 36.8

Number of Fans:
3

Lighting Connector:
3 Pin 5V Addressable

Tube Length:
400 mm

Refill Port:
?

Pump Specifications
Pump Speed:
2900 rpm

Pump Adjustable:
1500 - 2900 rpm

Pump Connector:
4-pin PWM

Radiator Specifications
Dimensions (L x W x H):
397 x 120 x 27 mm

Radiator Material / Finish:
Aluminum / Black Spray Painted

Base Material / Finish:
Copper / Nickel Plated

Fan Specifications
Fan Model:
Light Wings LX 120mm PWM High-Speed

Fan Dimensions:
120 x 120 x 25 mm

Speed at 100% PWM:
2100 rpm

Airflow at 100% PWM / 12V:
61.8 CFM / 105.1 m3/h

Air Pressure at 100% PWM / 12V:
2.51 mm H2O

Bearing Technology:
Rifle

Motor Technology:
4-pole fan motor

Rated Voltage:
12V

Input Current:
0.17A

Safety Current:
0.45A

Input Power:
5.4W

Connector:
4-pin PWM

Cable Length:
500 mm

Lifespan (h / 25°C):
60,000

Accessories
Thermal Grease:
Included

Mounting Set:
Intel, AMD

Adapter Cables:

Bottle of Coolant (ml):
Included / 100

ARGB-PWM-Hub:
Included

Safety Certifications
Approvals:
CE, FCC, UKCA

Warranty (Years):
3

Article Number:
BW022

EAN Code:
4260052191132

Dimensions, Package (L x W x H):
448 x 205 x 137 mm

Gross Weight, Package:
2.6 kg

Pieces per Packaging Unit:
4

Dimensions, Shipping Box (L x W x H):
470 x 300 x 460 mm

Gross Weight, Shipping Box:
11.3 kg
