PURE LOOP 2 FX - 240mm
IMPRESSIVE LIGHTING, SUPERIOR COOLING

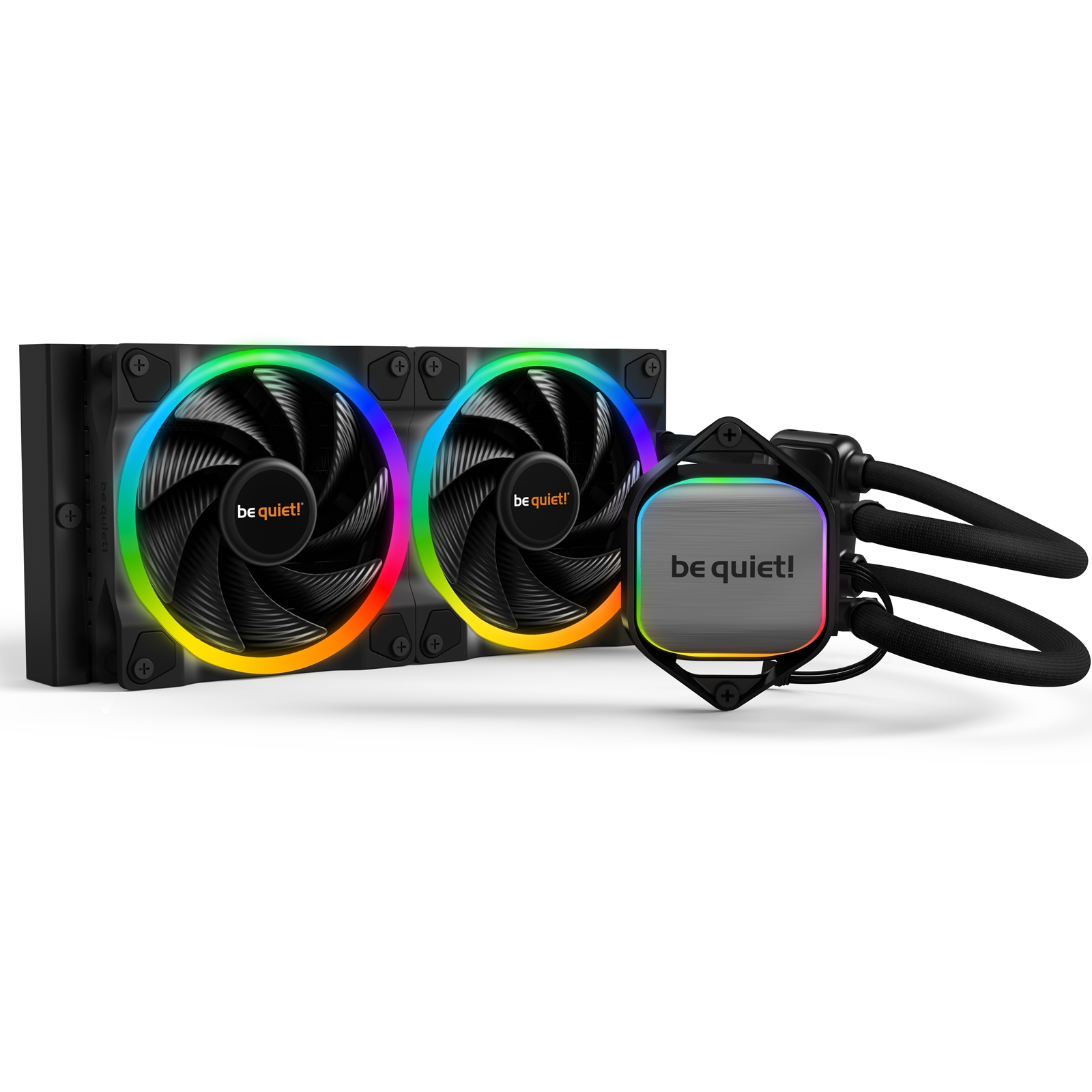

Pure Loop 2 FX 240mm is the very high-performing and silent All-in-One water cooling unit with impressive ARGB illumination.
- Very high cooling performance for all mainstream CPUs
- 2 Light Wings 120mm PWM high-speed fans offer equally high air pressure and vibrant ARGB illumination
- Doubly decoupled PWM pump for quiet operation and minimal vibration
- ARGB-PWM-Hub enables synchronization of up to 6 ARGB components and PWM fans
- Combination of ARGB illumination, all-black design and aluminum-style for unmistakable and stylish look
- Easy-to-access refill port and included coolant bottle guarantee a long lifespan
- 3-year manufacturer's warranty
VERY HIGH COOLING PERFORMANCE
Reliable cooling power for sophisticated applications
With Pure Loop 2 FX 240mm even demanding applications can be used reliably. A very high cooling power provides low temperatures even during periods of peak CPU performance. Pure Loop 2 FX 240mm is the water cooling solution of choice for all mainstream CPUs.
FANS DEVELOPED FOR RADIATORS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.6mm /H2O, Light Wings 120mm PWM high-speed is the best choice for Pure Loop 2 FX 240mm. The 9 airflow-optimized fan blades provide enough air pressure to make this fan perfect, even in demanding configurations.
IMPRESSIVE ILLUMINATION, NEAT DESIGN
Lots of illumination possibilities
2 Light Wings PWM high-speed offer ARGB lighting at the front and rear. 18 ARGB LEDs give you many opportunities to individualize your PC build. This and the illuminated cooling block make Pure Loop 2 FX 240mm a highlight in any system.
DOUBLY DECOUPLED PWM-PUMP
Adjustable and silent operation
The doubly decoupled PWM-pump runs smoothly and silent. Due to the PWM control the pump speed can be adjusted for silent as well as powerful operations. Thanks to the effective damping the pump causes even less noise and minimal vibration. This is the key to provide the well-known silent be quiet! operation.
ONE HUB, MANY POSSIBILITIES
Synchronization of up to 6 ARGB-components
The ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components. This allows the user to run all your cooling and lighting gear with just one PWM and one ARGB header on your motherboard. It can be positioned everywhere inside the case and by that supports a neat interior and cable management.
EASY TO REFILL
For a long lifespan
The refill port is easy to access which makes refilling safe and comfortable. The coolant bottle included in scope of delivery makes it easy to achieve a long lifespan.
General Data
Model: Pure Loop 2 FX 240mm
Dimensions radiator, incl. fan (H x W x D), (mm): 277 x 120 x 52
Dimensions Cooling block (H x W x D), (mm): -
Total weight (kg): 1.18
Socket compatibility Intel: 1851 / 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD: AM5 / AM4
Noise level (dB(A)) @ 25 % / 50% /100% rpm: 8.0 / 16.7 / 32.3
Number of fans: -
Lighting Connector: 3 Pin 5V Adressable
Tube length (mm): 400mm
Refill port: Yes
Pump Specifications
Pump speed (rpm): 5500
Pump adjustable: 4000 - 5500 rpm
Pump connector: 4-pin PWM
Radiator Specifications
Dimensions (H x W x D), (mm): 277 x 120 x 27
Radiator material / finish: aluminum / black spray painted
Base material / finish: copper / nickel plating
Fan Specifications
Fan model: 2x Light Wings 120mm PWM high-speed
Fan dimensions (mm): 120 x 120 x 25
Speed @ 100% PWM (rpm): 2500
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.45
Input power (W): 5.4
Connector: 4-pin PWM
Cable length (mm): 500
Lifespan (h / 25°C): 60,000
Accessories
Thermal grease (Type): Included
Mounting set: Intel, AMD
Adapter cables: -
Bottle of coolant (ml): Yes / 100
ARGB controller with SATA cable: -
SATA cable for ARGB controller: -
ARGB-PWM-Hub: Yes
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
Logistics Data
Article number: BW013
Dimensions, package (L x W x H), (mm): 321 x 140 x 240
Gross weight, package (kg): 2.13
Warranty:
3 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Illumination colour |
Multi |
| Base plate material |
Copper |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Illumination LED |
Y |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Fan voltage |
12 V |
| Fan current |
0.45 A |
| Fan power consumption |
5.4 W |
| LED voltage |
5 V |
LOGISTICS DATA
|
| Shipping (inner) case width |
29.6 cm |
| Shipping (inner) case length |
65.8 cm |
| Shipping (inner) case height |
50.8 cm |
| Shipping (inner) case gross weight |
18.6 kg |
| Products per shipping (inner) case |
8 pc(s) |
OTHER FEATURES
|
| Thermal grease |
Y |
PACKAGING CONTENT
|
| Manual |
Y |
| Mounting kit |
Y |
| Hub included |
Y |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 2011 (Socket R), LGA 1151 (Socket H4), LGA 2011-v3 (Socket R), LGA 1155 (Socket H2), LGA 2066, Socket AM4, LGA 1200 (Socket H5), Socket AM5, LGA 1700 |
| Suitable location |
Processor |
| Noise level (low speed) |
8 dB |
| Noise level (high speed) |
32.3 dB |
| Pump motor speed (max) |
5500 RPM |
| Pump motor speed |
5500 RPM |
| Pump motor speed (min) |
4000 RPM |
| Fan speed (max) |
2500 RPM |
| Quantity per pack |
1 pc(s) |
| Pulse-width modulation (PWM) support |
Y |
| Pump connector |
4-pin |
| Fan's mean time to failure (MTTF) |
60000 h |
| Fan bearing technology |
Rifle bearing |
WEIGHT & DIMENSIONS
|
| Weight |
1.18 kg |
| Package weight |
2.13 kg |
| Package depth |
321 mm |
| Package height |
240 mm |
| Package width |
140 mm |
| Radiator width |
12 cm |
| Radiator depth |
2.7 cm |
| Radiator height |
27.7 cm |
| Tube length |
40 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
