SILENT LOOP 2 - 120mm
SIGNIFICANT QUIET AND EXCEPTIONAL COOLING

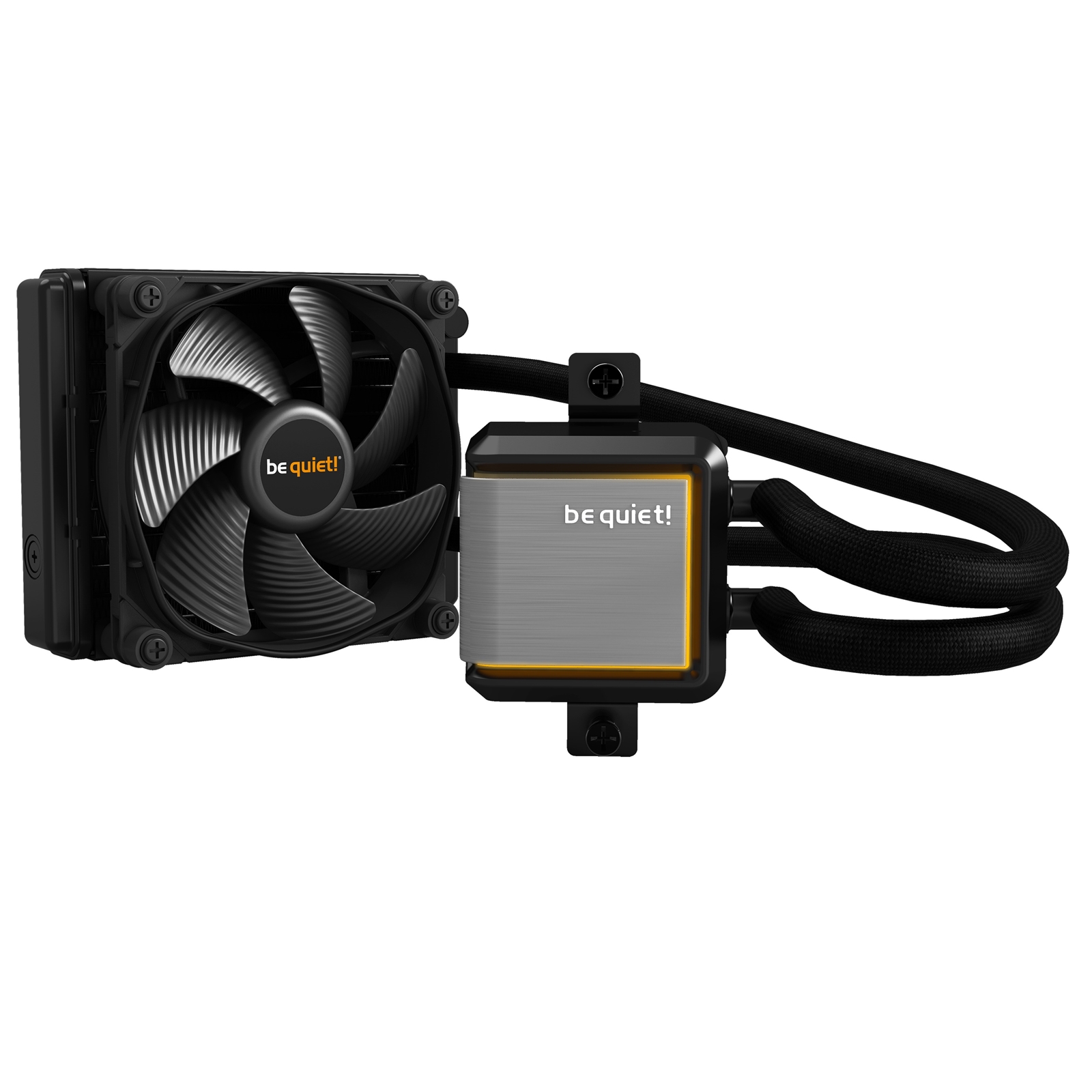

Silent Loop 2 120mm is the very high-performance and whisper-quiet all-in-one water cooling unit for demanding systems.
- Dampened and adjustable pump with 6-pole motor for very silent and very high-performance operation
- Powerful 3-chamber pump design significantly reduces turbulences and noise
- Silent Wings 3 PWM high-speed fan for high performance and whisper-quiet operation
- Cold plate with high density stack of fins for the highest cooling characteristics
- ARGB LEDs for lots of illumination options and great visual effects
- Easy-to-access refill port with coolant bottle included, ensuring a long lifespan
- 3-year manufacturer's warranty

SUPERIOR PUMP DESIGN
Whisper-quiet operation
Powerful pump with innovative 3-chamber design ensures the very high-performance Silent Loop 2 120mm is whisper-quiet at the same time. The second of its 3 chambers offers enough space for the coolant to spread out and thus reduces turbulences before it leaves the pump unit. In combination with the 6-pole 3-phase motor this results in a smooth and as a consequence silent operation.

WHISPER-QUIET OPERATION
Thanks to effective pump dampening
The massive dampening of the pump absorbs vibrations and as a consequence minimizes the resonances in the pump housing. This leads to significantly reduced noise and is key to the famously whisper-quiet be quiet! operation.

VERY HIGH COOLING PERFORMANCE
For low CPU temperatures
Silent Loop 2 120mm as an all-in-one water cooling unit provides enough cooling performance even for demanding applications when the CPU is pushed to its limit. The pump, radiator and fans are all optimized to work in perfect technical symbiosis.

BIG COLDPLATE
For all consumer platforms
Having a high density stack of fins on one side and a nickel coated plate on the other, the cold plate provides maximum cooling performance for the AiO. This makes Silent Loop 2 120mm the perfect water-cooling unit, especially for high-end processors and those with large surfaces. sTRX4 mounting is available separately.

SILENT WINGS 3 FAN
Impressive ratio of performance to noise
The Silent Wings 3 120mm PWM high-speed fan features 7 airflow-optimized fan blades, a 6-pole motor for less vibration and a durable fluid-dynamic bearing. The fan frame is equipped with funnel-shaped air inlets for extremely high air pressure, which makes the fan the perfect choice for radiators.

IMPRESSIVE ILLUMINATION
Lots of options and great visual effects
ARGB LEDs offer multiple colors and modes to individualize the look of the Silent Loop 2 120mm. The illumination can be synced with the ARGB adjustments of the motherboard. You can optionally use the wired ARGB remote controller to switch between modes and colors. The white illumination of be quiet! sign can be turned on and off for an external appearance of any taste.

EASY TO REFILL
Simplified refilling process for a long lifespan
An easy-to-access refill port makes for convenient handling, safe refilling and comfortable maintenance. The coolant bottle included ensures a long lifespan.

General Data
Model: Silent Loop 2 120mm
Dimensions radiator, incl. fan (H x W x D), (mm): 154 x 120 x 77
Dimensions Cooling block (H x W x D), (mm): -
Total weight (kg): 0.91
Socket compatibility Intel: 1851 / 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD: AM5 / AM4 / sTRX4,TR4(optional, mounting-kit (BZ008))
Noise level (dB(A)) @ 25 % / 50% /100% rpm: 16.6 / 19.4 / 36.4
Number of fans: -
Lighting Connector: 3-pin 5V Adressable
Tube length (mm): 400
Refill port: Yes

Pump Specifications
Pump speed (rpm): 2800
Pump adjustable: 9V - 12V
Pump connector: 3-pin

Radiator Specifications
Dimensions (H x W x D), (mm): 154 x 120 x 27
Radiator material / finish: Aluminum / Black spray painted
Base material / finish: Copper / Nickel plated

Fan Specifications
Fan model: 2x Silent Wings 3 120mm PWM high-speed
Fan dimensions (mm): 120 x 120 x 25
Speed @ 100% PWM (rpm): 2200
Bearing technology: FDB
Motor technology: 6-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.37
Input power (W): 1.92
Connector: 4-pin PWM
Cable length (mm): 500
Lifespan (h / 25°C): 300,000

Accessories
Thermal grease (Type): Included
Mounting set: Intel & AMD(optional, mounting-kit(BZ008) for sTRX4 / TR4)
Adapter cables: -
Bottle of coolant (ml): Yes / 100
ARGB controller with SATA cable: Yes
SATA cable for ARGB controller: Yes
ARGB-PWM-Hub: -
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW

Logistics Data
Article number: BW009
Dimensions, package (L x W x H), (mm): 307 x 217 x 137
Gross weight, package (kg): 1.66
