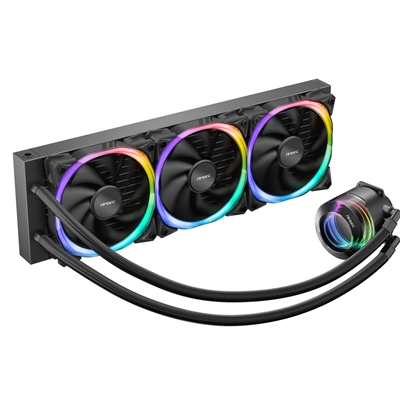

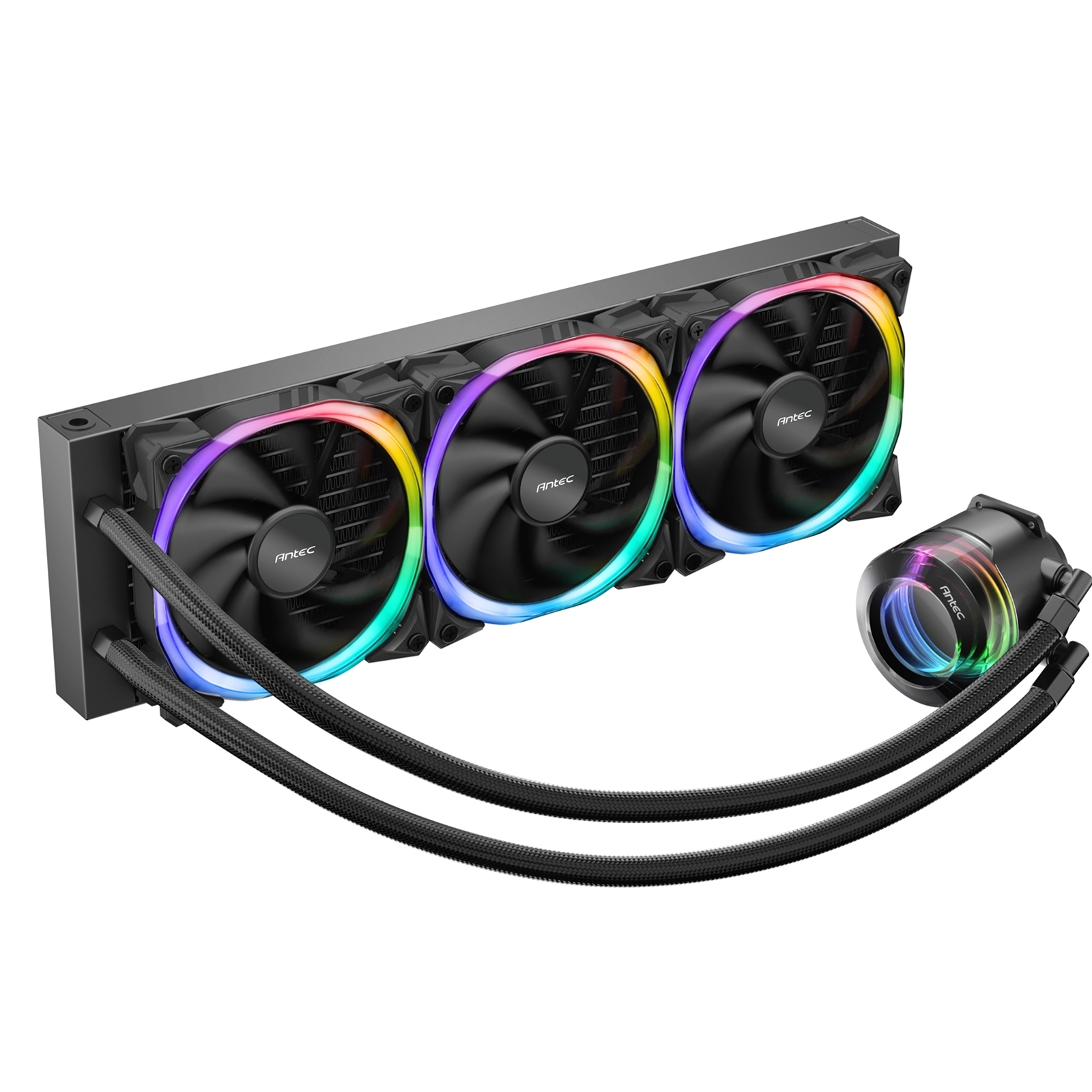

VORTEX 360 ARGB The Epoch-Making All-in-One ARGB CPU Liquid Cooler
Suspended Spiral Pump Head Design The suspended spiral pump head, inspired by the image of a vortex, provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump High Performance Cooling. Performance data tested with Vortex 360 on AMD Ryzen 5600x.
Massive Copper Base Plate Provides highly efficient cooling at all loads.
EPDM High-Density Tubing The EPDM high-density tubing is very durable, making for less loss of liquid.
Superior Fin Density 13 fins dissipate heat rapidly.
Antec Fusion PWM ARGB Fan The Vortex 360 ARGB uses the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame and 16 LEDs for harmonious lighting effects and powerful CPU cooling.
Speed:
600+/-200 - 2000+/-10% RPM
Airflow:
57.93 CFM (max)
Noise Level:
31.24 dB(A) (max)
Air Pressure:
2.11 mmH2O (max)
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
Lighting Effect Switch Connector:
Connect to the rest hub for LED control (as the Mode button)
Mode Control:
Long press for 3 seconds to switch to motherboard control, single press to switch back
ARGB Connector:
Connect to the motherboard for sync lighting effects
ARGB Hub:
Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs
SATA Connector:
Connect to the SATA connector of the power supply
CPU Socket Compatibility
AM3 / AM4 / TR4
LGA 115X / 1200 / 1700 / 20XX / 1851
Radiator Specifications
Dimensions:
394 x 120 x 27 mm
Material:
Aluminum
Pump Specifications
Dimensions:
67 x 48.5 mm
Rating Voltage:
DC 12 V
Minimum Startup Voltage:
5.0 V
Fan Speed:
2800+/-10% RPM
Rated Current:
0.25+/-20% A
Consumed Power:
3.0 W
Flow Rate:
1300 mL/min
Water Pressure:
1.4M
Operating Temperature:
-10°C ~ +60°C
Noise Level:
28 dB(A) max
Lifespan:
40,000 hours
Connector:
PUMP: 3-pin / LED: 3-pin
Warranty:
3 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
3 fan(s) |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Illumination LED |
Y |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Pump voltage |
12 V |
| Pump current |
250 mA |
| Fan voltage |
12 V |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Operating temperature (T-T) |
-10 - 60 °C |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4 |
| Suitable location |
Processor |
| Maximum airflow |
57.93 cfm |
| Pump motor speed |
2800 RPM |
| Fan speed (max) |
2000 RPM |
| Fan speed (min) |
600 RPM |
| Fan noise level (max) |
31.24 dB |
| Pump noise level |
28 dB |
| Pump connector |
3-pin |
WEIGHT & DIMENSIONS
|
| Radiator width |
39.7 cm |
| Radiator depth |
12 cm |
| Radiator height |
2.7 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
6.7 cm |
| Pump height |
4.85 cm |
